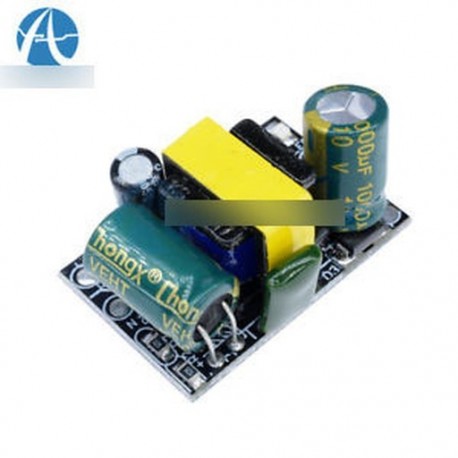

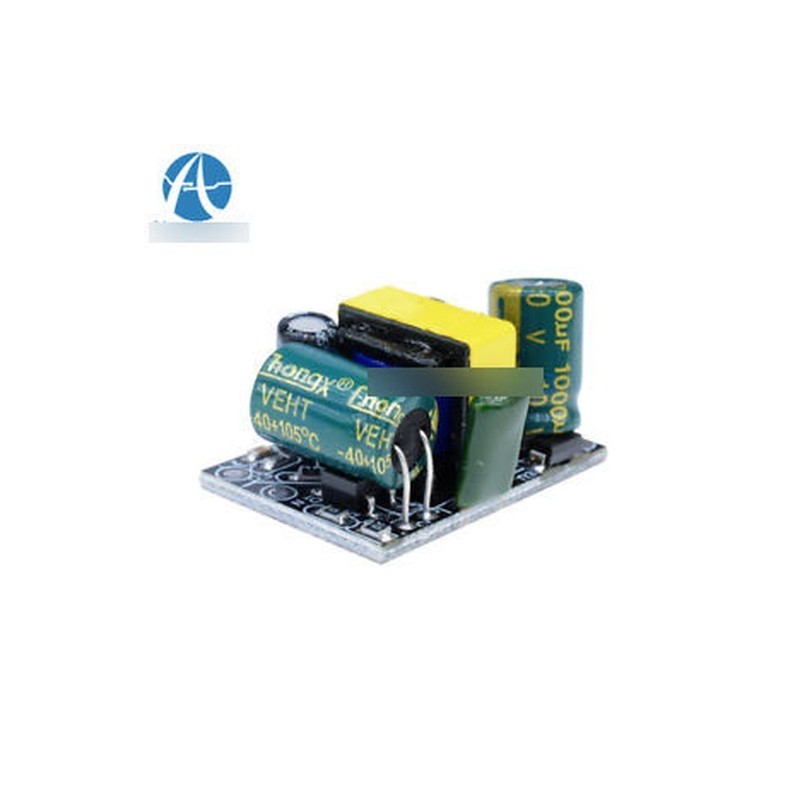

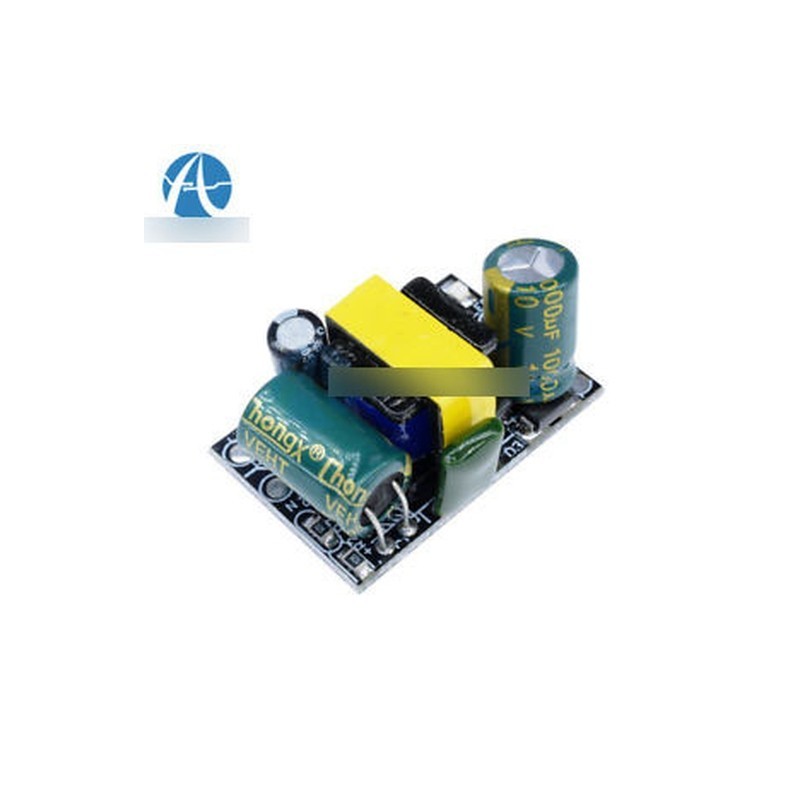

AC-DC 5V 700mA 3,5 W-os tápegység Buck átalakító Léptető modul Arduino-hoz

AC-DC 5V 700mA 3.5W Power Supply Buck Converter Step Down Module for ArduinoItem DescriptionStep Down Module
Condition: New
With temperature protection, over current protection and short circuit protection, high and low voltage isolation, AC85 ~ 265 v wide voltage input, ac/dc current , 431 precision voltage stability DC5V output
Input voltage: AC 85 ~ 265 v 50/60 hz or DC 100~ 370 v
Imput current: 0.0273A(AC110V) 0.014A(AC220V)
Input Inrush Current: 20A
Output voltage: DC 5V ( / - 0.2 V)
Output current 700 mA
Power 3.5 W
Operating temperature -20~60℃
Relative humidity 40-90% RH
Output 5V, min current 0a, max current 700mA, peak current: 800mA, output range: 4.8~5.2v, ripple wave: 60mV
Output power:0-4W(DC current)
Output efficiency: 80%
Switch machine overshoot: MAX 10%
Output voltage rise time: MAX 100MS
Output over voltage: 4.8-5.2V, recovery:Lock, restart after recovery
Output over power protection:YES ,recovery:Lock, restart after recovery
Short-circuit protection: YES, automatic recovery after problem solved
Temperature protection: YES,recovery:Lock, restart after recovery
Overcurrent protection: YES,recovery:Lock, restart after recovery
Size: 3 x 2 x1.8cm
Package Included:1PCS*AC-DC Power Supply Buck Converter Step Down Module Chip 5V 700mA 3.5W
