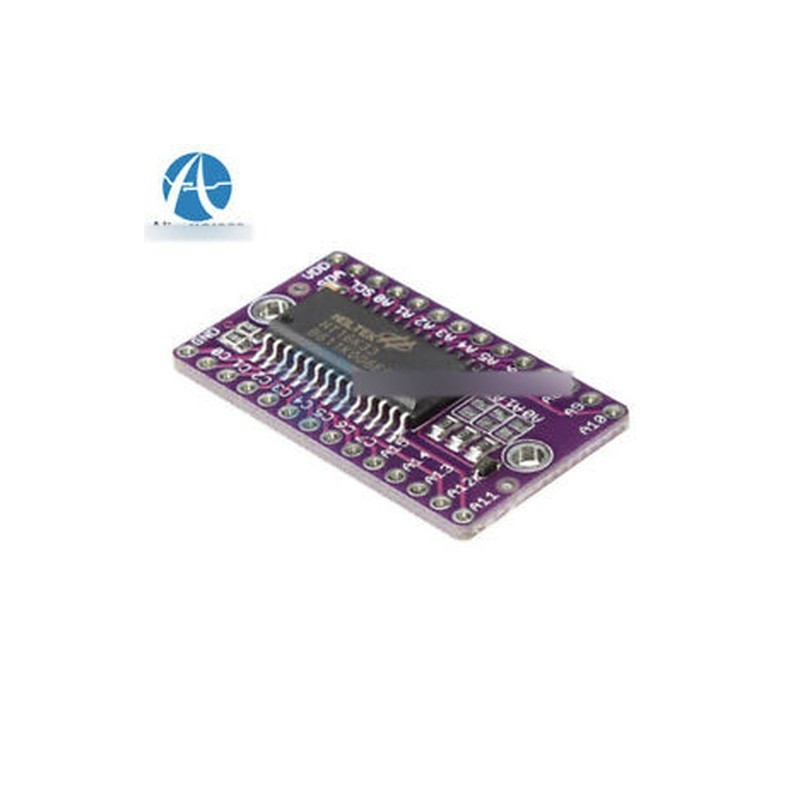

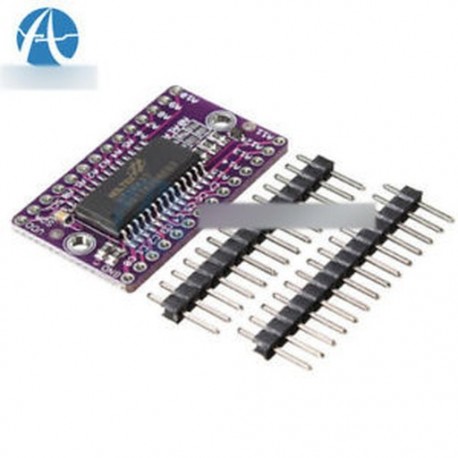

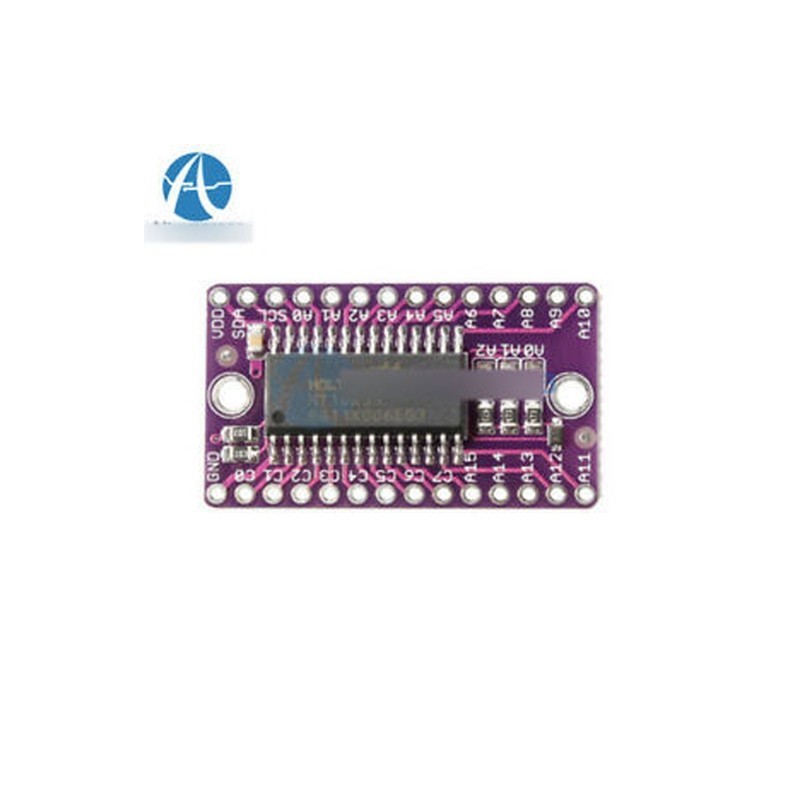

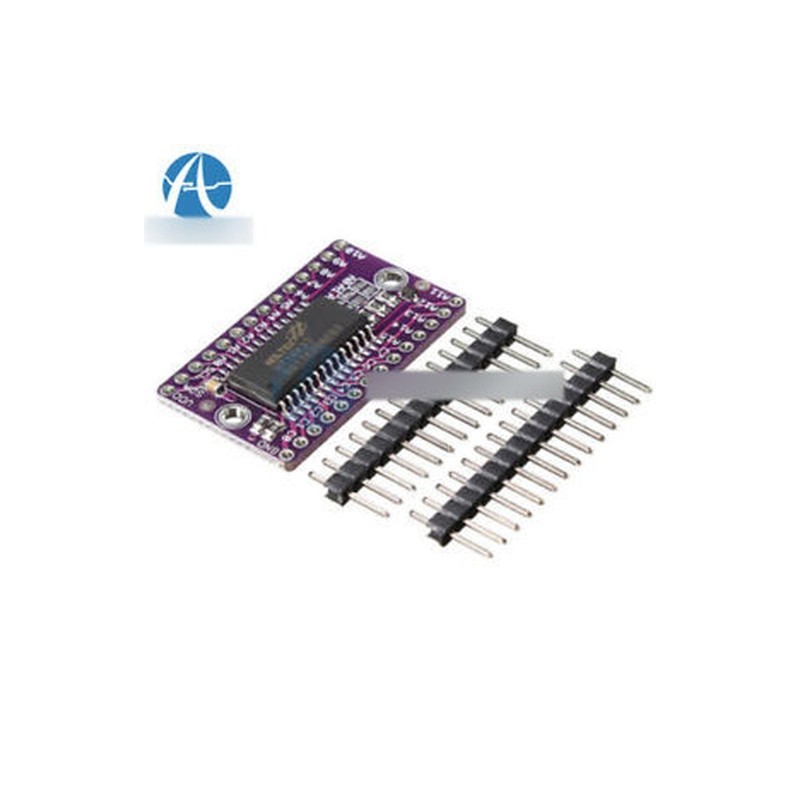

2PCS HT16K33 LED pont mátrix meghajtó vezérlő modul Arduino
401116363157
Új termék
2PCS HT16K33 LED Dot Matrix Drive Control Module Board for ArduinoBasic information:
The HT16K33 is a memory mapping and multi-function LED controller driver. The max. Display segment numbers in the device is 128 patterns (16 segments and 8 commons) with a 13*3 (MAX.) matrix key scan circuit. The software configuration features of the HT16K33 makes it suitable for multiple LED applications including LED modules and display subsystems. The HT16K33 is compatible with most microcontrollers and communicates via a two-line bidirectional I2C-bus.Features:
1. Operating voltage: 4.5V~5.5V
2. Integrated RC oscillator
3. I2C-bus interface
4. 16*8 bits RAM for display data storage
5. Max. 16 x 8 patterns, 16 segments and 8 commons
6. R/W address auto increment
7. Max. 13 x 3 matrix key scanning
8. 16-step dimming circuit
9. Selection of 20/24/28-pin SOP package typesApplications: 1. Industrial control indicators
2. Digital clocks, thermometers, counters, multimeters
3. Combo sets
4. VCR sets
5. Instrumentation readouts
6. Other consumer applications
7. LED Displays
The HT16K33 is a memory mapping and multi-function LED controller driver. The max. Display segment numbers in the device is 128 patterns (16 segments and 8 commons) with a 13*3 (MAX.) matrix key scan circuit. The software configuration features of the HT16K33 makes it suitable for multiple LED applications including LED modules and display subsystems. The HT16K33 is compatible with most microcontrollers and communicates via a two-line bidirectional I2C-bus.Features:
1. Operating voltage: 4.5V~5.5V
2. Integrated RC oscillator
3. I2C-bus interface
4. 16*8 bits RAM for display data storage
5. Max. 16 x 8 patterns, 16 segments and 8 commons
6. R/W address auto increment
7. Max. 13 x 3 matrix key scanning
8. 16-step dimming circuit
9. Selection of 20/24/28-pin SOP package typesApplications: 1. Industrial control indicators
2. Digital clocks, thermometers, counters, multimeters
3. Combo sets
4. VCR sets
5. Instrumentation readouts
6. Other consumer applications
7. LED Displays
