280W-os lemenő modul - XL4016 8 / 9A 200 / 280W Buck Converter DC 7V / 40V - 1,2V / 35V Léptető tápegység

A cím elején szereplő szín/minta/méret/típus kerül kiszállításra!

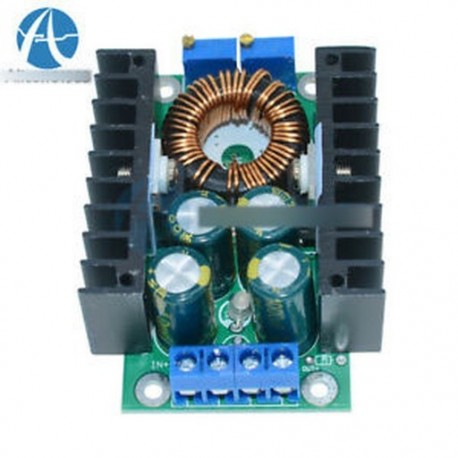

XL4016 8/9A 200/280W Buck Converter DC 7V/40V to 1.2V/35V Step Down Power Module280W Step Down Buck Converter 7-40V To 1.2-35V Power module XL4016 Features:
100% brand new and high quality
Use a dedicated benchmark IC, and high-precision current sensing resistor, can make more stable constant current
High output current, the max output current can reach 9 A.
Low output ripple , high frequency capacitor reduces output ripple.
Suitable for LED driver. Specification:
Material: PCB board and electronic component
Color: as the pic shows
Input voltage 7-40V (with constant 5-40V)
The output voltage (1.2-35V)
Maximum output current 9A
Maximum power 280W
Frequency 180KHZ
Size: Approx. 2.55*1.88*0.94inch / 6.5*4.8*2.4cm(Length*width*thickness)Package content:
1PCS DC CC 8A 9A 280W Step Down Buck Converter 7-40V To 1.2-35V XL4016 Power module

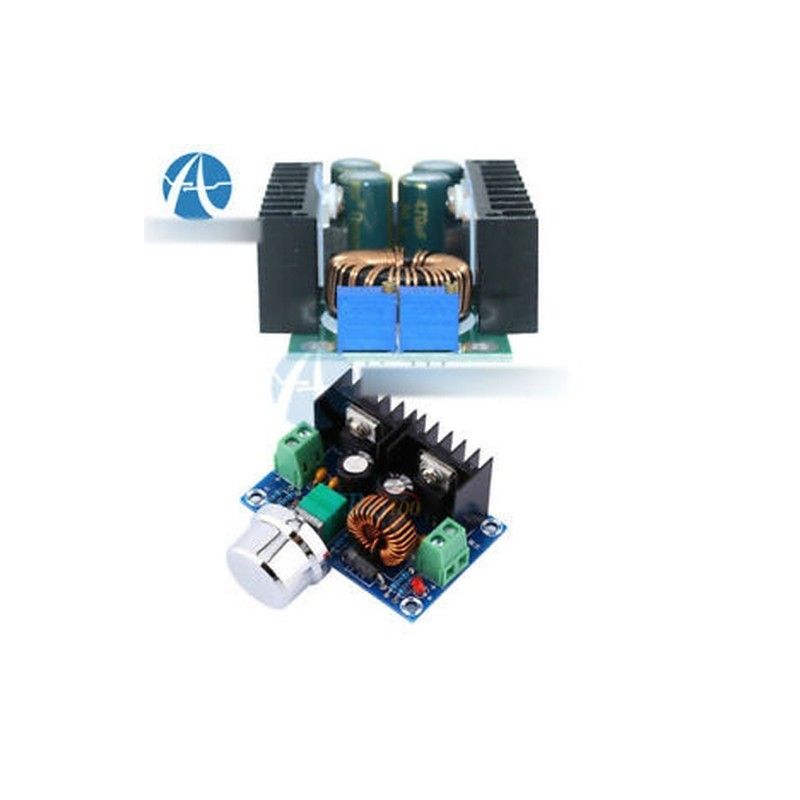

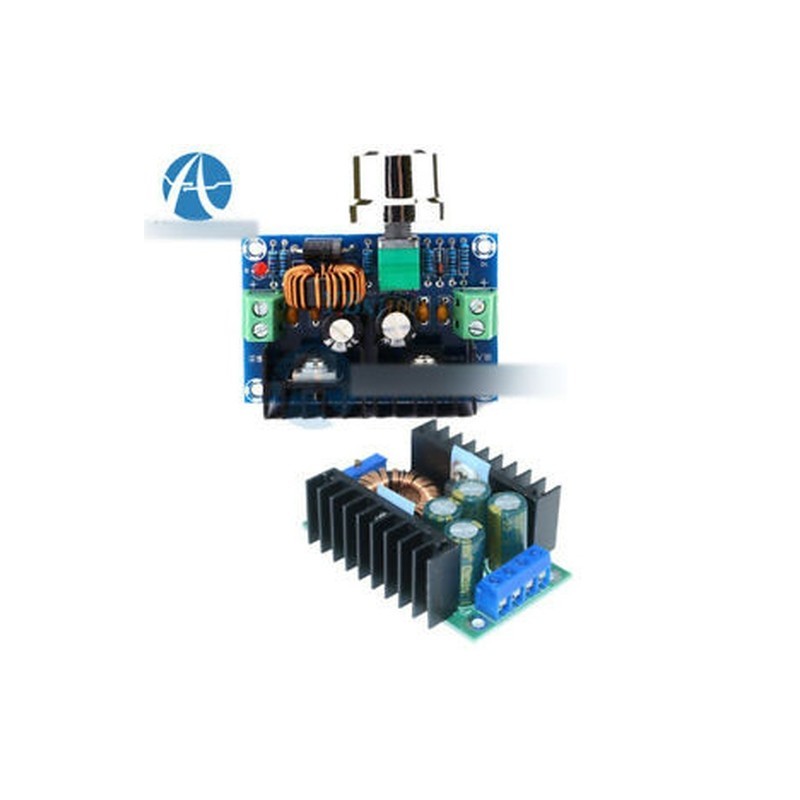

100W 1.2V-36V 8A Step-Down Voltage Power XL4016 ModuleSpecification:Product name: DC step-down module Converter
Voltage regulating mode: PWM modulation
Input voltage: DC4-40V
Output voltage: DC1.25-36V
Max output current: 8A (more than 5A for long time use,need Fan if over 5A)
Max power: 200W
Conversion efficiency: 94%
Switching frequency: 180KHZ
Dimensions: 61*41*27mmChip: switching regulator Regulating chip XL4016 with Over current protection, Over temperature protection,Short circuit protectionWhen reach maximum output current 8A, need to add fan. Long term work recommended about 5APanel Mounting:
1. Drill holes in the Panel 7mm
2. Extended potentiometer handle
3. Lock screw sleeve upper knobPackage Included:

1 x DC step down voltage power module
