> >>15A 400W MOS FET trigger kapcsoló meghajtó modul PWM szabályozó vezérlőpult
Alacsonyabb ár! 15A 400W MOS FET trigger kapcsoló meghajtó modul PWM szabályozó vezérlőpult Nagyobb
Előző Következő

15A 400W MOS FET trigger kapcsoló meghajtó modul PWM szabályozó vezérlőpult

201662448218

Új termék

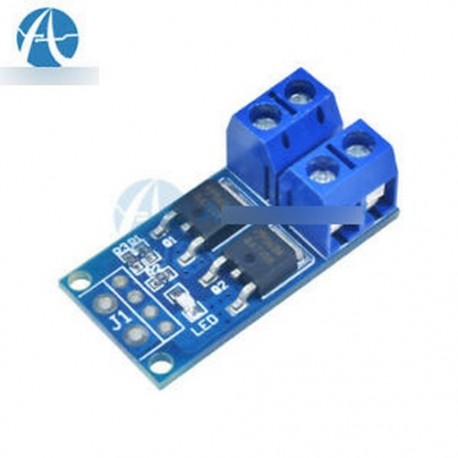

15A 400W MOS FET Trigger Switch Drive Module PWM Regulator Control Panel100% brand new and high quality
Material: Electrical components
Color: See pictures
Module Highlights:
1. The use of imported dual-MOS parallel active output, lower resistance, more current, strong power at room temperature, 15A, 400W, to meet the most use of the equipment
2. Wide voltage, the perfect support for PWM
3. Easily control high power devices
Product specifications and applications:
1: Operating Voltage: DC 5V - 36V;
2: The trigger source: digital high-low (DC3.3V - 20V), can be connected microcontroller IO port, PLC interfaces,
DC power, you can access the PWM signal, the signal frequency 0--20KHZ perfect support.
3: output capacity: DC DC 5V - 36V, at room temperature, continuous current 15A, power 400W! Lower auxiliary
cooling conditions, the maximum current up to 30A.
4: Applications: You can control the output of power equipment, motors, light bulbs, LED lights, DC motors, micro-pumps,
solenoid valves, etc., you can enter
PWM, motor speed control, lamp brightness.
5: Availability: unlimited switch; Operating temperature: -40-85 ;
Size: See the picture
Quantity:1Pc
No retail package
Note: Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!!Package Included: 1 x 15A 400W High-power MOS FET Trigger Switch Drive Module PWM Regulator Control Panel

Bővebb leírás

-18 / 174 / Gyorsan Fogyó termék

145 Ft‎

-50%

289 Ft‎

Hozzáadás a kívánságlistához

Egyéb infó

15A 400W MOS FET Trigger Switch Drive Module PWM Regulator Control Panel100% brand new and high quality
Material: Electrical components
Color: See pictures
Module Highlights:
1. The use of imported dual-MOS parallel active output, lower resistance, more current, strong power at room temperature, 15A, 400W, to meet the most use of the equipment
2. Wide voltage, the perfect support for PWM
3. Easily control high power devices
Product specifications and applications:
1: Operating Voltage: DC 5V - 36V;
2: The trigger source: digital high-low (DC3.3V - 20V), can be connected microcontroller IO port, PLC interfaces,
DC power, you can access the PWM signal, the signal frequency 0--20KHZ perfect support.
3: output capacity: DC DC 5V - 36V, at room temperature, continuous current 15A, power 400W! Lower auxiliary
cooling conditions, the maximum current up to 30A.
4: Applications: You can control the output of power equipment, motors, light bulbs, LED lights, DC motors, micro-pumps,
solenoid valves, etc., you can enter
PWM, motor speed control, lamp brightness.
5: Availability: unlimited switch; Operating temperature: -40-85 ;
Size: See the picture
Quantity:1Pc
No retail package
Note: Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!!Package Included: 1 x 15A 400W High-power MOS FET Trigger Switch Drive Module PWM Regulator Control Panel
201662448218 - ali110 (280)
