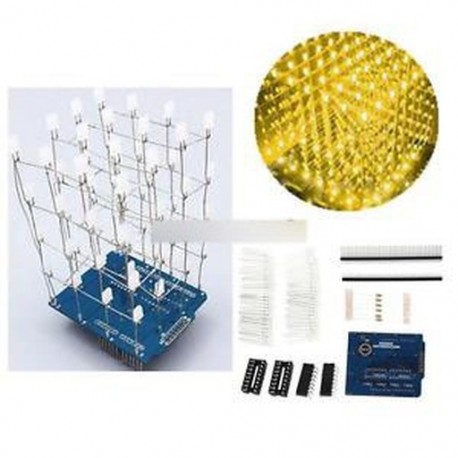

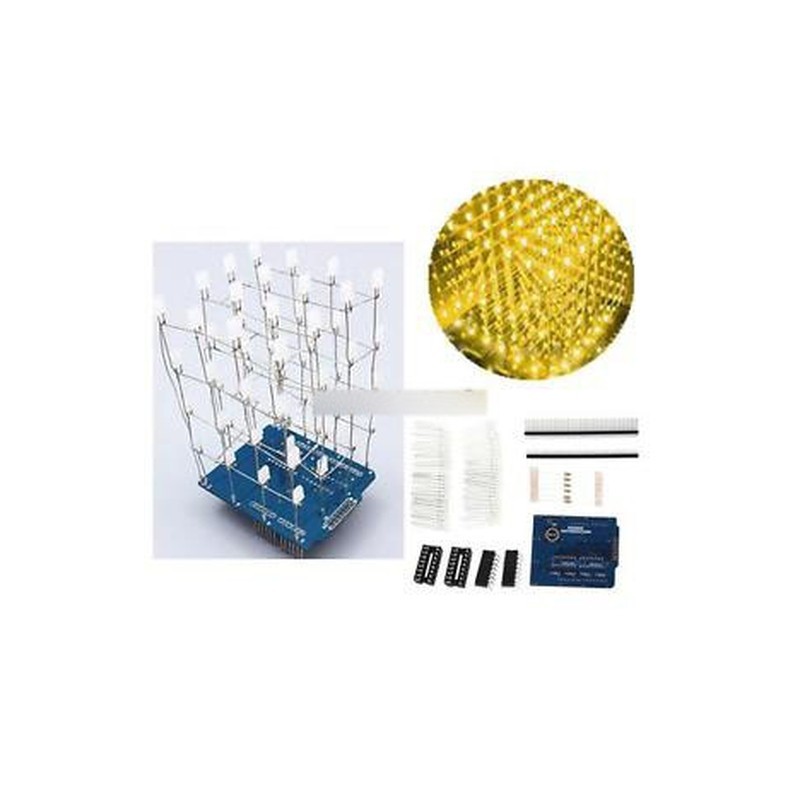

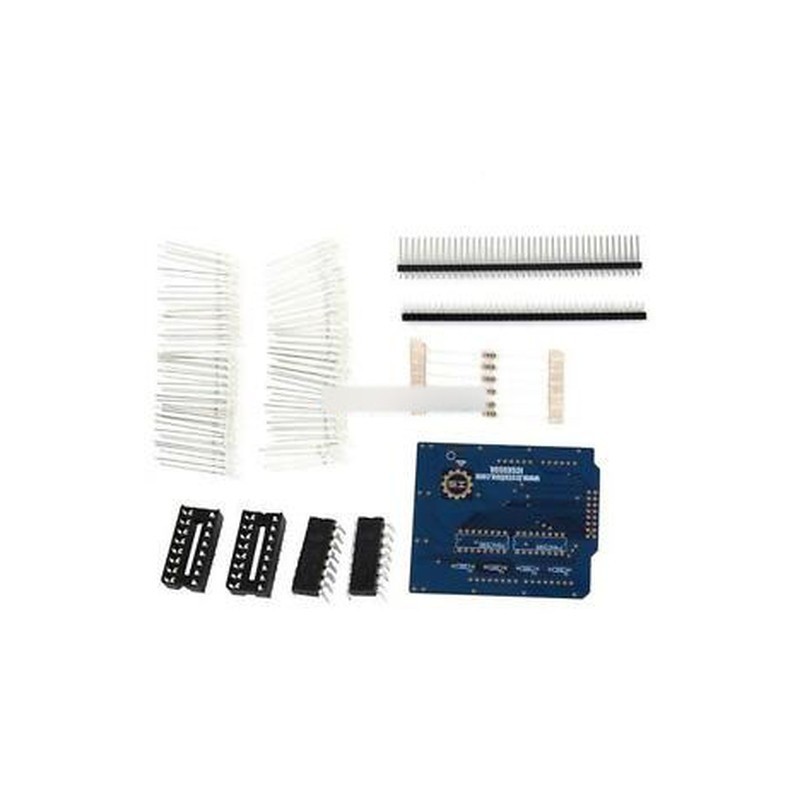

DIY Kit 4X4X4 Light Cube Kit Yellowe Arduino shield LED Precise4x4x4 Light Cube kit uses 64 cuboid LED,and controlled by Arduino. Expansion board uses two 74HC595 shift register chips, using eight I/Os can light the 4x4x4 Light Cube,it’s hardware resources needed is less than other 4x4x4 light cubic expansion board(needs 20 I/Os to control).1. Circuit Description
The display part of 4x4x4 Light Cube kit consists of 64 cuboid LED,uses two 74HC595shift register chip to control LED anode, the 4 I/O ports of Arduino controls 4 common cathodes of LED.2. Electrical parameters
Control module:arduino control board
PCB size:61*74mm
LED color:YellowAttention:
1).There are round head LED in our store, if you need it, please contact us.
2).This kit is 4x4x4 light cubic expansion board,without arduino control chip or control module.
3).Provide with arduino library,but there has less display effects,if you need more effects,you need to compile by yourself.3. Schematic diagram
4. Mechanical drawing
5. Module description
The 0~15 slot of Diagram is used for inserting LED anode; D16~D19 slot is used for inserting the LED cathode.
Expansion board and Arduino control pins.
74HC595 pin arduino
SH 0
ST 1
OE 2
DS 3
D16 4
D17 5
D18 6
D19 76. Components list
