Kék (Mini) készletek - PN532 NFC RFID olvasó / író vezérlő pajzskészlet Arduino PN532 piros / kék U

A cím elején szereplő szín/minta/méret/típus kerül kiszállításra!
PN532 NFC RFID Reader/Writer Controller Shield KITS For Arduino PN532 Red/Blue U
Blue(Mini) PN532 NFC RFID Reader/Writer Controller Shield KITS We've taken our popular PN532 breakout board and turned it into a
shield - the perfect tool for any 13.56MHz RFID or NFC application.
The mini NFC shield uses the PN532 chip-set (the most popular NFC chip on the market)
and is what is embedded in pretty much every phone or device that does NFC.
This chipset is very powerful, and can pretty much do it all, such as read and write to tags and cards,
communicate with phones (say for payment processing), and 'act' like a NFC tag.
While the controller has many capabilities, our Arduino library currently only supports
reading/writing tags, and does not support phone-to-shield communication,
tag emulation (which requires an external 'secure element' only available from NXP)
or other more advanced features at this time.
NFC (Near Field Communications) is a way for two devices very close to each other
to communicate. Sort of like a very short range bluetooth that doesn't require authentication.
It is an extension of RFID, so anything you can do with RFID you can do with NFC.Because it can read and write tags, you can always just use this for RFID-tag projects.
We carry a few different tags that work great with this chip.
It can also work with any other NFC/RFID Type 1 thru 4 tag (and of course all the other NXP type tags)The mini shield was designed by RF engineers using the best test equipment to create
a layout and antenna with 5cm range, the maximum range possible using the 13.56MHz technology.
You can easily attach the shield behind a plastic plate with standoffs and still read cards through a (non-metal) barrier.This shield is designed to use I2C or SPI communication protocols. SPI is the default,
It is also easy to change the shield over to SPI where you can use any 4 digital pins by
shorting two solder jumpers on the top of the PCB. Compatible with any "classic" Arduino - NG, Diecimilla,
Duemilanove, UNO - as well as Mega R3 or later. For using the I2C interface with Mega R2 or earlier,

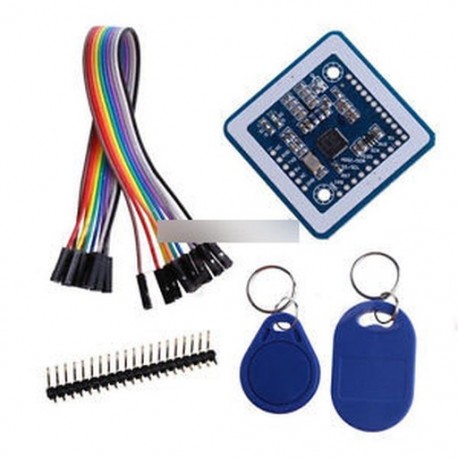

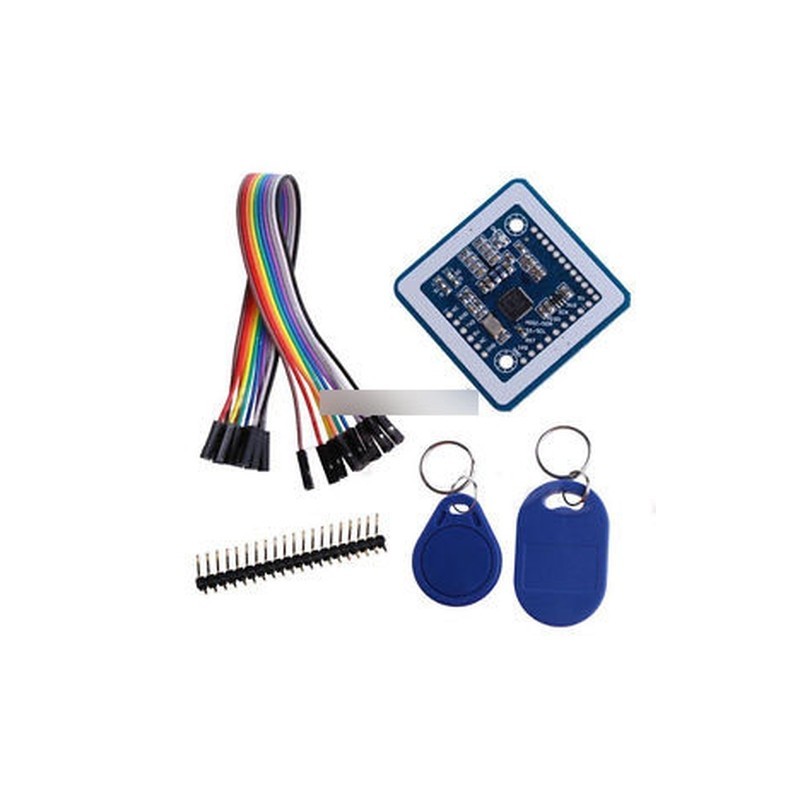

two wires must be soldered as the I2C pins are in a different location on earlier Megas.Package Included:

1PCS*PN532 NFC RFID Module

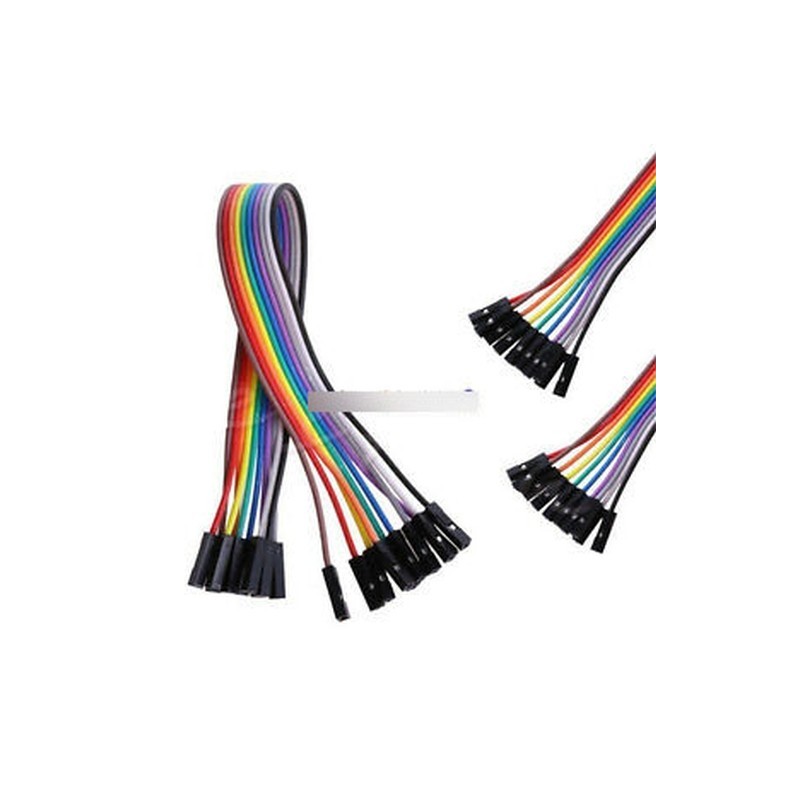

1PCS*2.54mm spacing 4pin Cable

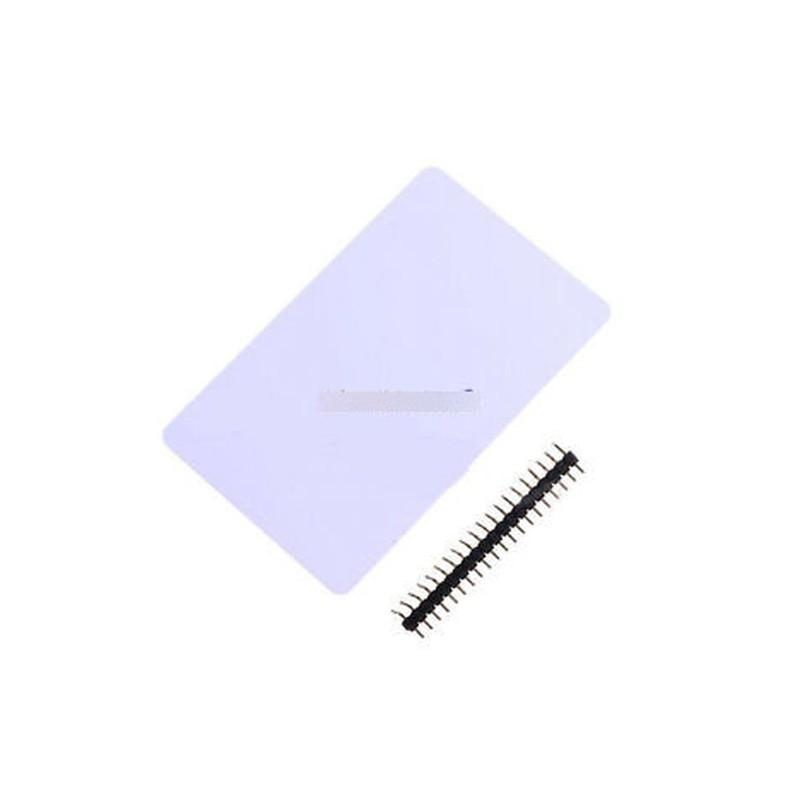

1PCS* One S50 White Card
1PCS*One S50 Key Card
1PCS*12P bended male pins Red PN532 NFC RFID Reader/Writer Controller Shield KITS

NFC is a popular technology in recent years. We often heard this work
while smartphone company such as Samsung or HTC introduces their latest high-end phones.
Almost all the high-end phone in the market support NFC.Near field communication (NFC)is a set of standards for smartphones and similar
devices to establish radio communication with each other by touching them together
or bringing them into close proximity, usually no more than a few centimeters.For electronics geeks, we also want to use NFC technology to make our own things.
So we build this NFC RFID module. This module is built around NXP PN532.
NXP PN532 is very popular in NFC area. And the company offers much technology document to help developers.
We developed this module based on the official document. And to make things easier, we also build library for this module.We almost break out all the IO pins of NXP532 on this module. Users could easily connect and play.
On this module, I2C is the data Interface by default. With ourArduino Sensor Shield,
it is very easy to plug and play. However, if users want to use other interface such as UART or SPI,
this module also makes it easy to break out those pins.
Feature :1、Gilt PCB and Small dimension and easy to embed into your project
2、Support I2C、SPI and HSU (High Speed UART), Change between those modes
3、Support RFID reading and writing
SupportP2P communication with peers
Support NFC with Android phone
4、Typical Operating Distance have been updated to 5cm~7cm reading distance
5、Work in NFC Mode or RFID reader/writer Mode
6、RFID reader/writer supports:1) 1k, 4k, Ultralight, and DesFire cards
2) ISO/IEC 14443-4 cards such as CD97BX, CD light, Desfire, P5CN072 (SMX)
3) Innovision Jewel cards such as IRT5001 card
4) FeliCa cards such as RCS_860 and RCS_854
7、Plug and play, Arduino compatible
8、Built in PCB Antenna, with 4cm~6cm communication distance
9、On-board level shifter, Standard 5V TTL for I2C and UART, 3.3V TTL SPI
10、Work as RFID reader/writer
11、Work as 1443-A card or a virtual card
12、Exchange data with other NFC devices such as smartphoneInterface :The version 3 can support I2C、SPI and HSU (High Speed UART), there is a switch can help you to change interface between those modes easily.Hardware Connection :If you have Sensor Shield, you could plug in and play.And you can finish connection with Arduino by hand :
Arduino GND to PN532 Module GND
Arduino 5V to PN532 Module VCC
Arduino SDA to PN532 Module SDA
Arduino SCL to PN532 Module SCLDimension :Application :Here we introduce 3 basic example of this module.
1) Read/write RFID card
As basic function, this module could read and write RFID card. Various cards could be supported.
We also supply libraries for Arduino.2) P2P communicationTwo PN532 modules could communicate with each other wirelessly.3) NFC with Andriod Phone
The basic communication stamp with Andriod Phone (NFC supported) is finished. Currently we could put an URL to Android phone and let it visit a webpage.
Document DownloadPN532 NFC Module Manual
Package Included:
1 x 1PCS*PN532 NFC RFID Module
1x 2.54mm spacing 4pin Cable
1x One S50 White Card
1x One S50 Key Card
1x12P bended male pinsPN532 NFC Precise RFID IC Card Reader Module 13.56MHz for Arduino Raspberry PI
ITEAD PN532 NFC module, as its name implies, is based on PN532 chip and used for 13.56MHz near field communication. The module is equipped with onboard antenna, thus no external antenna coil is needed. It is compatible with SPI, IIC and UART interface for communication. With NFC library support for Arduino and Raspberry Pi offered by us, it is quite convenient for development of products with NFC functions.1. Longest effective communication distance of 3 cm
2. Supports switching of SPI, IIC and UART interface.
3. Can be used for 13.56M non-contact communication
4. Compatible with ISO14443 Type A and Type B standardsIC:NXP PN532
Operating Voltage:3.3V
Power Supply Voltage:3.3~5.5V
Max Supply Current:150mA
Working Current(Standby Mode):100mA
Working Current(Write Mode):120mA
Working Current(Read Mode):120mA
Indicator:PWR
Interface:SPI Interface, Std Raspberry Pi 20pins InterfacePackage Included:1 x PN532 NFC Precise RFID IC Card Reader Module 13.56MHz for Arduino Raspberry PI
