CP2112 hibakereső kártya USB - SMBus I2C kommunikációs modul 2.0 MicroUSB 2112 kiértékelő készlet CCS811 érzékelő

CP2112 hibakereső kártya USB - SMBus I2C kommunikációs modul 2.0 MicroUSB 2112 kiértékelő készlet CCS811 érzékelő modulhoz
CP2112 Debug Board USB to SMBus I2C Communication Module 2.0 MicroUSB 2112 Evaluation Kit for CCS811 Sensor Module
The CP2112's highly integrated USB-to-SMBus bridge controller integrates a USB 2.0 full-speed function controller, USB transceiver oscillator and eight GPIO pins. All customization and configuration options can be selected through a simple GUI-based configurator. Standard HID class devices do not require the development of complex firmware and drivers. The CP2112 device enables fast USB connectivity with minimal development effort.
Parameters: USB bus power supply: 4.0 to 5.25V
Self-powered: 3.0 to 3.6V
I/O voltage: 1.8V to VDD
Working environment temperature: -40 ° C ~ 85 ° C
On-chip power-on reset circuit, on-chip voltage regulator: 3.45 V output
Compliant with USB specification 2.0 standard; full speed (12Mbps)
USB suspend status via SUSPEND and /SUSPEND pins
Integrated 194-byte one-time programmable ROM for storing customizable product information 512-byte SMBus data buffer, configurable clock speed device address 7-bit value is the slave address of CP2112 Windows, Mac, and Linux HID to SMBuslibraries API for rapid application development, open access interface specifications. 8 GPIOs can be configured as input/output and open drain/push-pull, configurable clock output for external devices 48MHz to 94kHz, switching LEDs during read/write SMBus

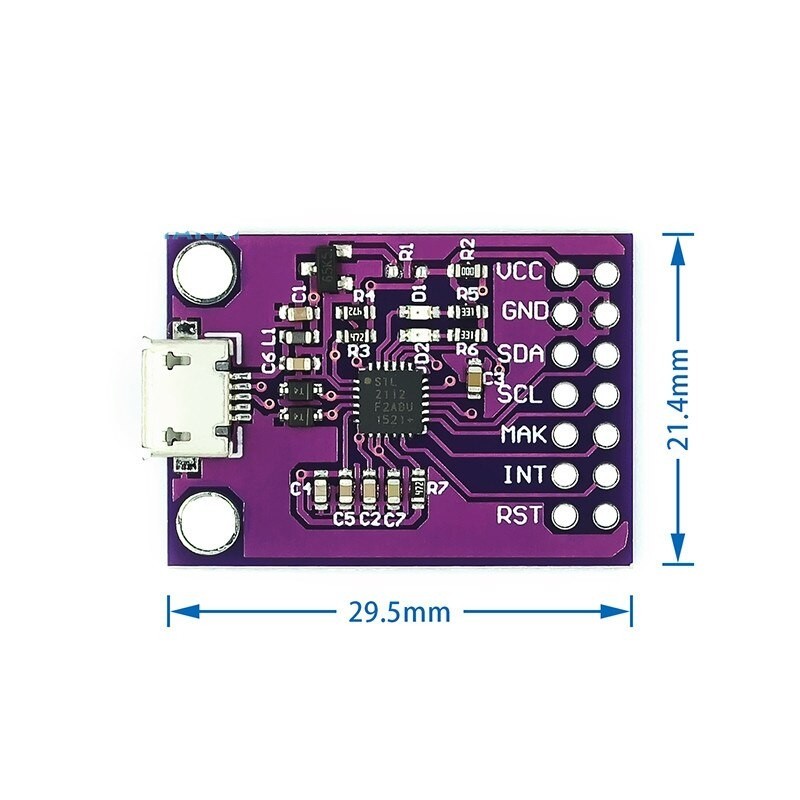

Module size: 29.5mm*21.3mm, with two M3 mounting holes, one MicroUSB female port
Application areas: portable controllers, USB dongle, data logging
