2PCS IC 2262/2272 4CH kulcs 315MHZVezeték nélküli távirányító vevő modul Arduino

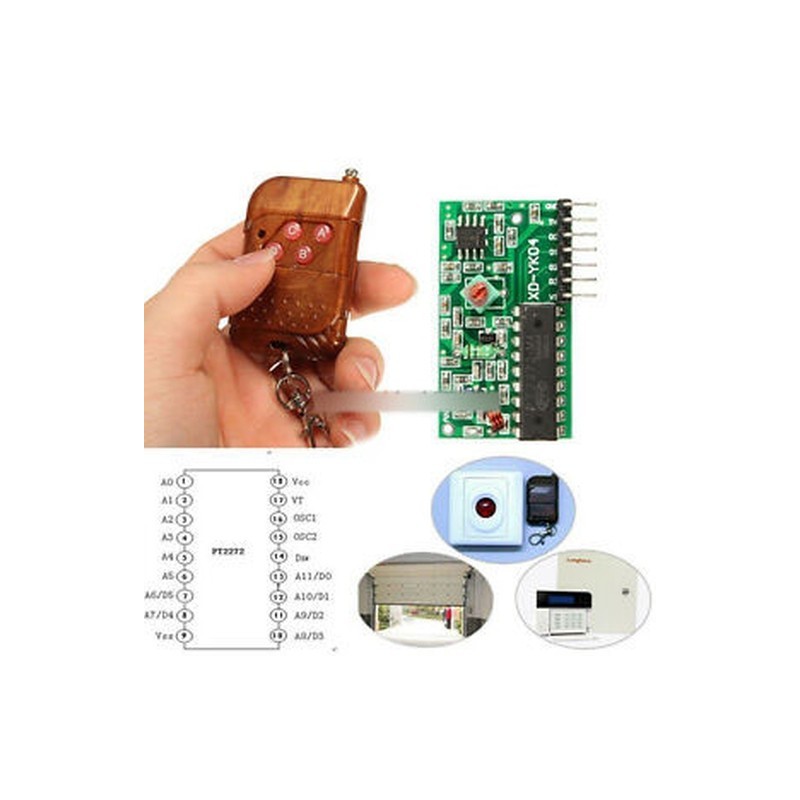

2PCS IC 2262/2272 4CH Key 315MHZWireless Remote Control Receiver module Arduino NOTE : our item come WITHOUT Battery ,Batteries Not included !!
100% Brand New.Operating voltage: DC12V (27A/12V battery x1)Operating Current: 10mA @ 12VRadiated power: 10mw @ 12VSize: 6.2 x 3.8 x1.4cm(LxWxD)Modulation mode: ASK (Amplitude Modulation)Transmitting frequency: 315MHZ (SAW frequency stabilization)Transmission distance :50-100M (Open field the receiver sensitivity -100dbm)Encoder types: fixed codeThe frequency of this product is 315 mhz.With decoding receiver board
1.The operating voltage DC5V, receiver sensitivity is-98db. Leg 7 bits, respectively, VT, D3, D2, D1, D0, the 5 V and GND. VT is a valid signal high output pin Upon receiving a valid signal, the pin output high, may also drive the relay.
2.Size: 6*22*41mmThere are four buttons on the remote control, and respectively correspond to the four data bits to the receiving board output pin D0, D1, D2, and D3 of. Press the buttons transmit signals, the corresponding data bit is output high.
Package Included:
2 x IC 2262/2272 4 CH Key Wireless Remote Control Kits Receiv
