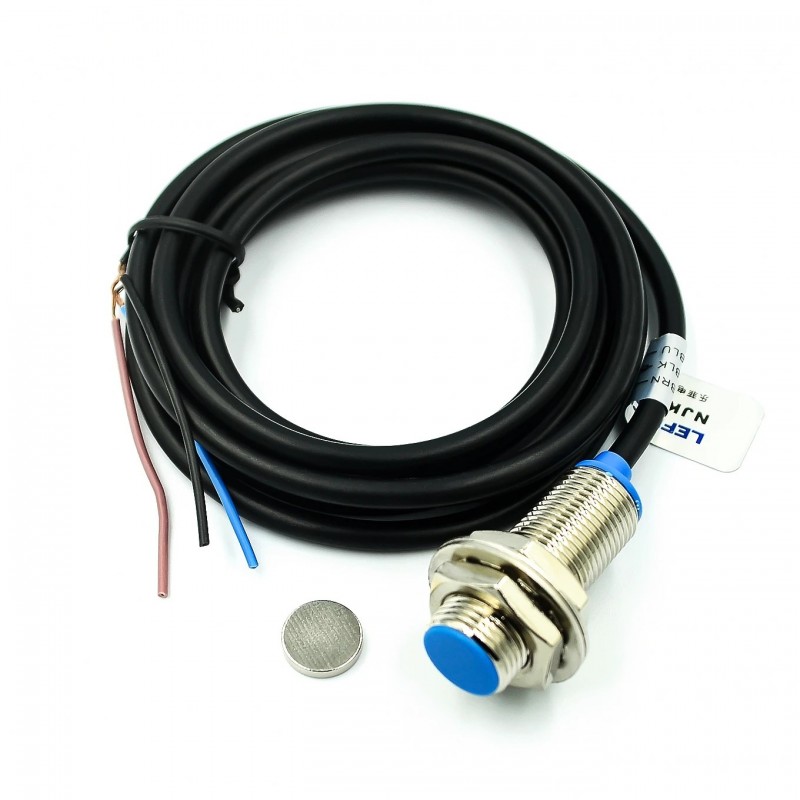

NJK-5002C Hall Effect Sensor Proximity Switch NPN 3-Wire Normally Open Magne

NJK-5002C Hall Effect Sensor Proximity Switch NPN 3-Wire Normally Open Magne
NJK-5002C Hall Effect Sensor Proximity Switch NPN 3-Wires Normally Open Magne
Model: NJK-5002C
Supply voltage 5-30VDC
Detection distance 10mm (effective detection distance 0-10mm)
Load current 150MA (no more than)
Output form NPN three lines
Output state normally open (NO)
Detect objects metal material
Product Material Metal parts: Copper plastic components: PBT
External leads 1.2 m (standard, others according to customer requirements)
Output indication LED (red)
Form Factor Diameter: 12MM thread length: 32MM Overall Length: 37MM
