CD4017 ne555 Strobe module electronics production suite DIY Kits electronic diy Learning suite
Description:
Kit Name: Strobe Kit
Operating voltage : 12V
Dashboard size : 5.4 * 3.1Cm
Light board size : 3.5 * 2.6CM;
This section kit designed operating voltage of 12V, want feeding 4.5-5V friends can buy 5V to 12V Boost board:
Flashing Mode Strobe Kit :( flicker frequency is adjustable)
Flash 2 times left and right flash 2 times, all bright 1;

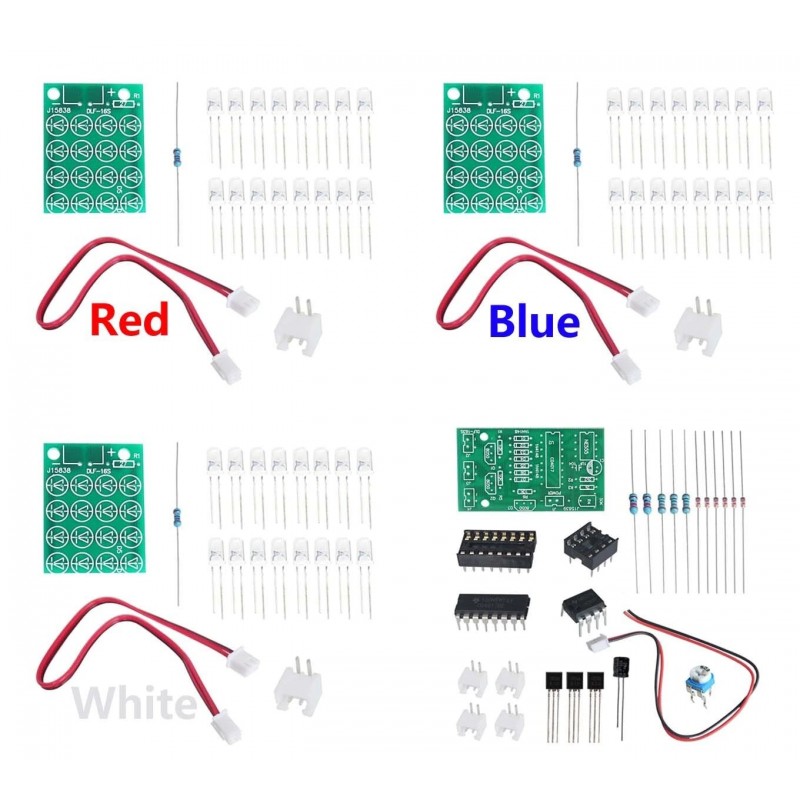

Strobe Kit , a control panel plus three light board (highlighted in red , bright white and bright blue ) .
Strobe Kits ( 1 3 light control board) element list:
1 , the control panel component list :
Name Number of elements
PCB board 1
16-pin IC Block 1
Do an 8-pin IC
CD4017 1
NE555 1
XH2.54-2P 4
8050 transistor 3
50K blue potentiometer 1
10K resistor 3
2K to 2.7K resistor 2
104 ceramic capacitor 1
10UF / 25V capacitor 1
1N4148 7
XH2.54-2P line 1
2 , light board list:
Name Quantity
PCB board 1 * 3
LED 16 * 3
27 ohm 1 * 3
XH2.54 curved seat 1 * 3
Double XH2.54-2P line 20CM 1 * 3
