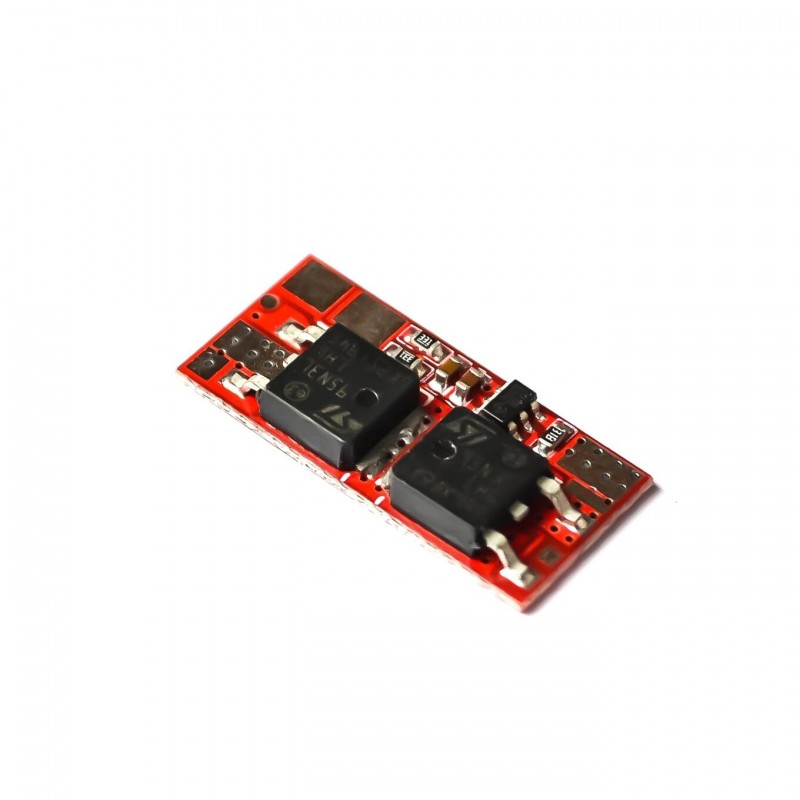

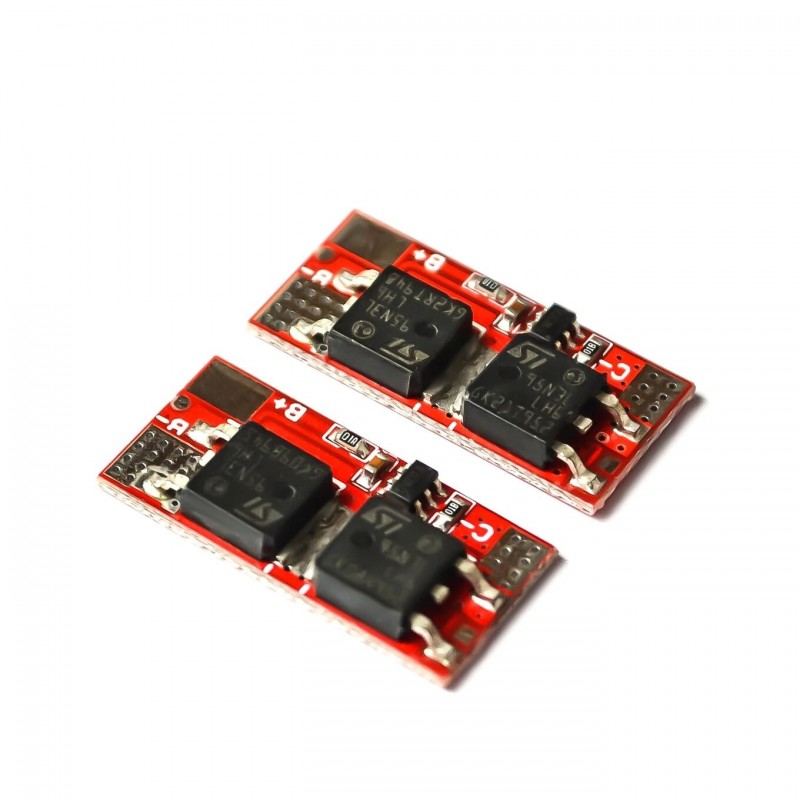

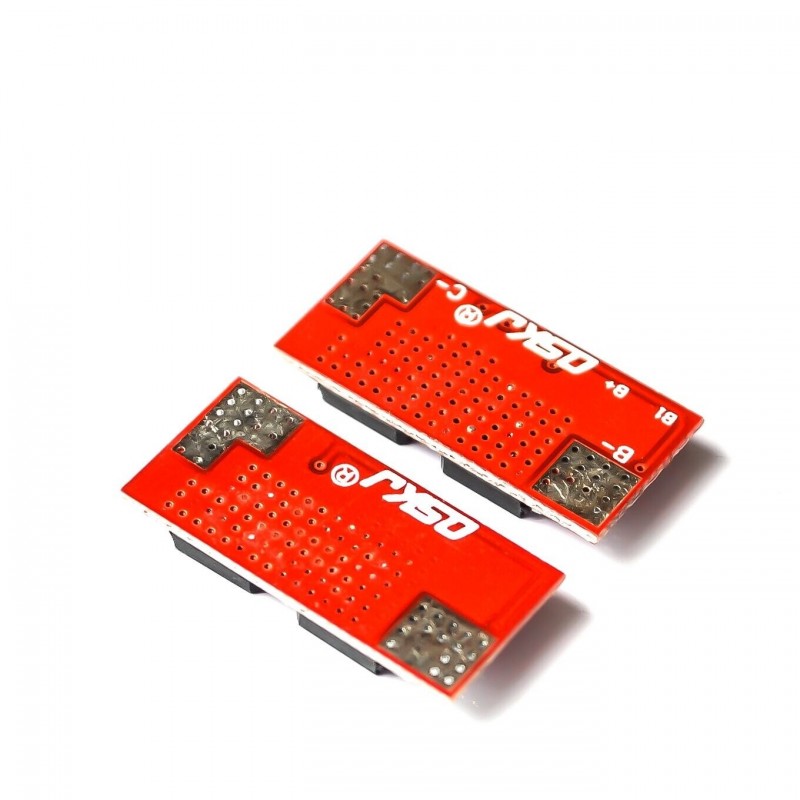

2S 25A - 10A BMS 1S 4.2V 2S 8.4V NYÁK PCM BMS 18650 Li-ion Lipo 1S 2S BMS lítium akkumulátor védelem áramköri modul

A cím elején, valamint az első képen szereplő szín/minta/méret/típus kerül kiszállításra!
10A BMS 1S 4.2V 2S 8.4V NYÁK PCM BMS 18650 Li-ion Lipo 1S 2S BMS lítium akkumulátor védelem áramköri modul töltő töltés
10A BMS 1S 4.2V 2S 8.4V PCB PCM BMS 18650 Li-ion Lipo 1S 2S BMS Lithium Battery Protection Circuit Board Module Charger Charging
1S Technical Parameters
1. Single-section overcharge protection voltage: 4.25V-4.35V
2. Single-section overcharge protection recovery voltage: 4.05V-4.15V
3. Overcharge protection delay: 1000mS
4. Single-section over-discharge protection voltage: 2.30V-2.50V
5. Single-section over-discharge protection recovery voltage: 2.9-3.10V
6. Over-discharge protection current: 16A
7. Overcharge protection current: 16A
8. Over-discharge protection delay: 50-200mS
9. Temperature protection: none
10. Wire break protection: Yes
11. Short circuit protection: Yes
12. Short circuit protection recovery mode: disconnect the load release
13. Split discharge current: none
14. Same port discharge current: 10A
15. Charging current: 10A


2S Technical Parameters
1. Single-section overcharge protection voltage: 4.26V-4.31V
2. Single-section overcharge protection recovery voltage: 4.03V-4.13V
3. Overcharge protection delay: 700-1300mS
4. Single-section over-discharge protection voltage: 2.82V-2.98V
5. Single-section over-discharge protection recovery voltage: 2.9-3.10V
6. Over-discharge protection current: 25A
7. Overcharge protection current: 25A
8. Over-discharge protection delay: 70-150mS
9. Temperature protection: none
10. Wire break protection: Yes
11. Short circuit protection: Yes
12. Short circuit protection recovery mode: disconnect the load release
13. Split discharge current: none
14. Same port discharge current: 10A
15. Charging current: 10A
