1db új Dual H Bridge DC léptető motoros vezérlőpanel modul L298N az Arduino intelligens autórobothoz

1db új Dual H Bridge DC léptető motoros vezérlőpanel modul L298N az Arduino intelligens autórobothoz

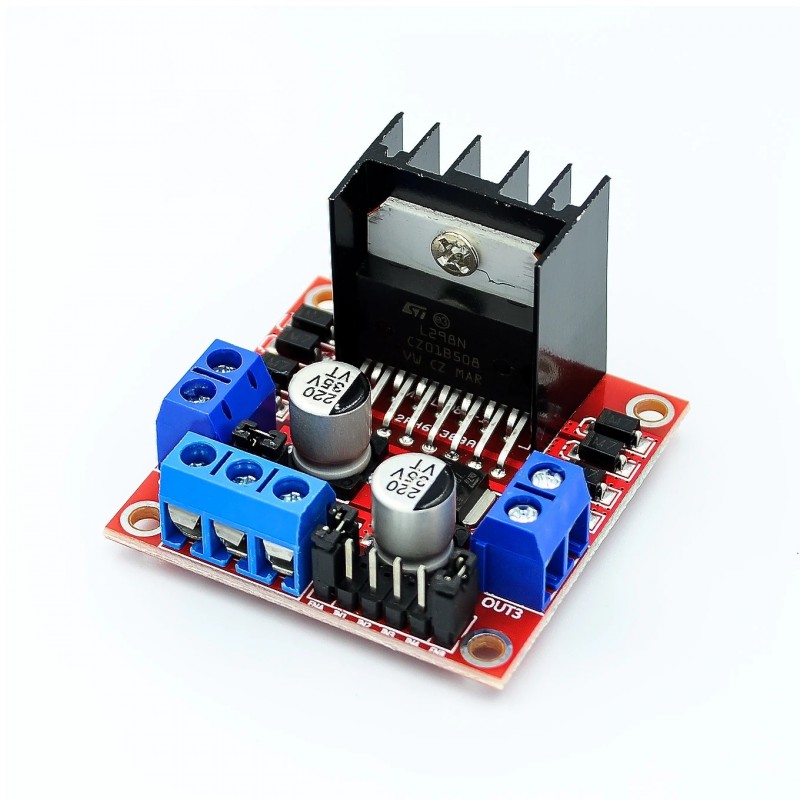

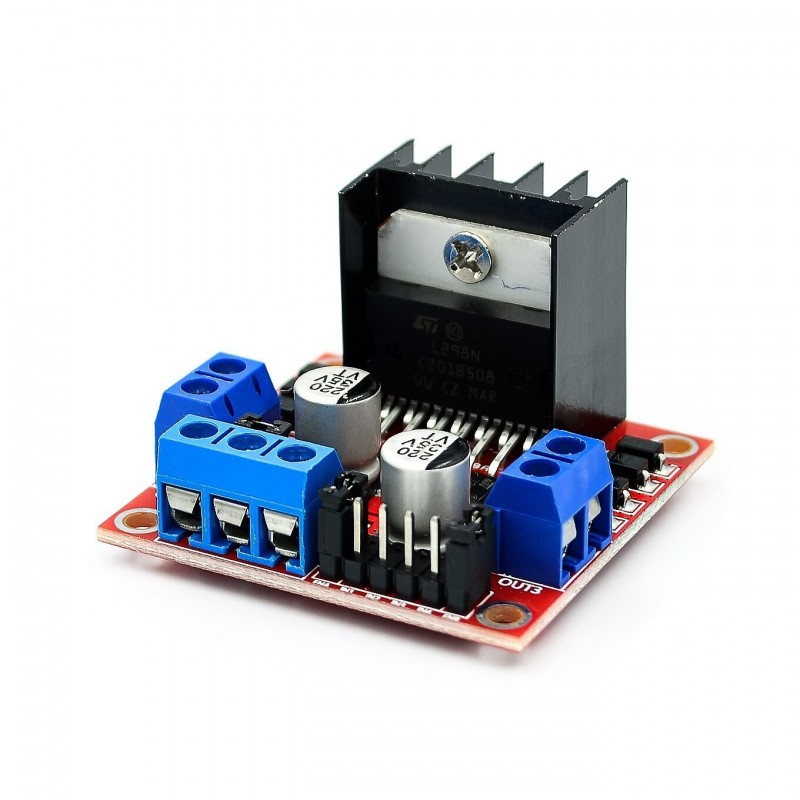

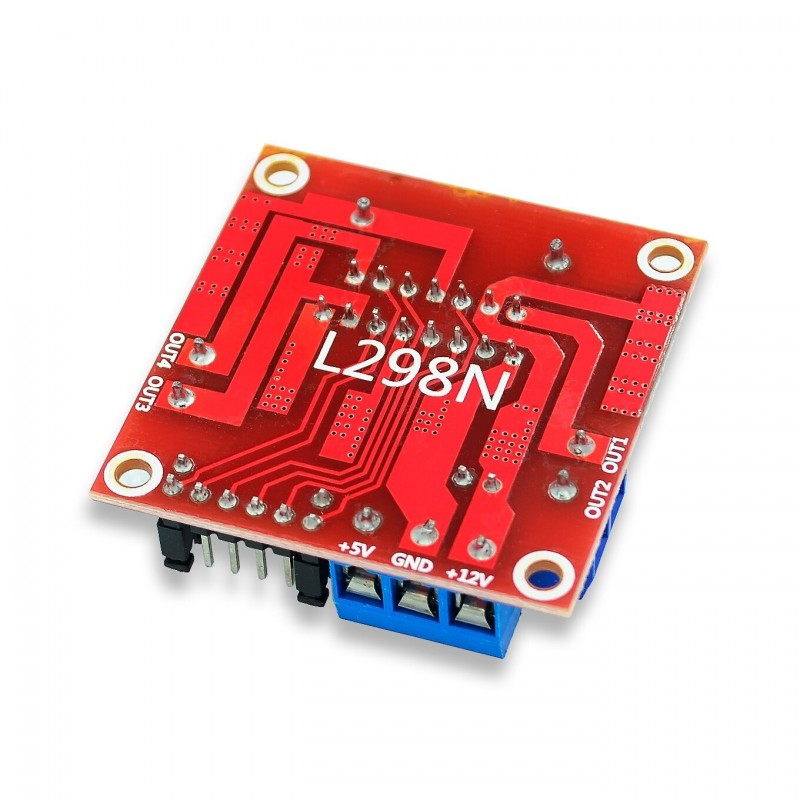

1PCS New Dual H Bridge DC Stepper Motor Drive Controller Board Module L298N for Arduino smart car robot




Features:

100% Brand New.
Working mode: H bridge (double lines)
Control chip: L298N (ST)
Logical voltage: 5V
Driving voltage: 5V-35V
Logical current: 0mA-36mA
Driving current: 2A (MAX single bridge)
Storage temperature: (-20 °C)-( 135 °C)
Maximum power: 25W
Weight: 30g
Periphery dimension: 43 x 43 x 27mm(L x W x H)
Using L298N made by ST company as the control chip, the module has such characteristics as strong driving
ability, low calorific value and strong anti-interference ability.
This module can use built-in 78M05 for electric work via a driving power supply part. But to avoid the damage
of the voltage stabilizing chip, please use an external 5V logic supply when using more than 12V driving voltage.
Using large capacity filter capacitor, this module can follow current to protect diodes, and improve the reliability.
Package Content
Dual H Bridge DC Steper Motor Drive Controller
