EM276 professzionális befecskendező-tesztelő üzemanyag-befecskendező 4 plusz üzemmód-tesztelő erőteljes üzemanyag

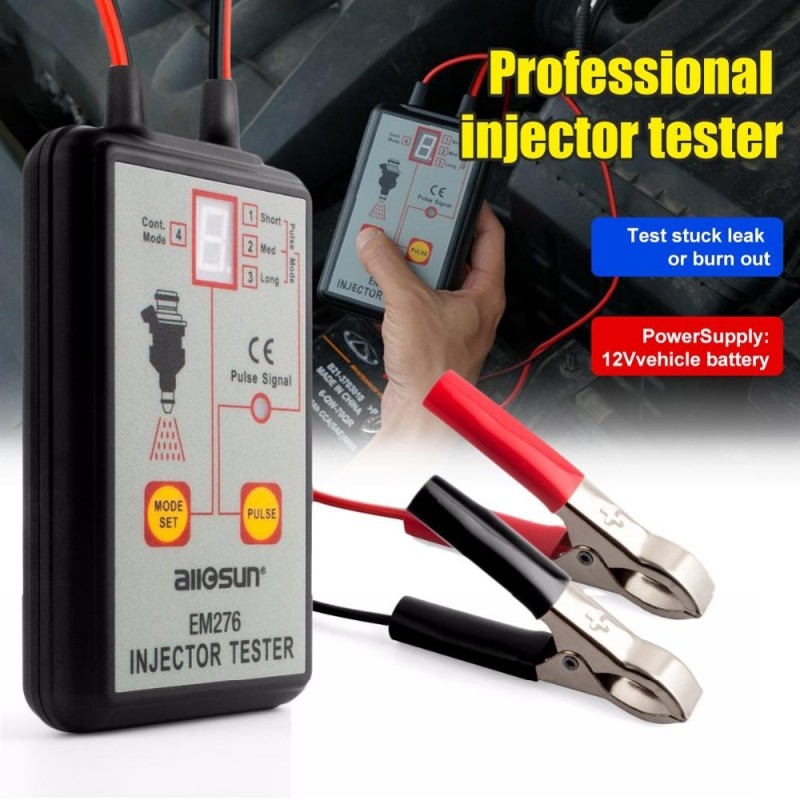

EM276 Professional Injector Tester Fuel Injector 4 Pluse Modes Tester Powerful Fuel System Scan Tool EM276


EM276 Item Feature:
*1. This tester can diagnose injector problems, you can use it on each injector individually to test stuck, leaking or burnt-out.
*2. It used 12V vehicle battery as power supply.
*3. It has 4 pulse modes and in the continuous working mode (mode 4 ), it can help you identify the injector good or not when you switch off the engine.
*4. The lock mode can ensure the testing condition is same.
*5. It can work with any fuel pressure tester together.

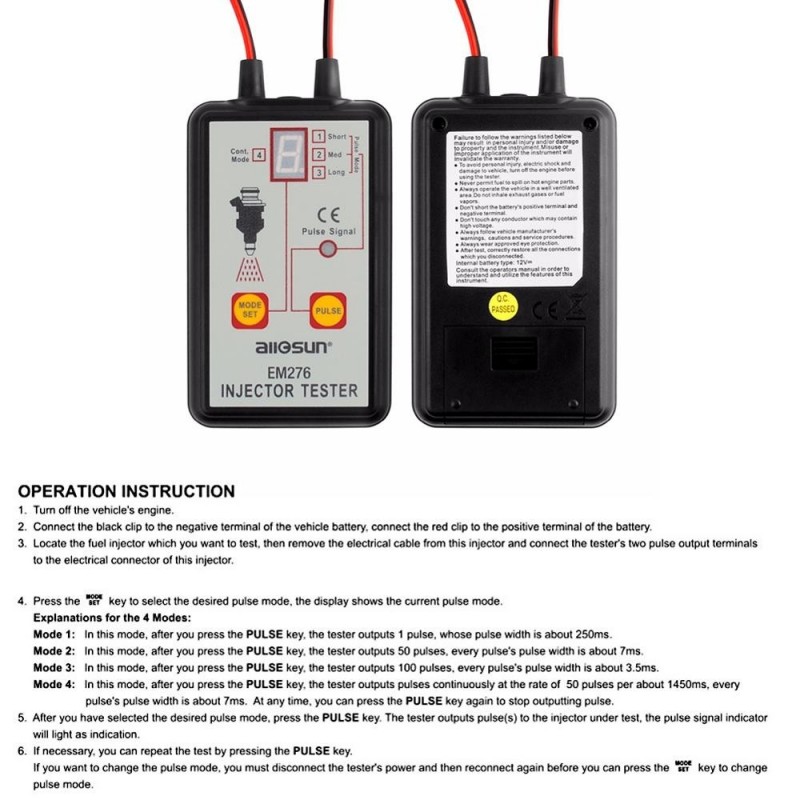

EM276 Operation Instructions:
Turn off the vehicle‘s engine.

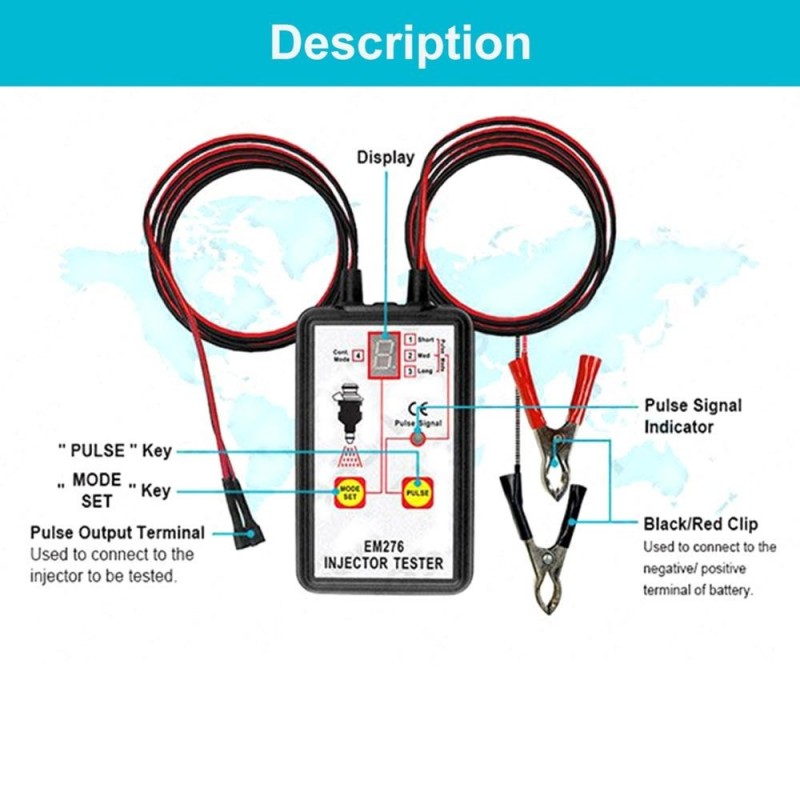

Connect Black / Red Clip to the Negative / Positive terminal of battery.
Connect pulse output terminal to the fuel injector.
Press the "MODE SET" key to select the desired pulse mode.
Press the "PULSE" key, the tester will output pulse to the injector, and then the pulse signal.
The indicator light will illuminate for indication
Explanations for 4 modes:
Mode 1: the tester outputs 1 pulse, whose pulse width is about 250ms
Mode 2: the tester outputs 50 pulse, every pulse's pulse width is about 7ms
Mode 3: the tester outputs 100 pulse, every pulse's pulse width is about 3.5ms
Mode 4: the tester outputs pulse continuously at the rate of 50 pulses per about 1450ms, every pulse's pulse width is about 7ms
Specification:
Power Supply: 12V vehicle battery
Operation Environment: 0 C-40C, relative humidity <80%
Storage Environment: -10 C-50C, relative humidity <85%
Size: 147x82x29mm (for main body only)
Weight: about 165g
Packing list:
1 * EM276 Professional Injector Tester
Notes:
1.The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
2.Please allow slight manual measurement deviation for the data.
