DC-DC Boost modul PDA mobil jármű tápegység Laptop tápegység 8-32v - 9-46v 150w nagy teljesítményű

DC-DC Boost Module PDA Mobile Vehicle Power Supply Laptop Power Supply 8-32v To 9-46v 150w High Power
Features:
1. DIY a regulated power supply, input 12V, output can be adjusted from 12-46V.
2. To supply power to your electronic equipment, you can set the output value according to your system voltage.
3. As a vehicle power supply, power your laptop, PDA or various digital products.
4. DIY a high-power notebook mobile power supply: equipped with a large-capacity 12V lithium battery pack.
5. Wiring mode: The terminal block is free of welding output, and the shell is equipped with welding output. (V-IN is input, V-OUT is output)
Description:

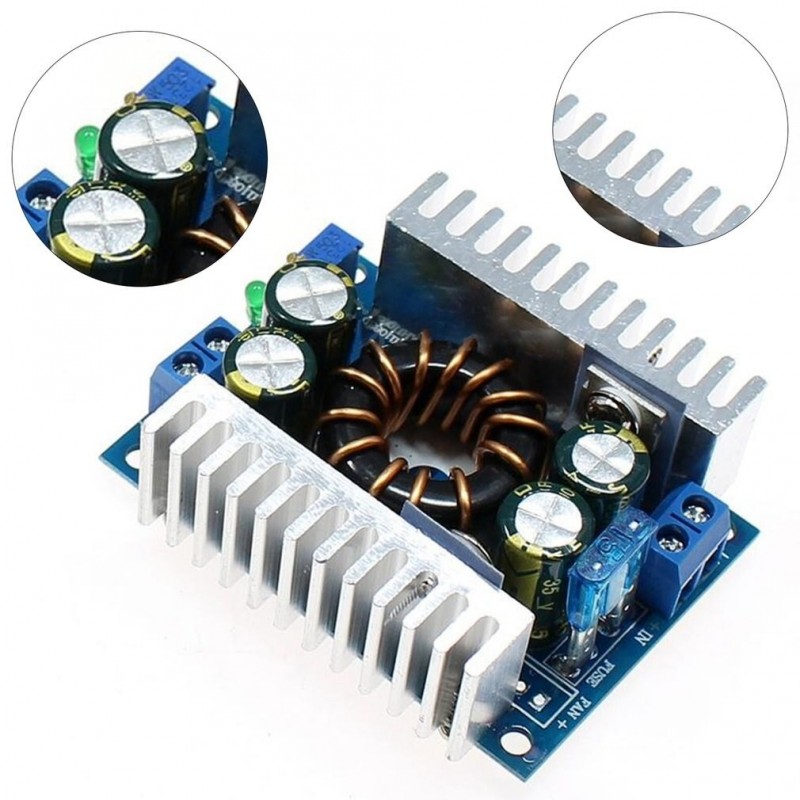

The DC-DC boost module has an ultra-small volume and an ultra-dense reinforced aluminum radiator, which makes the module's working temperature lower and more stable.
Specifications:
Module size: 60*5*20mm (L*W*H)
Input voltage:
8-16V input (for three strings of lithium batteries and 12V battery applications)
10-32V input (for wide input voltage range applications)
Output voltage: 9-46V continuously adjustable
Input current: 16A (maximum) over 8A, please strengthen heat dissipation
Output current: 8A (maximum). If more than 4A, please strengthen heat dissipation (related to the input and output pressure difference, the larger the pressure difference, the smaller the output current)
Static working current: 15mA (when 12V rises to 20V, the higher the output voltage, the static current will increase)
Output power: natural heat dissipation 90W, enhanced heat dissipation 150W
Working temperature: -40~ 85℃ (please strengthen heat dissipation when the ambient temperature is too high)
Working frequency: 150KHz
Short circuit protection: Yes (input 15A fuse)
Installation method: 4 * 3mm screws
Package Included:
1 * Boost Module
Notes:
1. Please allow 0-1 inch error due to manual measurement. Thanks for your understanding.
2. Monitors are not calibrated same, item color displayed in photos may be showing slightly different from real object.
