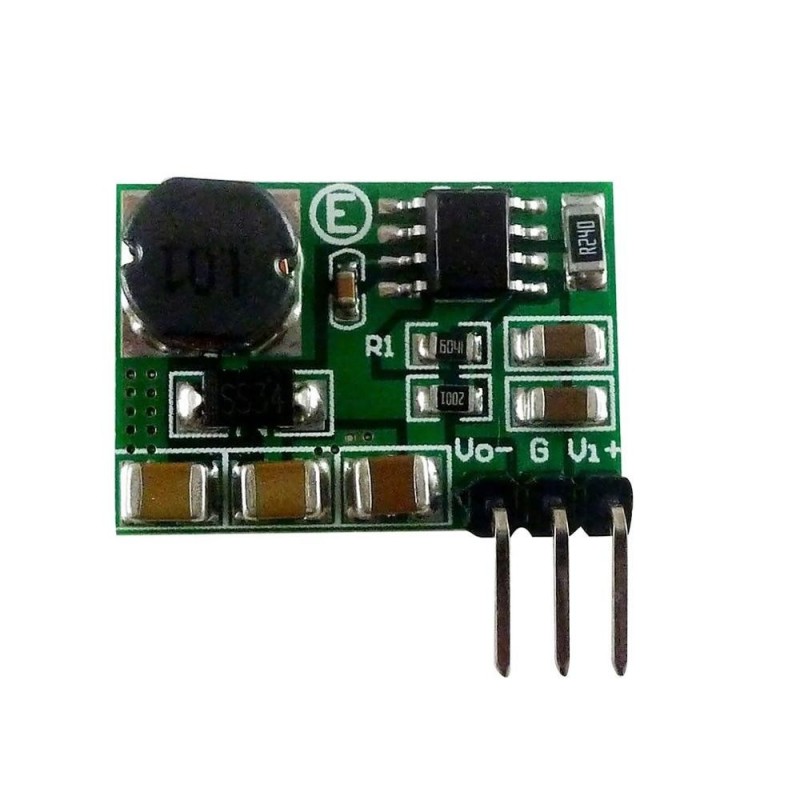

-3,3V - 3-15V -3,3V / -5V / -6V / -9V / -12V /- Negatív feszültségű egyenáramú átalakító modul ADC DAC LCD tápegység

A cím elején, valamint az első képen szereplő szín/minta/méret/típus kerül kiszállításra!

3-15V to -3.3V/-5V/-6V/-9V/-12V /- Negative Voltage DC DC Converter Module ADC DAC LCD Power Supply Welding Boost-Buck

Features:

1.This is DC-DC boost-buck inverting switch regulators module.
2.DC DC boost converter module working frequency 100KHz.
3.2.54mm pin pitch, for MCU development board breadboard friendly.
4.Suitable for ADC/DAC/operational amplifier, RS232 RS485 RS422 bus, audio equipment, LCD power supply, instrumentation equipment, MCU board, motor power, instrumentation multimeter, Wifi/Router/Ethernet devices.
5.Step up or down module is small in size and provides excellent performance.

Descriptions:
1.This is 3V-15V tO -3.3V/-5V/-6V/-9V/-12V/-15V boost-buck positive to negative voltage module.
2.ADC DAC LCD Power Supply has stable performance and high conversion rate.
3.The boost-buck converter module uses high-quality electronic components and precision technology to ensure durability.

Specifications:
Product Name: Converter Module
Type: -3.3V/-5V/-6V/-9V/-12V/-15V (Optional)
Model Number: DD0315NA
Material: Metal
Color: Multicolor

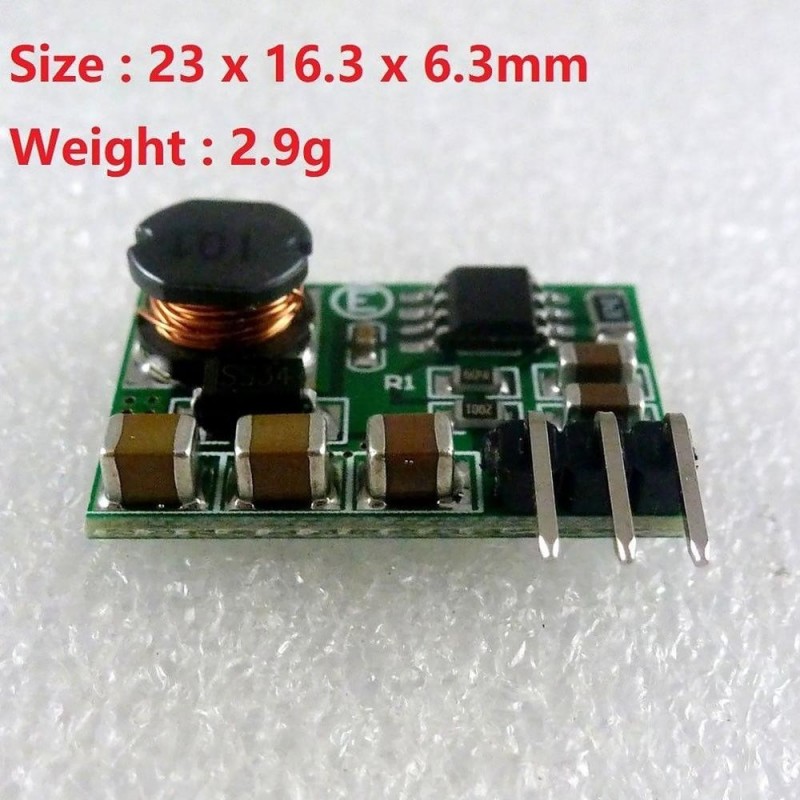

Size: 23x16.3x6.3mm/0.91x0.64x0.25in
Weight (with Pin): 2.9g/0.1oz
Weight (without Pin): 2.7g/0.095oz
DC DC Boost Converter Module Working Frequency 100khz.
Operating Temperature Range: 0~ 70°
Storage Temperature Range: -65~ 150°
-3.3V:
Input Voltage DC 3~ 15V, Output DC-3.3V(Deviation is ±3% )
Maximum Input Current 600mA
Maximum Output Current: 500mA
Quiescent Current: 4-10mA
-5V :
Input Voltage DC 3~ 15V, Output DC-5V( Deviation is ±3% )
Maximum Input Current 500mA
Maximum Output Current: 500mA
Quiescent Current: 4-10mA
-6V:
Input Voltage DC 3~ 15V, Output DC-6V(Deviation is ±3% )
Maximum Input Current 600mA
Maximum Output Current: 430mA
Quiescent Current: 5-11ma
-9V:
Input Voltage DC 3~ 15V, Output DC-9V(Deviation is ±3% )
Maximum Input Current 500mA
Maximum Output Current: 300mA
Quiescent Current: 6-14mA
-12V :
Input Voltage DC 3~ 15V, Output DC-12V(Deviation is ±3% )
Maximum Input Current 500mA
Maximum Output Current: 220mA
Quiescent Current: 8-18mA

Package Informations:
Package Size: 60x160x20mm/2.36x6.30x4.72in
Package Weight: 3g/0.11oz
Polybag Package

Package Included:
1 x Converter Module

Notes:
This is a DC-DC voltage converter module, must be noted when using:
1.Input voltage can not be greater than the maximum input range.
2.Output power can not be greater than the maximum load for a long time.
3.Input power must be greater than the output power, because the power consumption of the module itself.
