Digitális LCD-kijelzős PC-számítógép 20/24 tűs LCD-tápegység-tesztelő ellenőrzése Gyors banki tápellátás
1005004301790493/2
Új termék

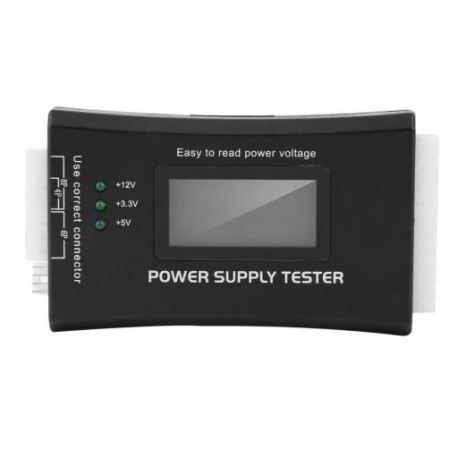

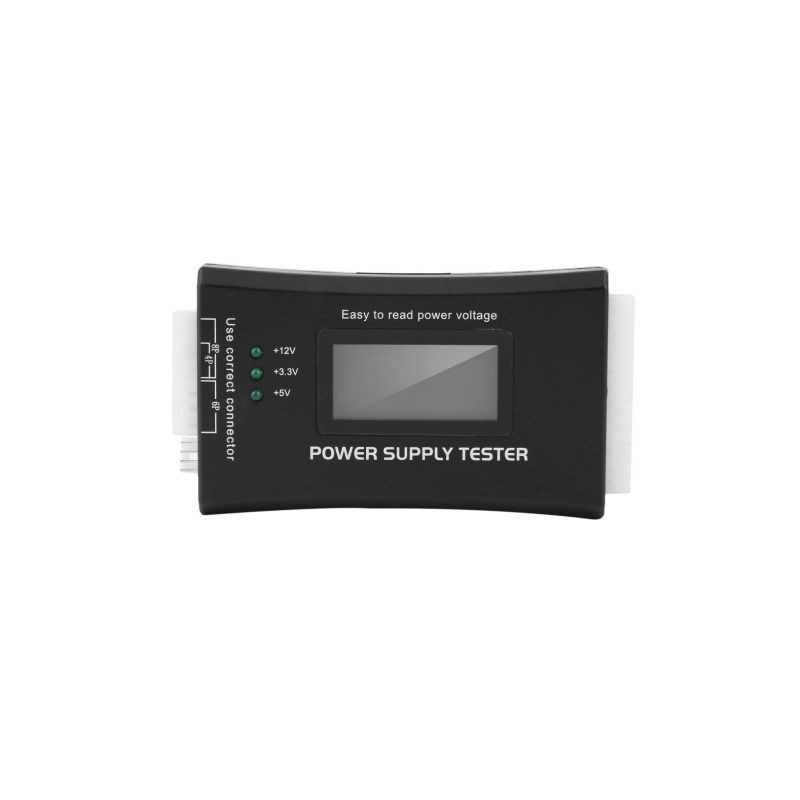

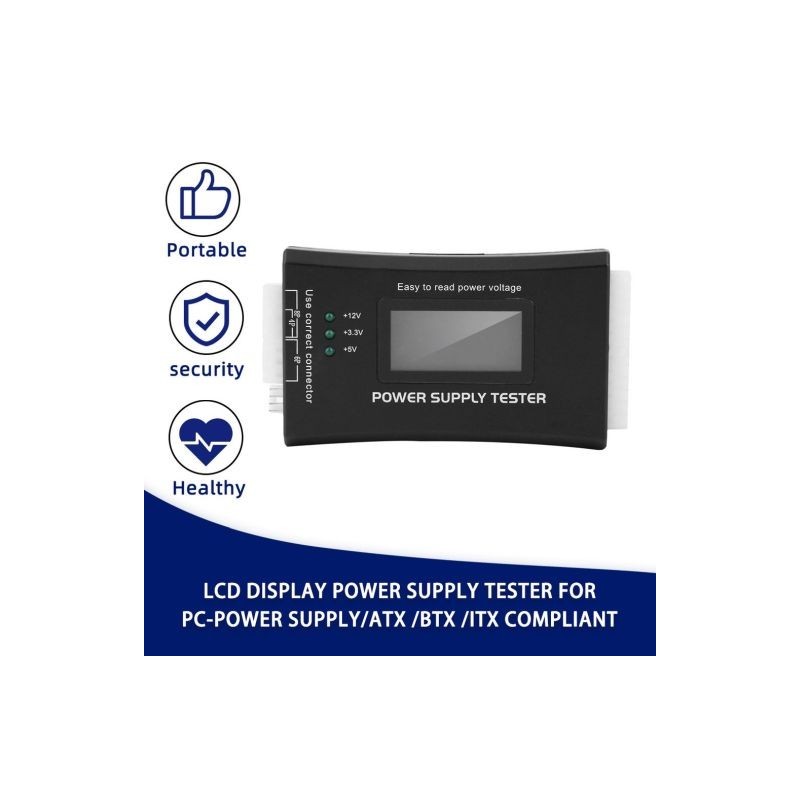

20/24 pin ATX - connector Power Supply Tester for PC-power Supply/ATX /BTX /ITX Compliant
Features:
100% Brand New.
The SD power supply tester is a robust voltage, tester for PC-power supply, ATX . BTX and ITX compliant, power supplies can be tested.

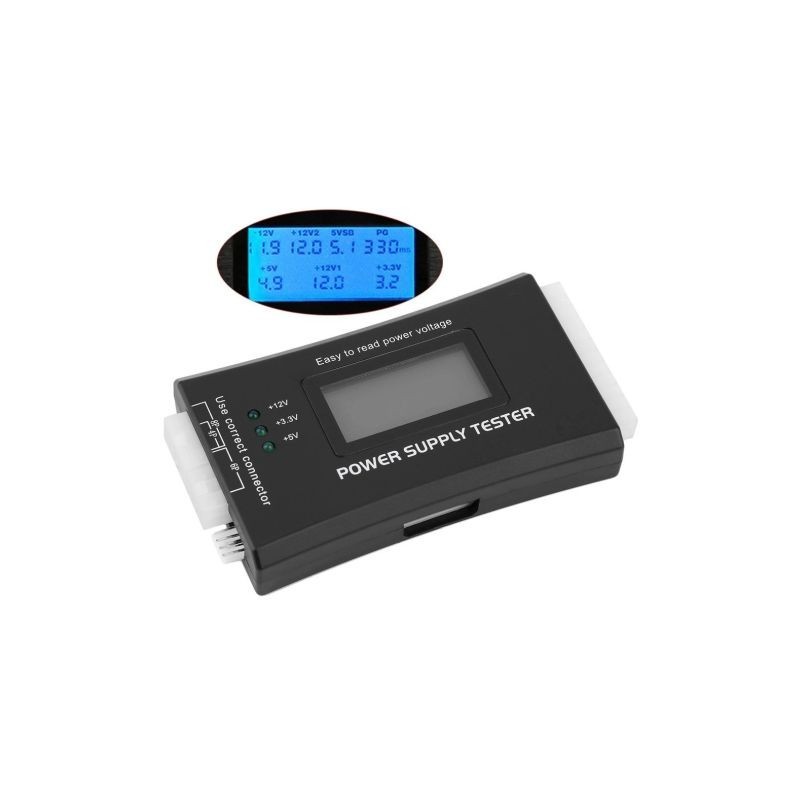

LCD's indicate the status of voltage .The PC / SPS is suitable for the ambitious hobby user , as well as for a quick functional check in specialized trade.
The methods of operation:
Plug power supply 24 PIN and P4 , P6 or P8 into the corresponding jack of the power test suite
Power on the supply of power, will hear \"DuDu\" ring , if no flicker then the power supply output voltage is normal.
If a certain voltage signal was not detected, or the detected voltage value over the normal, will issue a \"DuDu\" long buzzer ; if the corresponding voltage value or PG flicker too, then the power is failed.
Specification:
Weight: 139g
Size ( about ): 12 x 6.5 x 1.5 cm
Voltage source : 20/24 pin ( ATX - connector )
Voltage test : 12V , -12V , 5V , -5V , 3.3V , 5V Stand by (SB) 12V power Good ( PG )

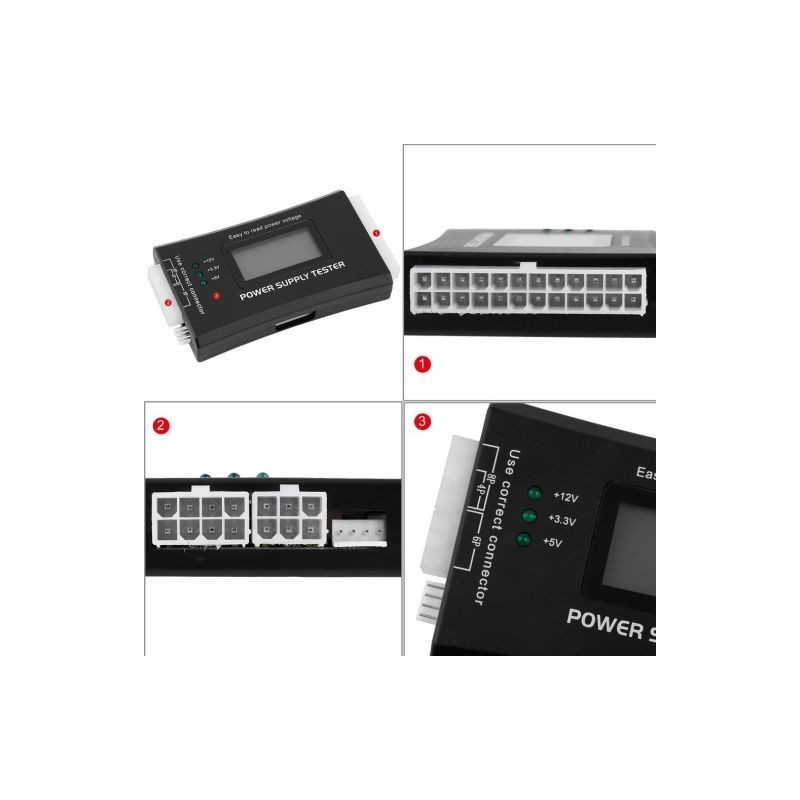

Connectors : Floppy, HDD , CDROM , SATA , 4pin ( P4 ) , 8pin ( Dual-CPU ) , 6pin ( PCI-Express )
Packet content:
1 x Power supply tester
Features:
100% Brand New.
The SD power supply tester is a robust voltage, tester for PC-power supply, ATX . BTX and ITX compliant, power supplies can be tested.
LCD's indicate the status of voltage .The PC / SPS is suitable for the ambitious hobby user , as well as for a quick functional check in specialized trade.
The methods of operation:
Plug power supply 24 PIN and P4 , P6 or P8 into the corresponding jack of the power test suite
Power on the supply of power, will hear \"DuDu\" ring , if no flicker then the power supply output voltage is normal.
If a certain voltage signal was not detected, or the detected voltage value over the normal, will issue a \"DuDu\" long buzzer ; if the corresponding voltage value or PG flicker too, then the power is failed.
Specification:
Weight: 139g
Size ( about ): 12 x 6.5 x 1.5 cm
Voltage source : 20/24 pin ( ATX - connector )
Voltage test : 12V , -12V , 5V , -5V , 3.3V , 5V Stand by (SB) 12V power Good ( PG )
Connectors : Floppy, HDD , CDROM , SATA , 4pin ( P4 ) , 8pin ( Dual-CPU ) , 6pin ( PCI-Express )
Packet content:
1 x Power supply tester
Egyéb infó
