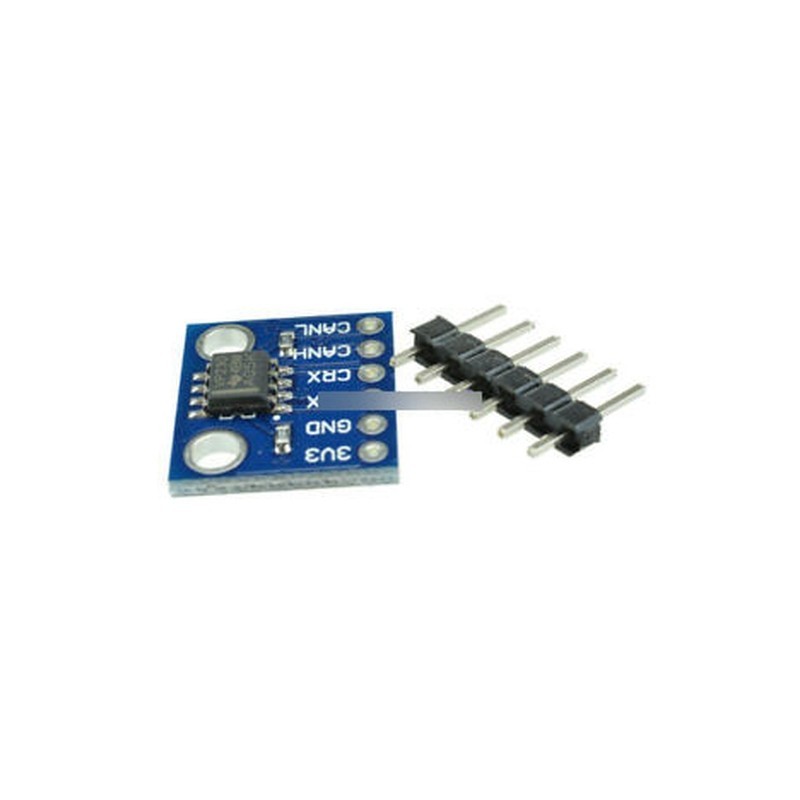

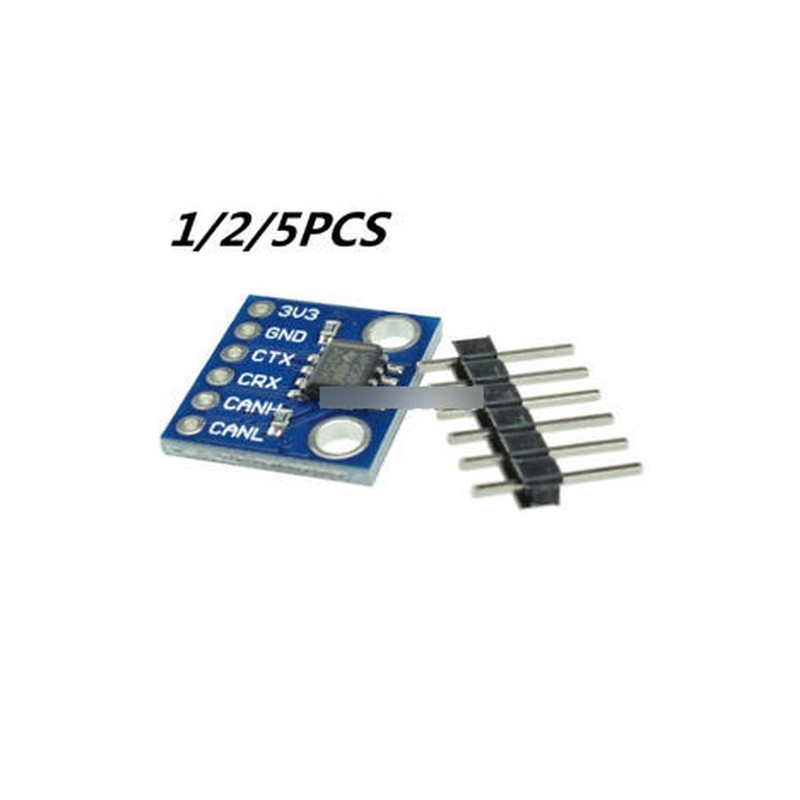

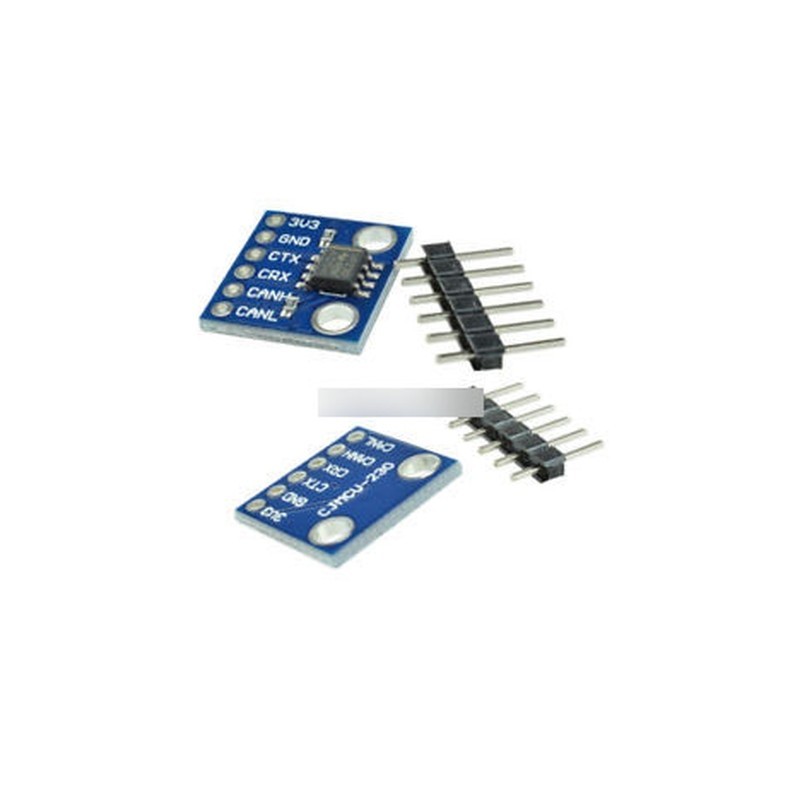

2db - 1/2 / 5PCS SN65HVD230 CAN busz adó-vevő kommunikációs modul Arduino
311976288853/2
Új termék
1/2/5PCS SN65HVD230 CAN bus transceiver communication module For Arduino
Product Description:SN65HVD230 can be used under high interference environment.The device has the ability to send and receive good at different rates,and its main features are as follows:Fully compatible with ISO11898 standard;
High input impedance, allowing 120 nodes;
Low current standby mode, the typical current of 370ÎĽA;
Signal transfer rate up to 1Mb / s;
Thermal protection, open circuit failure protection function;
With anti-instantaneous interference protection bus;
Slope control, reduce radio frequency interference (RFI);Differential receiver with a wide range of anti-common-mode interference,electromagnetic interference (EMI) capabilities. Operating modes and control logic SN65HVD230 high speed, slope and wait three different modes of operation.Its working mode control can be achieved by the control pin Rs.Figure 2 is a SN65HVD230 CAN bus system in a typical application diagram.Can be seen from the figure, CAN controller is connectedto the output pin Tx SN65HVD230 data input terminal D,this data can be transferred to the CAN node sends CAN network;CAN controller and receive pins of Rx and SN65HVD230 R is connected tothe data output terminal, for receiving data.Select the port Rs SN65HVD230 way via jumpers and end ofthe ground slope resistor can be achieved through hardwaremode select three modes of operation, in whichthe slope is 0 ~ 100kΩ resistor potentiometerPackage Included:
1/2/5PCS x SN65HVD230 CAN bus transceiver communication module For Arduino TOP
Product Description:SN65HVD230 can be used under high interference environment.The device has the ability to send and receive good at different rates,and its main features are as follows:Fully compatible with ISO11898 standard;
High input impedance, allowing 120 nodes;
Low current standby mode, the typical current of 370ÎĽA;
Signal transfer rate up to 1Mb / s;
Thermal protection, open circuit failure protection function;
With anti-instantaneous interference protection bus;
Slope control, reduce radio frequency interference (RFI);Differential receiver with a wide range of anti-common-mode interference,electromagnetic interference (EMI) capabilities. Operating modes and control logic SN65HVD230 high speed, slope and wait three different modes of operation.Its working mode control can be achieved by the control pin Rs.Figure 2 is a SN65HVD230 CAN bus system in a typical application diagram.Can be seen from the figure, CAN controller is connectedto the output pin Tx SN65HVD230 data input terminal D,this data can be transferred to the CAN node sends CAN network;CAN controller and receive pins of Rx and SN65HVD230 R is connected tothe data output terminal, for receiving data.Select the port Rs SN65HVD230 way via jumpers and end ofthe ground slope resistor can be achieved through hardwaremode select three modes of operation, in whichthe slope is 0 ~ 100kΩ resistor potentiometerPackage Included:
1/2/5PCS x SN65HVD230 CAN bus transceiver communication module For Arduino TOP
Egyéb infó
A cím elején szereplő szín/minta/méret/típus kerül kiszállításra!
