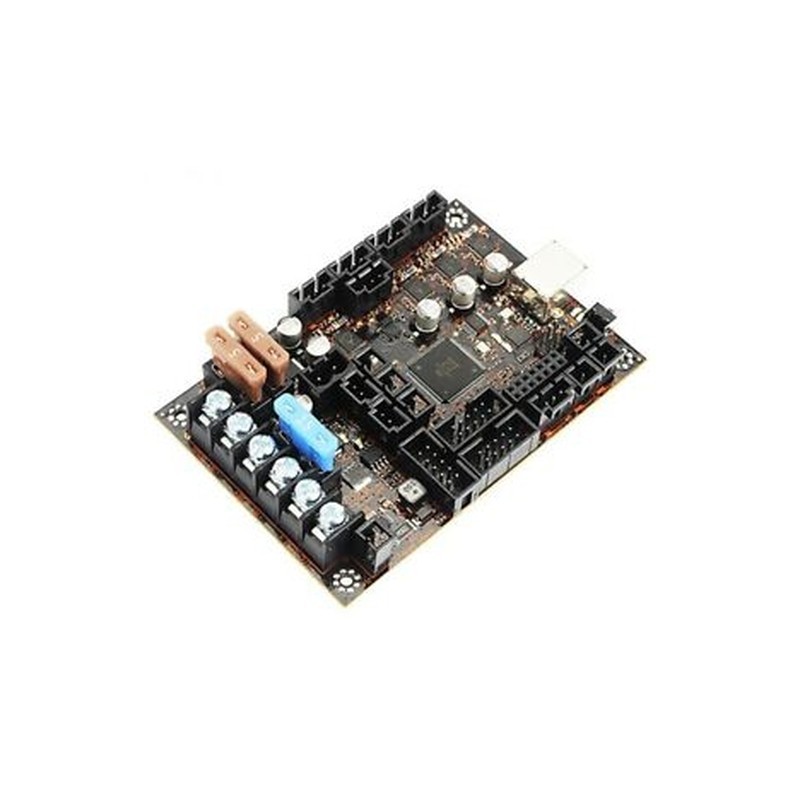

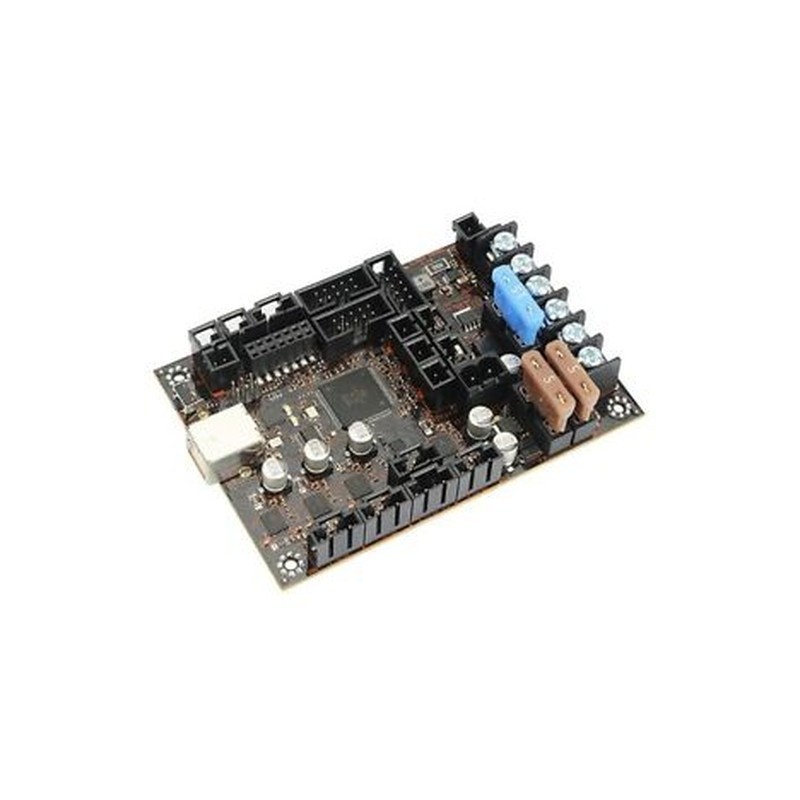

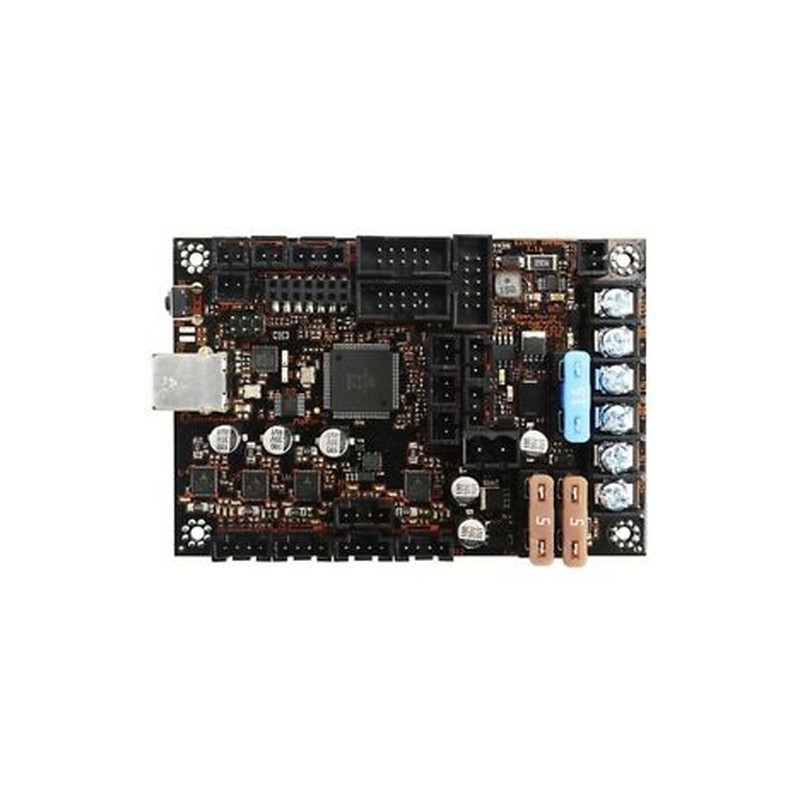

Einsy Rambo 1.1A alaplap a Prusa I3 Mk3 táblához, 4 Tmc2130 léptetővel M5X6

Einsy Rambo 1.1A Mainboard For Prusa I3 Mk3 Board With 4 Tmc2130 Stepper M5X6

For Arduino MEGA compatible Atmega2560 and Atmega32u2 processors are compatible with all RAMPS class firmware
Crystals for both usb and mcu (timing accurate to 10ppm)
3 Thermistor jacks 4th Thermistor circuit on ZProbe.
4 Trinamic TMC2130 1/256th microstep motor drivers(2 connectors on Z for Prusa Mendel and other dual Z printer designs)
SPI Control of stepper current instead of PWM.
Microstep mode configured by MCU through firmware (SPI, no jumpers needed)
PWM DC outputs (Extruders, Fans, Etc.)
4 outputs (1 Extruder, 1 BED, 2 low power (fan,etc)
Low resistance mosfets for cool running
Indicator led for each channel
FANS have 3pin fan connector.
FANS have 5V instead of 12-24V power source.
FAN connectors have tachometer feedback pin to the MCU to measure fan speed in capable firmware.
2 power input rails
Heated Bed, 15A 12-24V (15A dedicated fuse)
Primary Power 10A 12-24V: Motors, Logic & Fans (5A dedicated fuse) Extruder (5A dedicated fuse)
Built in SMPS for 5V generation from the Motors, Logic & Fans rail
Connectors
4-pin motor,zprobe plug - Molex 5057-9404
3-pin fan plug - Molex 5057-9403
2-pin thermistor, mech. endstop plug - Molex 5057-9402
colour:black
Material:Metal plastic
Package Contents:
1 * Motherboard
1 * USB line
4 * black heat sink
