8X(1Pcs Ocday Matek Hubosd Eco X Power Distributon Board Hub Osd Pdb Curren V3X4

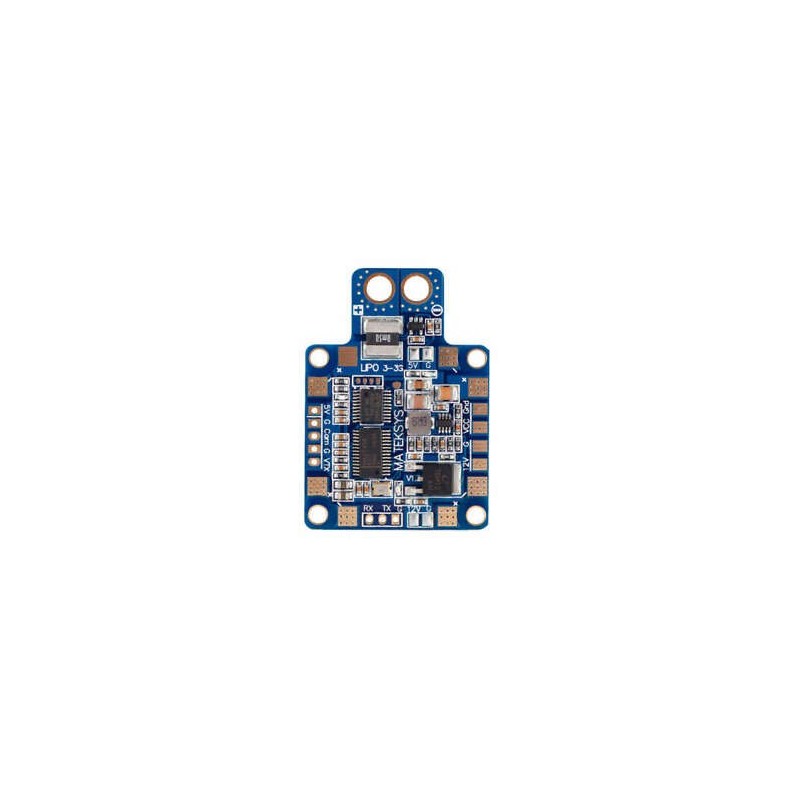

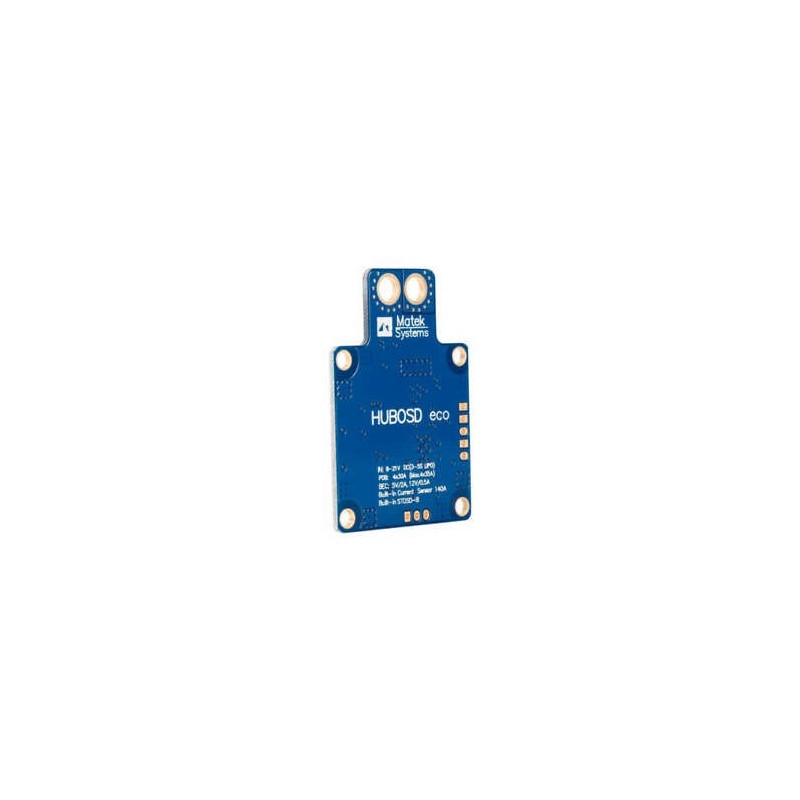

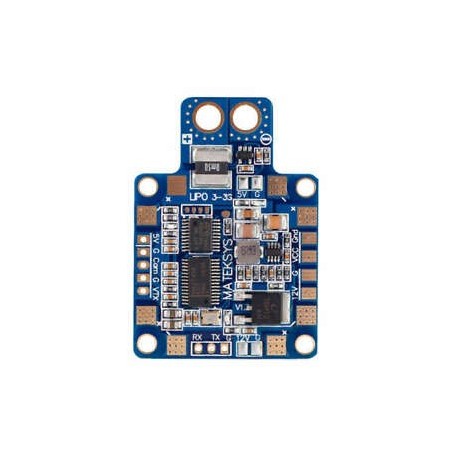

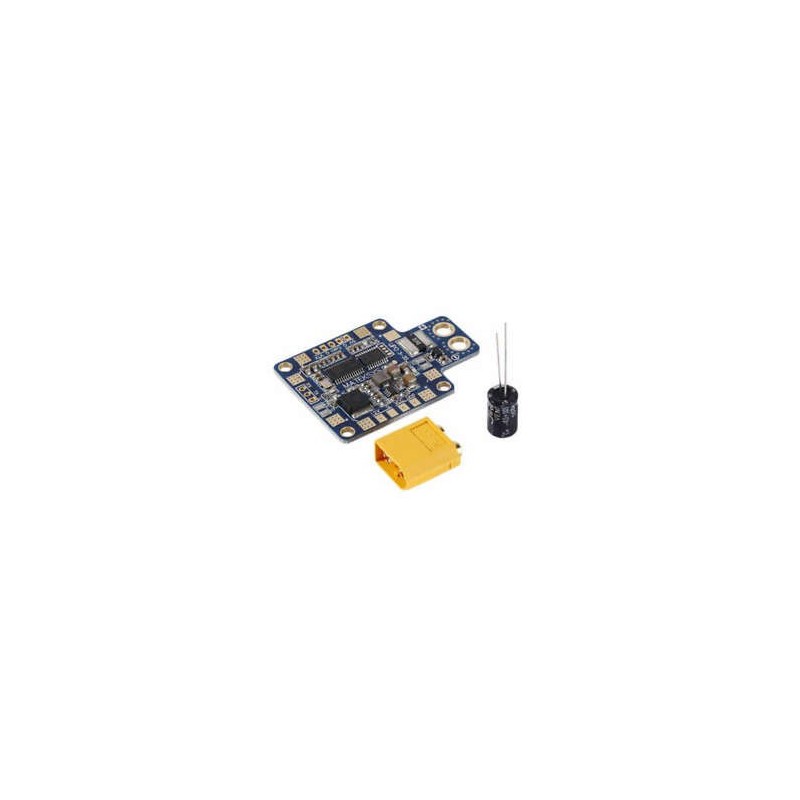

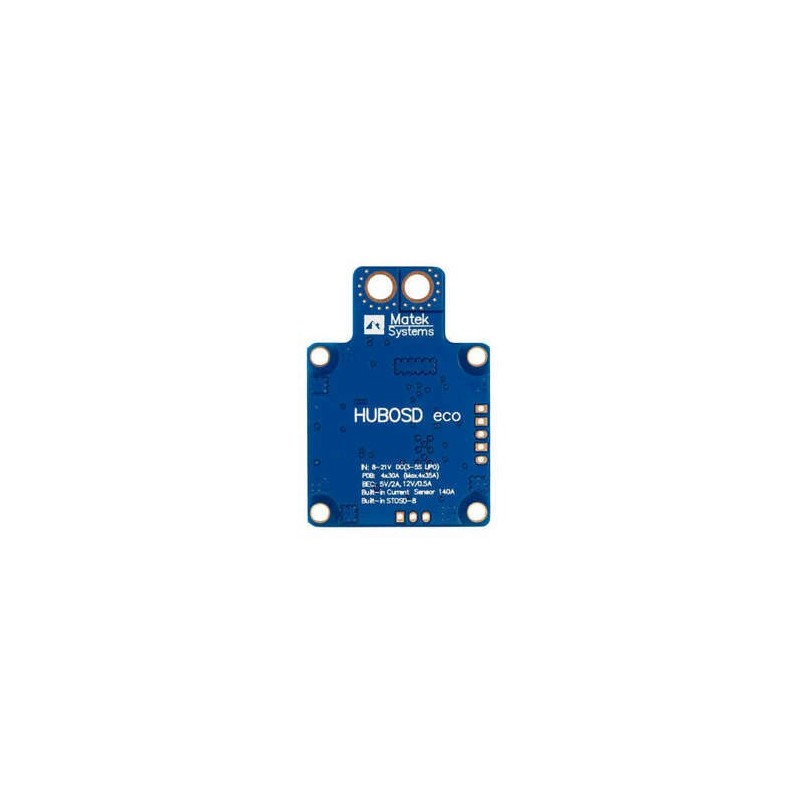

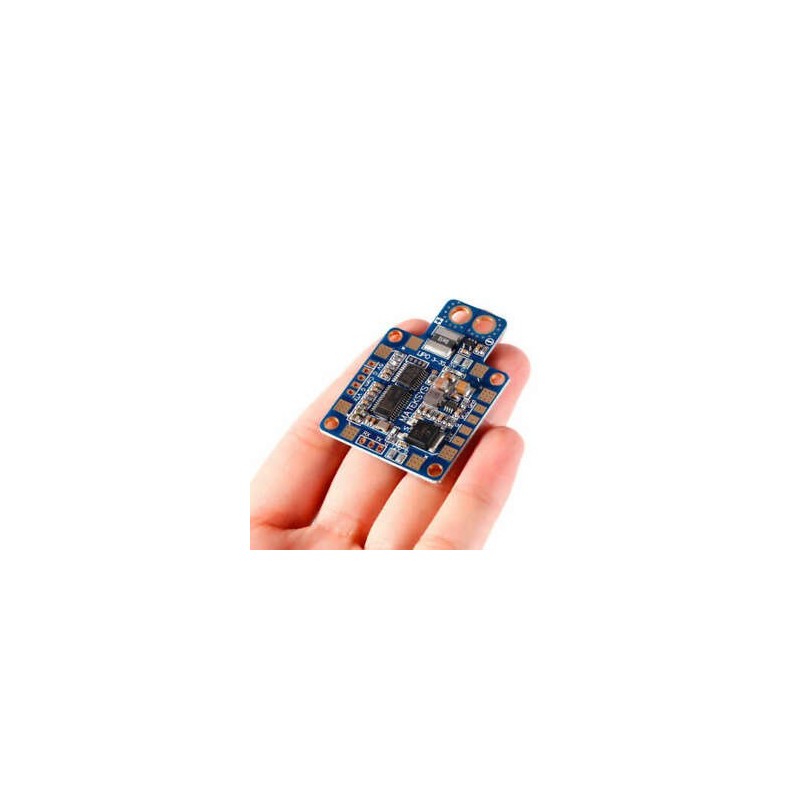

8X(Dual BEC X Type. The HUBOSD8 has been engineered to provide the highest possible performance and reliability in a 4 layers PCB. It is a multifunctional HUB with PDB, BEC 5V/2A &12V/500mA, Current sensor 140A, STOSD8. The BEC 12V is linear regulator, no LC Filter needed. Built-in STOSD8 can support Plug & Play, no complicated settings needed. It is specially made for the mini FPV Quad.
General: In: 8-21VDC (3-5S LIPO) PDB: 4 X 30A (MAX. 4 x 35A) BEC: 5V/2A, 12V/0. Size: 51 x 35 x 4mm/2 x 1.38 x 0.16 inch. Net weight: 15g. PDB: (ESC outputs) Continuous current: 30A per output. Peak current (10 seconds/minute): 35A per output. Physical: 2oz copper, 4-layers &1.6mm PCB. 1x Battery input, 4x ESC outputs. 2x BEC 5V outputs, 2x BEC 12V outputs.Camera signal & Gnd pads, Video Transmitter Signal & Gnd pads. 1x Serial port (RX, TX, G)
Mounting holes 30.5mm square spacing3mm. BEC 5V (outputs) Designed for RC Receivers, Flight controllers, OSD, and Servos. DC/DC synchronous buck regulator. Voltage: 5.0 /- 0.1VDC. Continuous current: 2 Amps (Max.2.5A 10s/minute) Output Ripple: 40mV (VIn=16V, VOut=5V2A load) Short-circuit tolerant (5 seconds/minute) BEC 12V (outputs) Linear regulator, very low noise. LC Filter is needless. Designed for Video TX or FPV camera.
Voltage: 12.0 /- 0.3VDC (4-5S operation) Continuous current: 500mA16V IN, 400mA20V IN. Short-circuit tolerant (2 seconds/minute) If the battery is 3S LiPo, Output voltage=3S LiPo voltage - 1V. Current Sensor. 140A. If current >140A. STOSD display 140A
Color: picture color. Material: pvc
STOSD-8
1) Running indicator
Blue LED blinks: STOSD is initializing
Blue LED light: STOSD is working.
2) Autodetect PAL/NTSC
Auto sense PAL / NTSC cam at OSD startup. Default is NTSC without Cam signal
3) Dynamic on screen info
Current < 2A & keep 5 seconds
Current > 2A
4))
