6X (WeMos D1 mini I2C kettős motor meghajtó pajzs meghajtó modul TB6612FNG M7Y9)

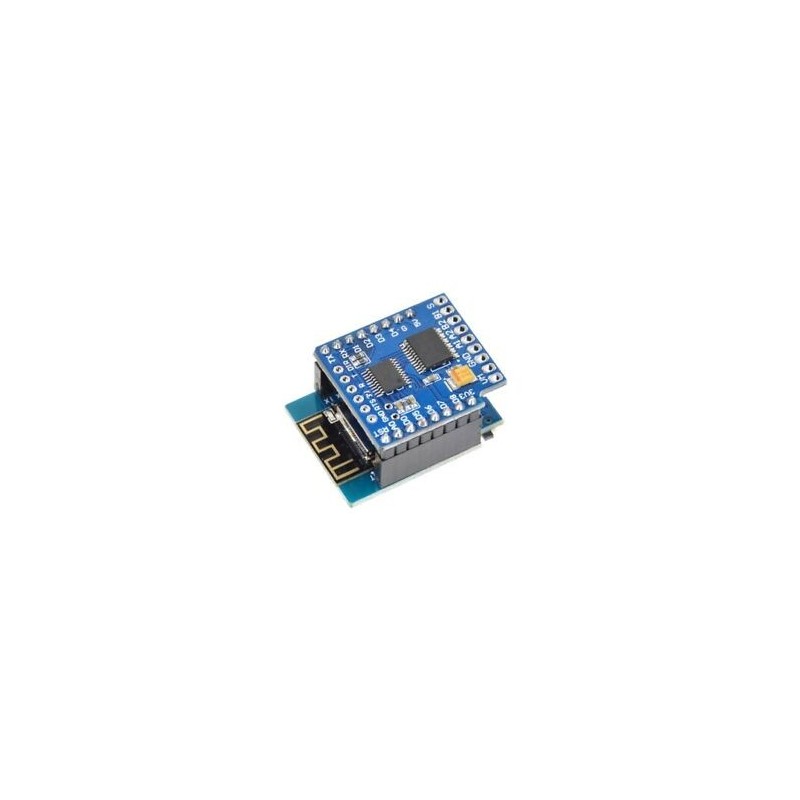

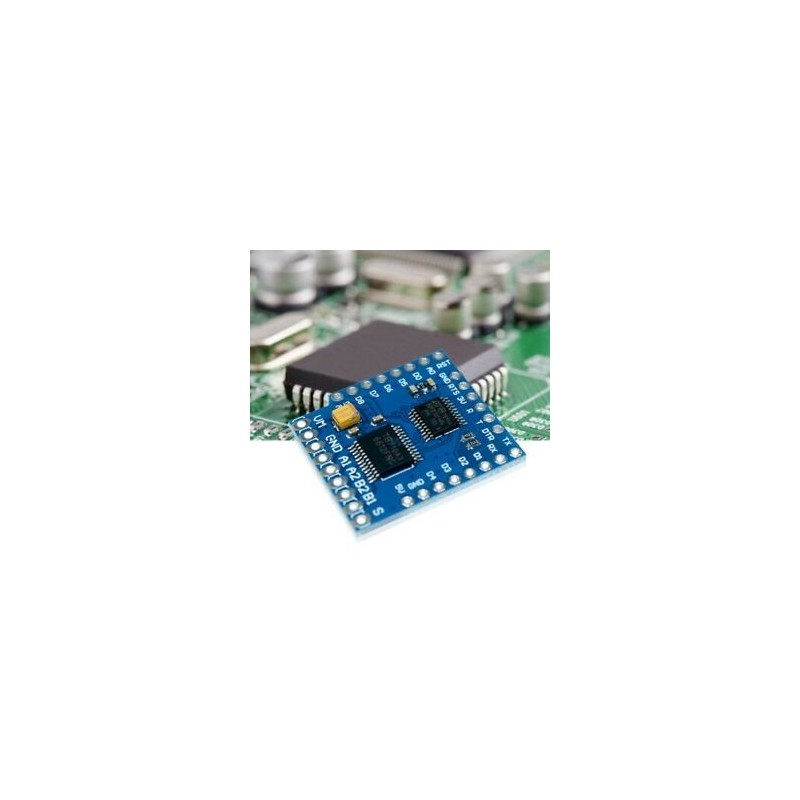

6X(WeMos D1 mini I2C Dual Motor Driver Shield Driver Module TB6612FNG M7Y9)

6X(Features:
I2C interface
Power supply voltage: VM=15V max
Output current: Iout=1.2A(average) / 3.2A (peak)
Standby control to save power
CW/CCW/short brake/stop motor control modes

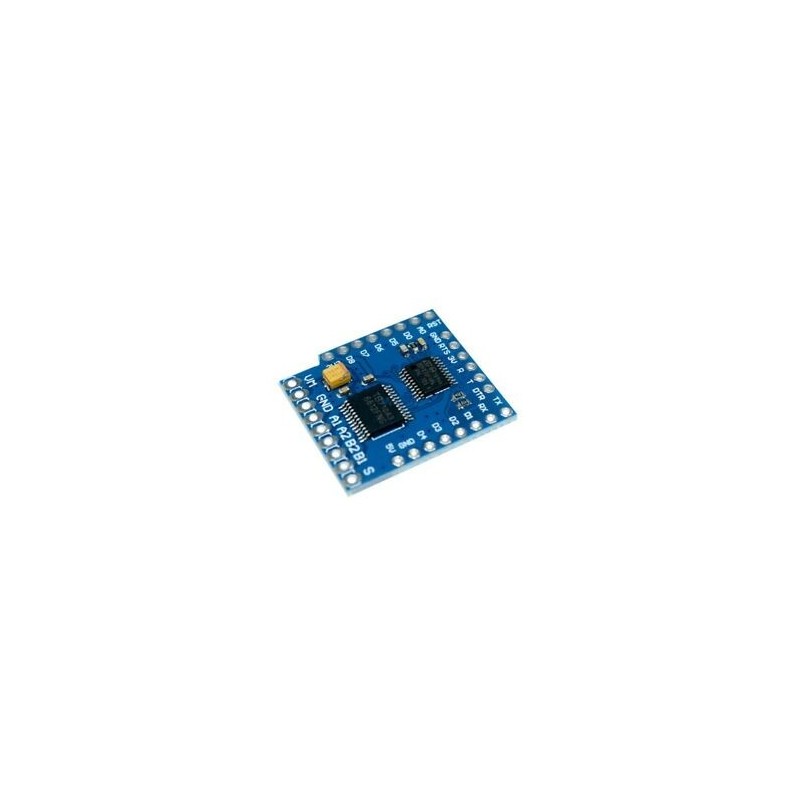

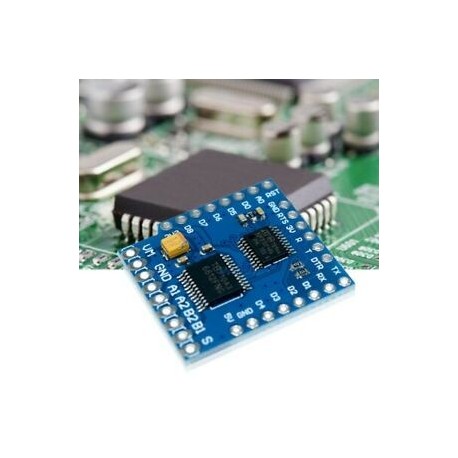

Pins Description
VM: Motor power supply (Max 15Vdc)
GND: Motor power supply
A1 A2: Motor A
B1 B2: Motor B
S: Standby control port (in IO mode)
1. Stanby control mode
I2C mode: Control TB6612`s STBY with I2C protocol
IO mode: Control TB6612`s STBY with "S" pin
2. Shield reset mode
short: reset with d1 mini (reset at power on or press d1 mini`s reset button)
open: reset by "DTR" pin.
Color: Blue
Material: Plastic

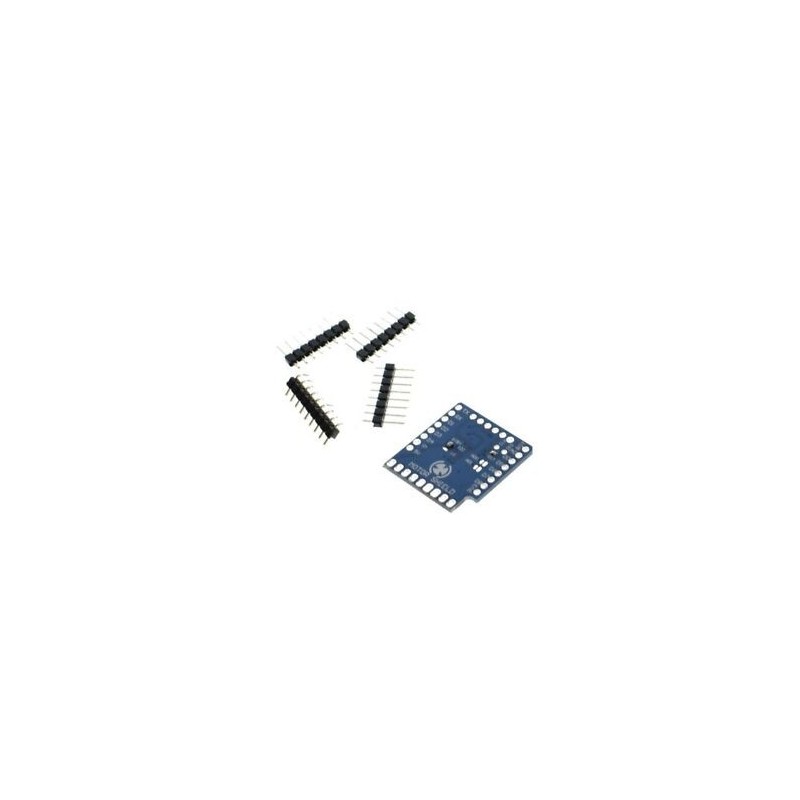

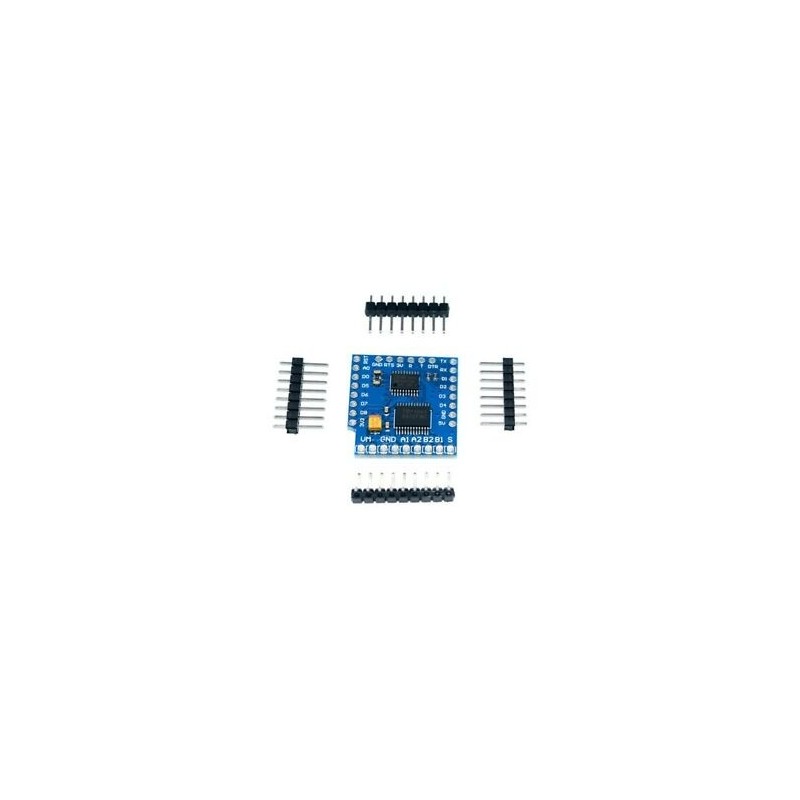

Package including:
1xMotor Shield
3x8P 2.54mm pins
1x9P 2.54mm pins
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is /- 1-3cm.)
