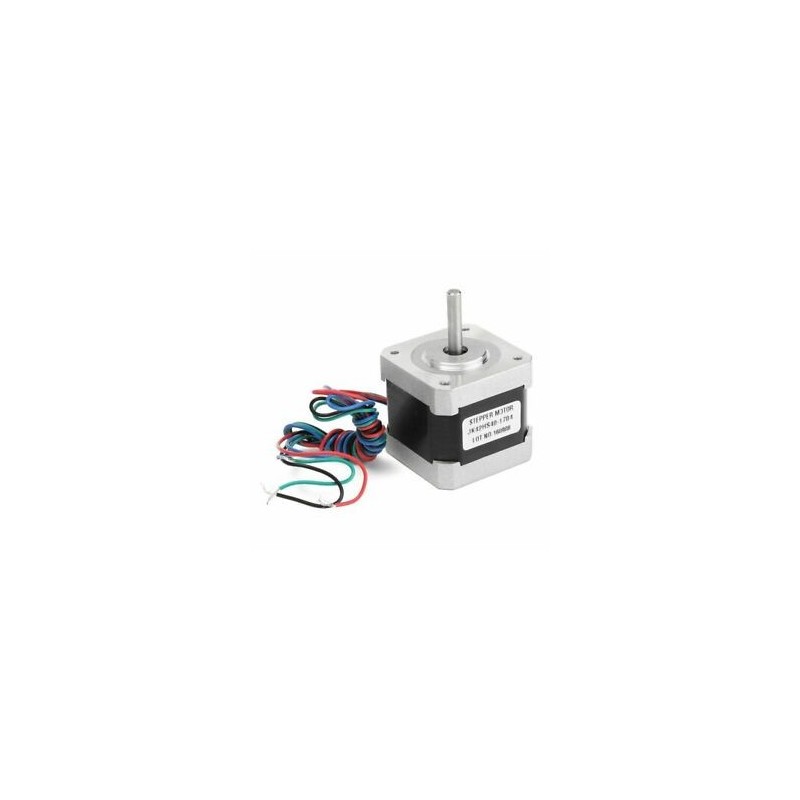

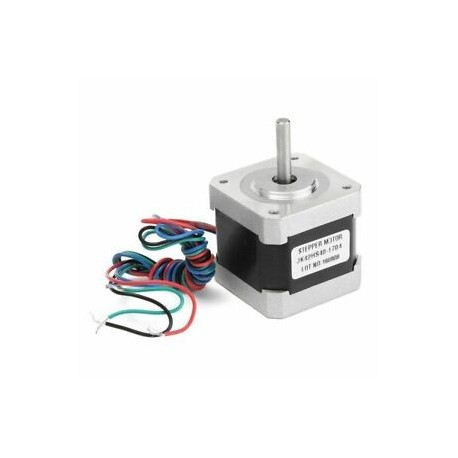

6X(NEMA17 42mm 1.8 Degree 2 Phase 4 Wire Stepper Motor For 3D Printer CNC R K8K3

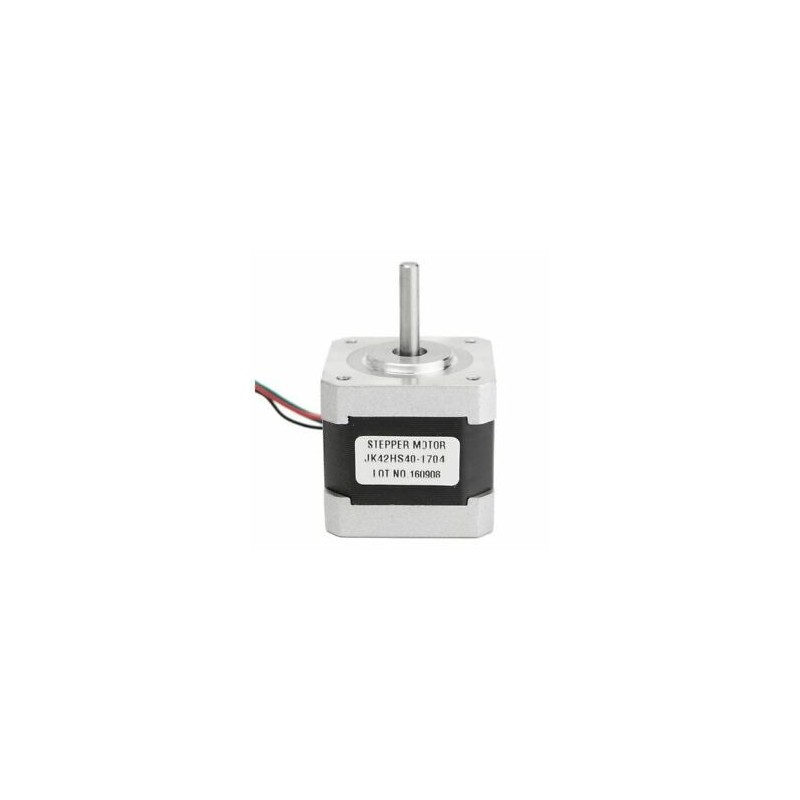

6X(Model: JK42HS40-1704
Phase : 2
Material: Metal
Color: Black
Rated voltage: 12~24 V
Power: 5 W
Current: 1.7 A
Rated Speed: 0~1500 RPM
Rated torque: 0.42 NM
Step angel: 1.8 Degree
Temp. rise: Max 80 Degrees Celsius
Ambient temp.: -20 Degrees Celsius ~ 50 Degrees Celsius
Insulation resistance: 100 MOhmmin.(500V DC)
Dielectric strength: 500VAC for 1 minute
Shaft Radial Play: 0.02 Max. (450 g-load)
Shaft Axial Play: 0.08 Max. (450 g-load)
Max. radial force: 28 N (20 mm from the flange)
Max. axial force: 10 N
Lead style: AWG26 UL1007
Size(L*W*H): 42 X 42 X 40mm
Motor length: 40 (L) mm
Rated current: 1.68A
Resistence per phase: 1.65 /-10% Ohm
Inductance per phase: 3.2 /-20% mH
Holding torque: 3.6 kg.cm
# of leads No.: 4
Detent torque: 150 g.cm
Rotor interia: 54 g.cm
1.Lead wire connection: Black A ,Green A -,Red B ,Blue B -.
2.Adapter Drive JK0220 (drive voltage DC12V ~ 36V, AC12V ~ 24V, current range 0.3A ~ 2.0A).
3.Fits for 3D printers, monitor equipment, medical machinery, textile machinery,packaging machinery, stage lighting and so on .
Package Included:
1 x Stepper Motor
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is /- 1-3cm.)
