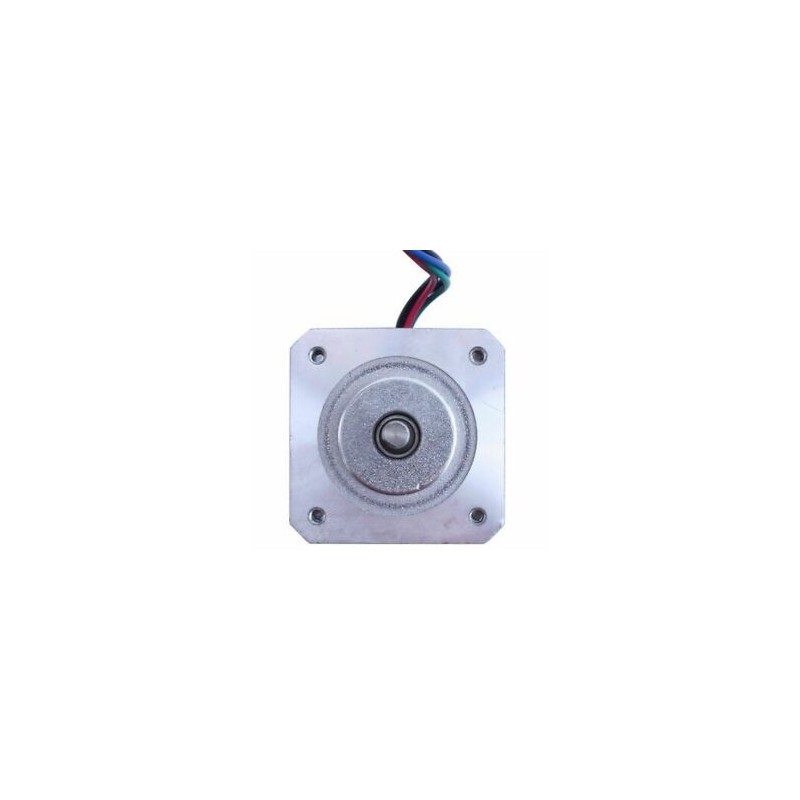

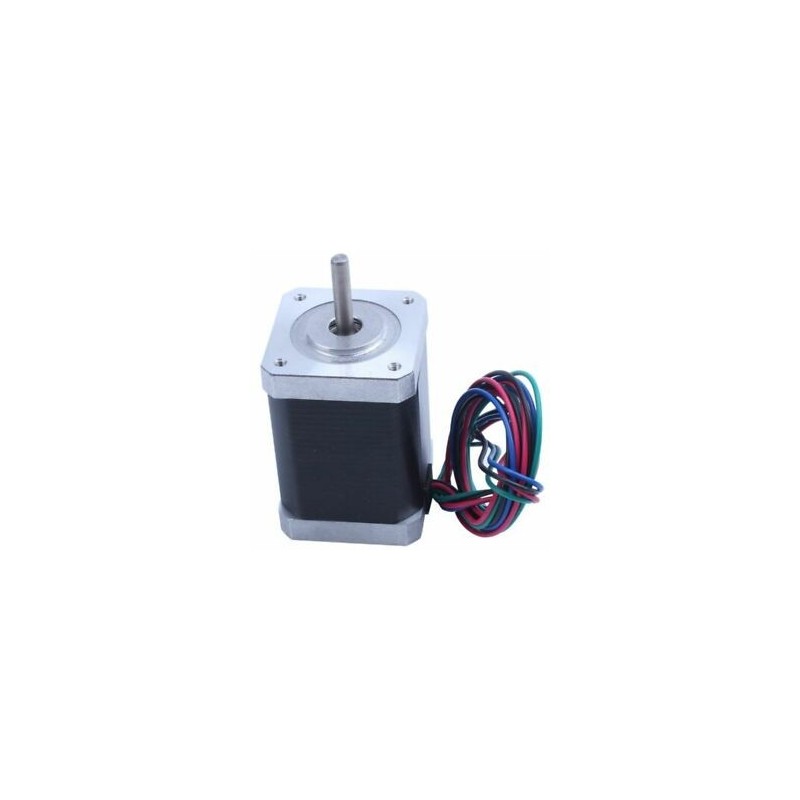

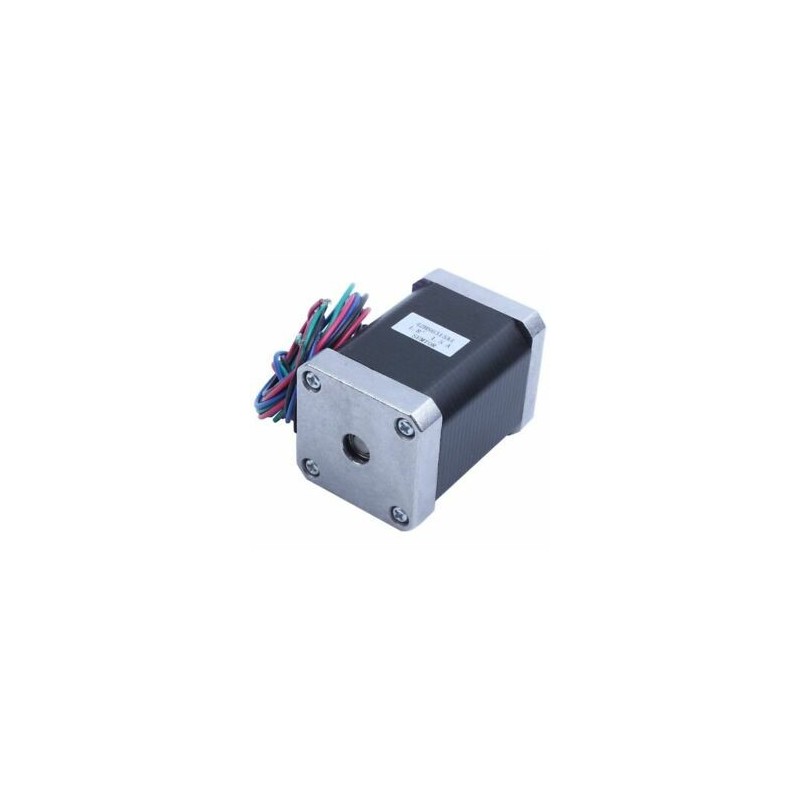

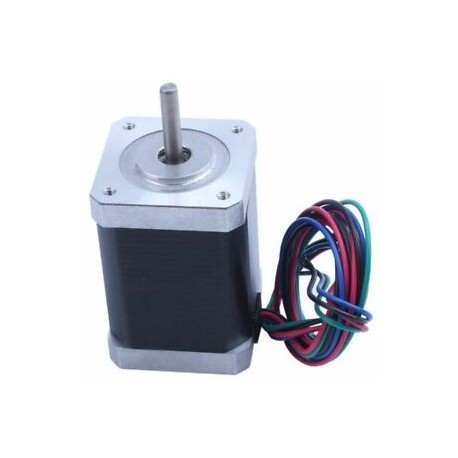

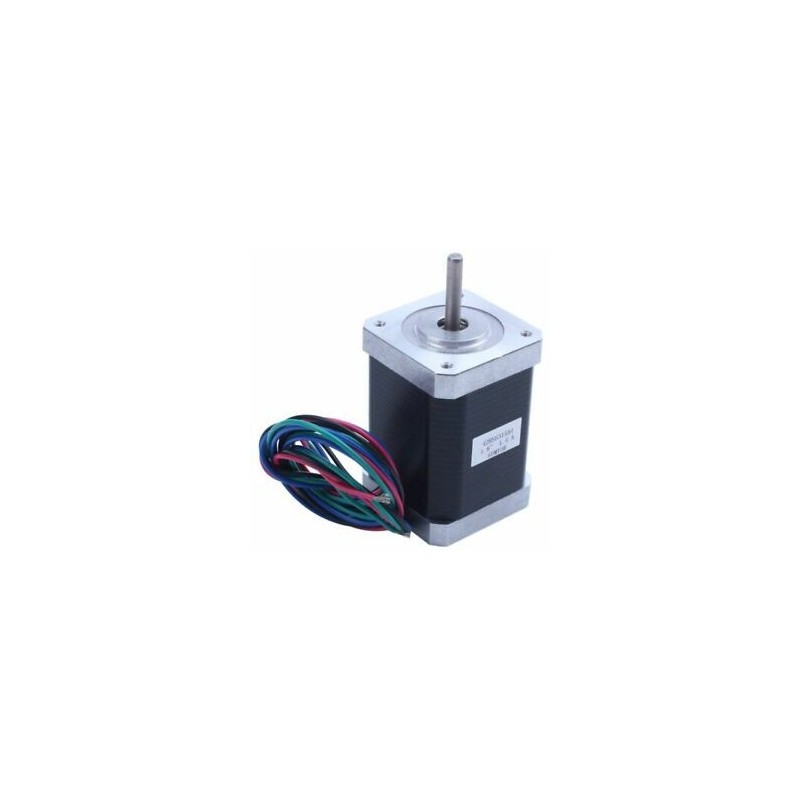

6X(NEMA 17 2 Phase Mill Robot Lathe CNC Stepper Motor 48mm 1.5A 107oz.in S6Q1)
6X(Product Name : Stepper Motor
Model No. 42HS6315A4
Frame Size : 42 x 42mm (Nema 17)
Step Angle : 1.8
Rated Current : 1.5A
Motor Resistant : 3.8 Ohm
Motor Inductance : 8.5 mH
Holding Torque : 75 N.cm/ 107 oz.in
Detent Torque : 3.5 N.cm/ 5 oz.in
Rotor Inertia : 63g.cm
Shaft Diameter : 5mm/ 0.2inch
Shaft Length : 24mm/0.94inch
Motor Length : 62 mm/2.44inch
Cable Length : 55cm / 21.7inch
Mouting Hole Dia : 3mm/0.12inch
Material : Metal, Plastic, Electronic Parts
Color : Black, Silver Tone
Weight : 523g
Package Content : 1 x Stepper Motor(Non-OEM)
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is /- 1-3cm.)
