6X (GM328 multifunkcionális LCD tranzisztor tesztelő DIY készlet dióda kapacitása Vo Q6E4

6X(GM328 Multifunctional LCD Transistor Tester DIY Kit Diode Capacitance Vo Q6E4

6X(Digital LCD display for easy readings, can display measured data and .
Rotary switch control, a key measurement for convenient use.
Main chip is the DIP, easy for electronic enthusiasts to DIY or update the main chip.
Use 9V battery(not included), can also use DC power(DC 6.8-12V).
Automatic shutdown, shutdown current is only about 20nA.
Multi-functional transistor tester for automatic detection of NPN and PNP transistors, FET, diodes, dual diode, thyristor, SCR, automatic identification of the transistor pinout. Also can be used as square signal and PWM signal generator. The DIY acrylic DIY case can efficiently protect the tester.
Notice:Before measuring capacitance, the capacitor must be discharged, otherwise very likely damage the meter.
Specifications:
Display: 160*128 LCD
Power Supply: 1 * 9V Battery(not included); DC 6.8-12V
Current: Approx. 30mA
Power Supply: 1 * 9V Battery(NOT Included)
Resistance Measurement: Max. 50Mohm
Resistance Resolution: 0.01ohm
Capacitance Measurement: 25pF~100mF
Capacitance Resolution: 1pF
DC Voltage Measurement: Up to 50V
Screen Size: 3.7 * 3cm / 1.45 * 1.18inch
PCB Size: 7.8 * 6.2cm / 3.1 * 2.44inch
Product Weight: 66g / 2.3oz
Case Material: Acrylic
Case Size: Approx. 96 * 82 * 28mm / 3. 8 * 3.2 * 1.1inch (L * W * H)
colour:red
material:CCL

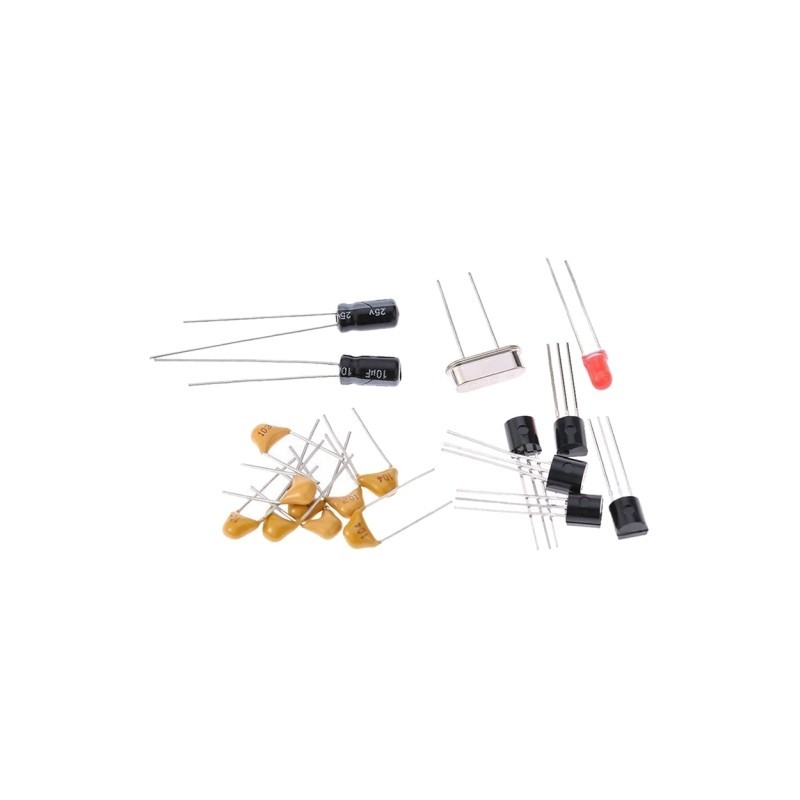

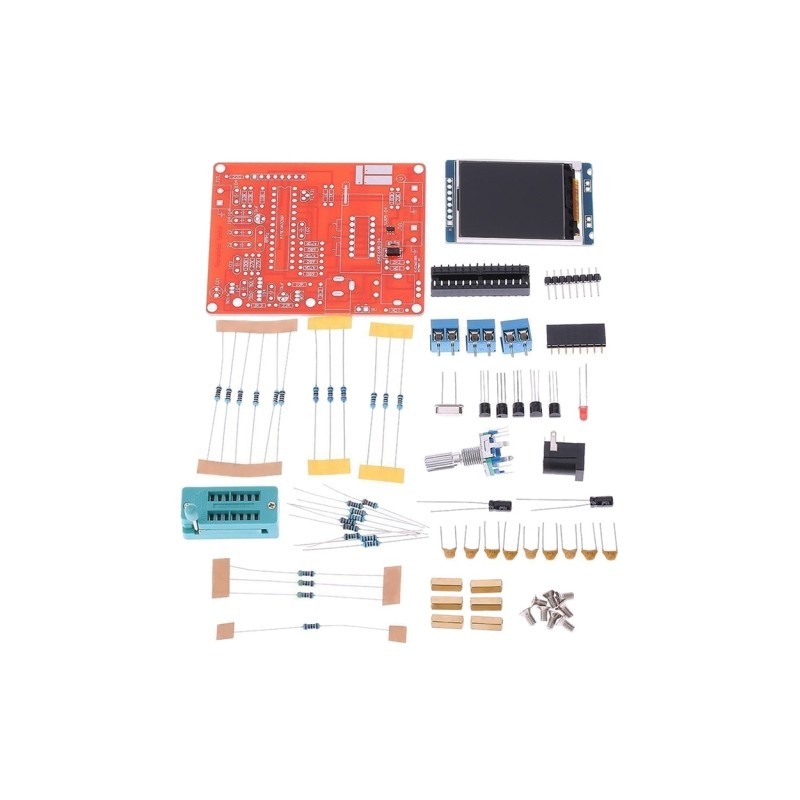

Package List:1 * DIY Transistor Tester Module

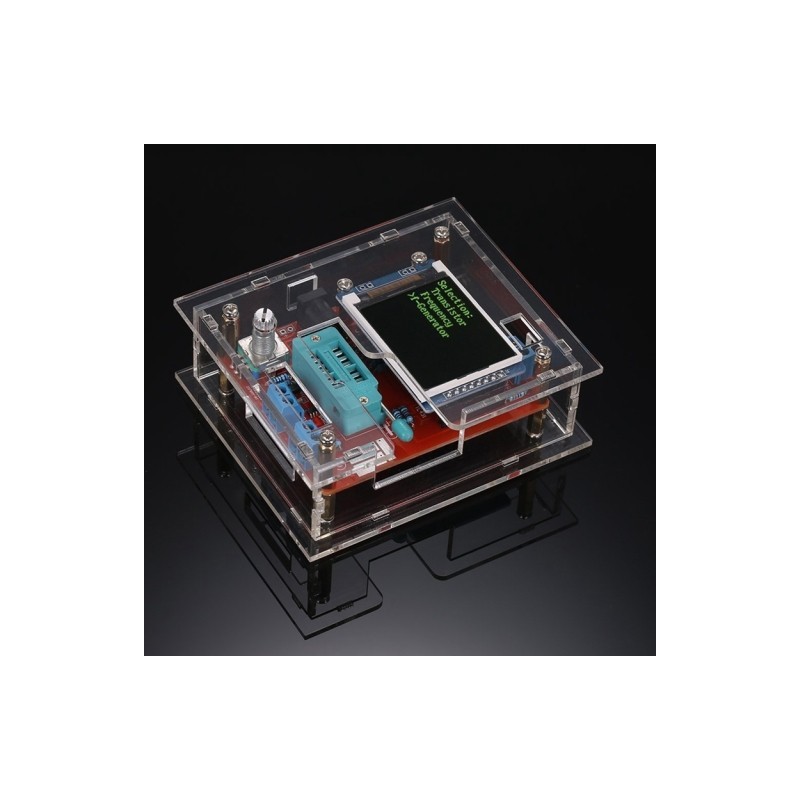

1 * DIY Acrylic Case
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is /- 1-3cm.)
