6X (Dc 12V-36V 500W motorvezérlő Hall Pwm vezérlő illesztőprogram nélkül, Boa F7H8

6X(Dc 12V-36V 500W Motor Controller for Without Hall Pwm Control Driver Boa F7H8

6X(SMT process, high quality.

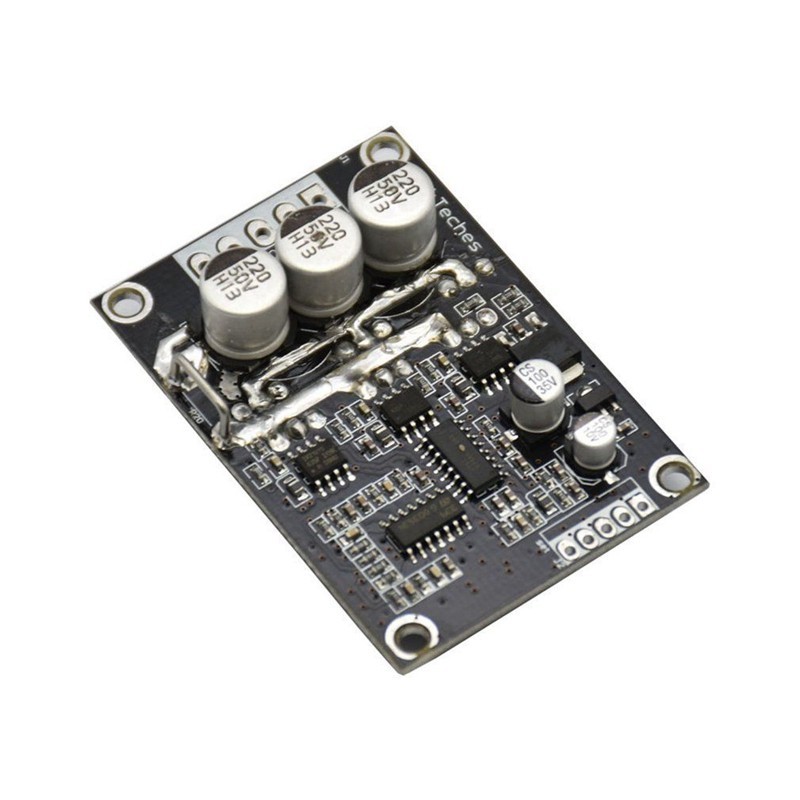

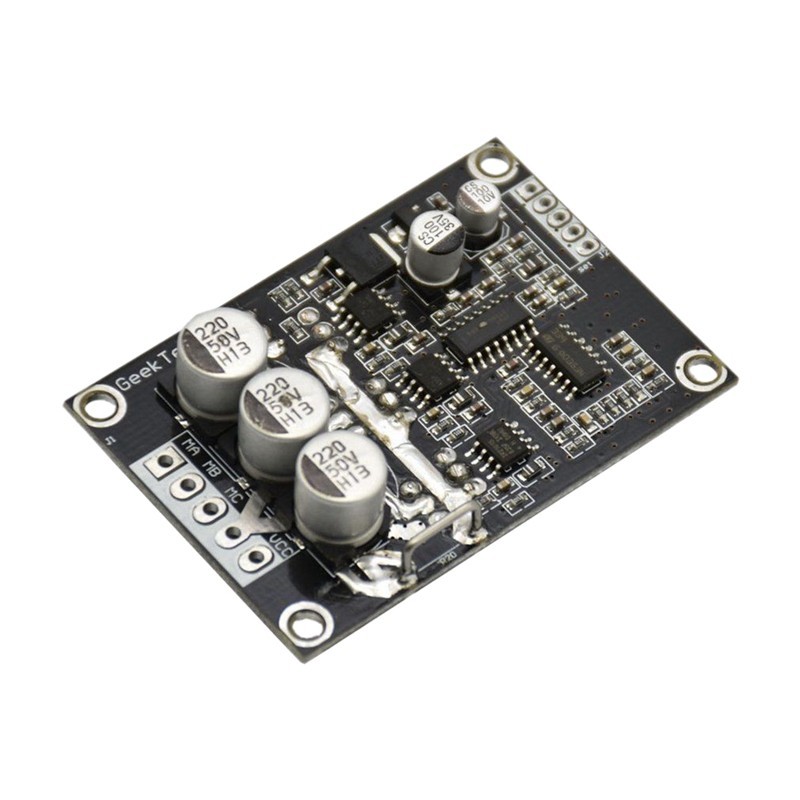

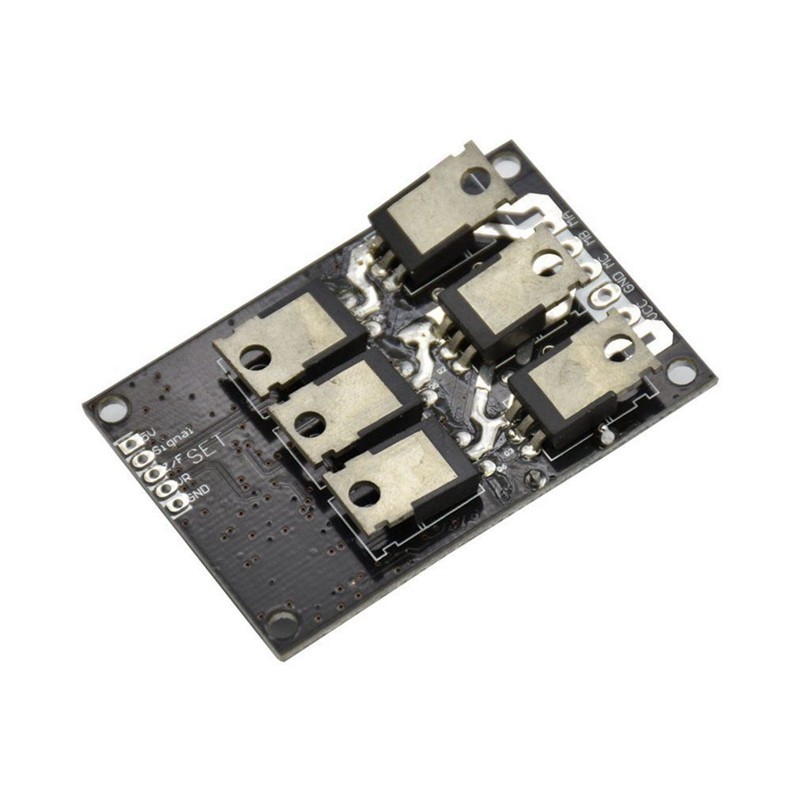

DC brushless motor driver board.
Operating voltage: DC 12V to 36V; operating current ≤15A.
With speed control function, 0.1V-5V speed voltage.
Over-current protection and speed signal.
Drive Power: ≤500W
Colour: Black
Material: metal PC
Operating Temperature: -40~85°C
Humidity: ≤90% RH
Over-current Protection: Yes
Speed Signal: Pulse Speed Signal
Speed Control Function: Yes(external potentimeter control)

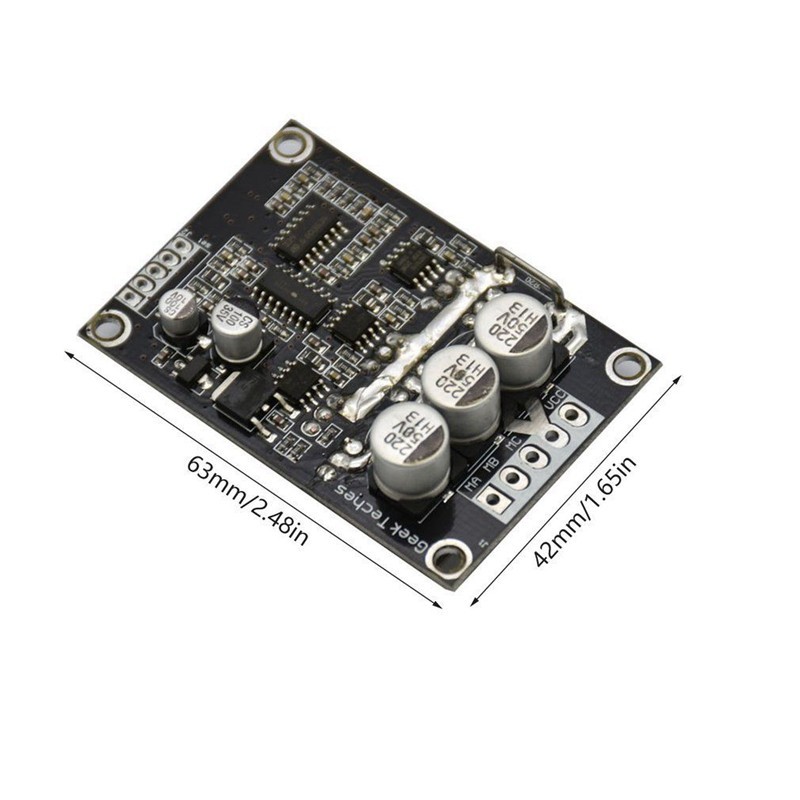

PCB Size: 63 * 42 * 17mm
Weight: 30g
Package included:
1 * Brushless Motor Controller
Note:
This driver board only fits for DC Brushless without Hall sensor three-wire motors to use(Default "Hall" on the board is no function, doesn`t need to connect))
