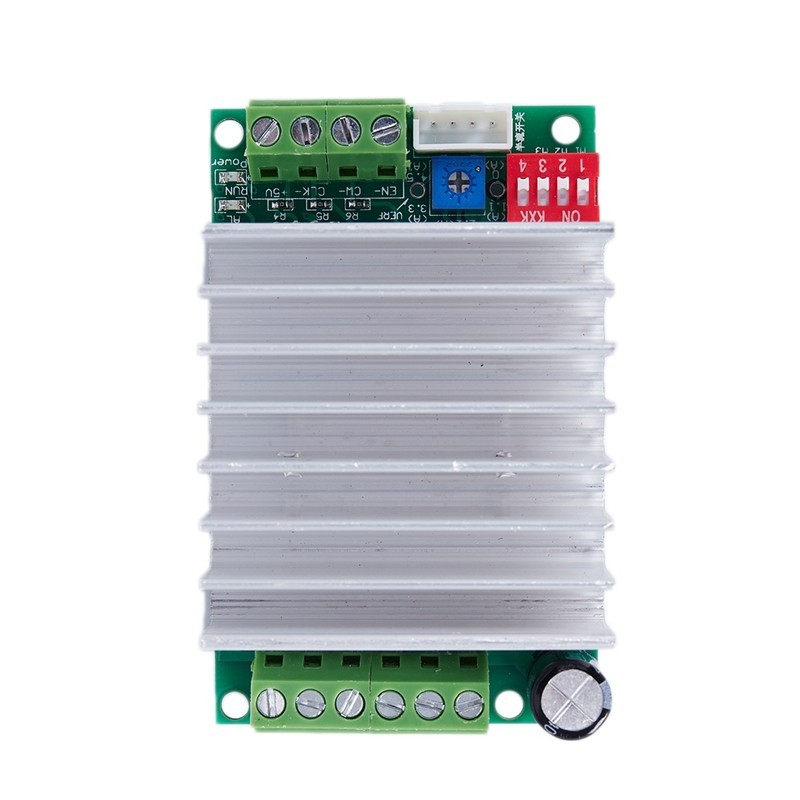

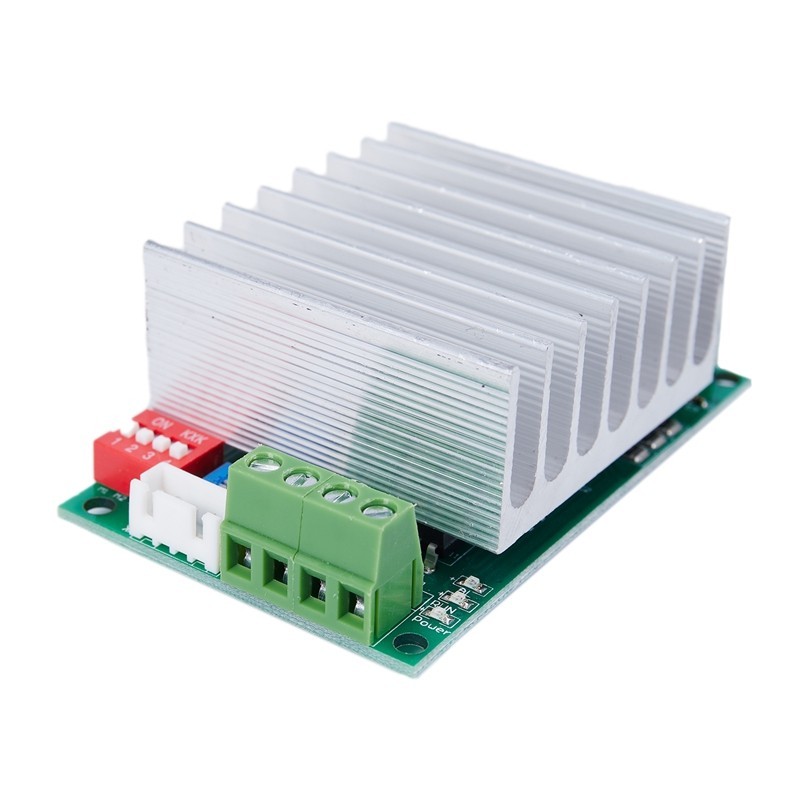

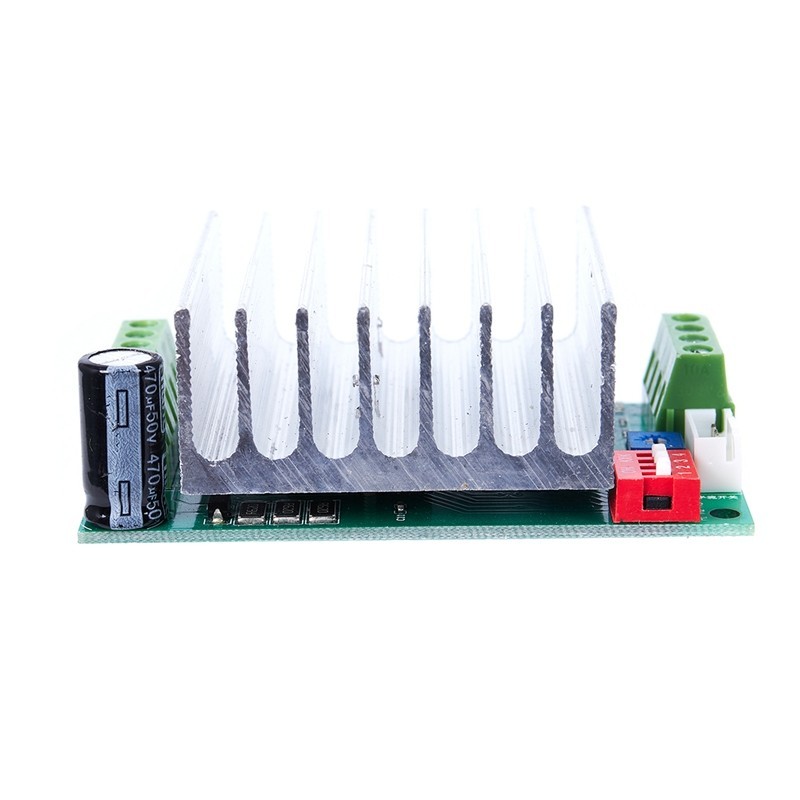

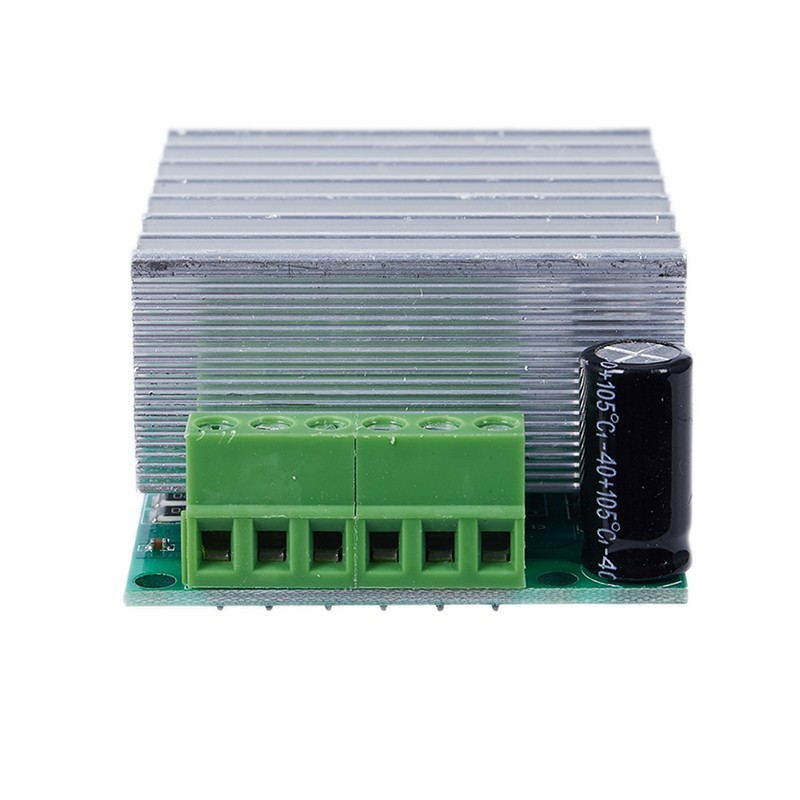

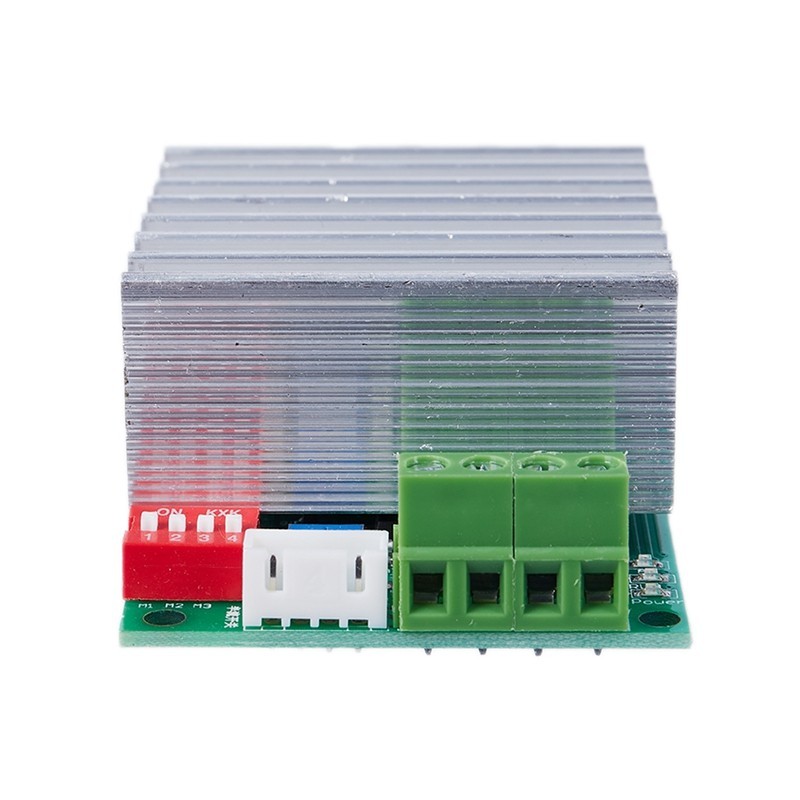

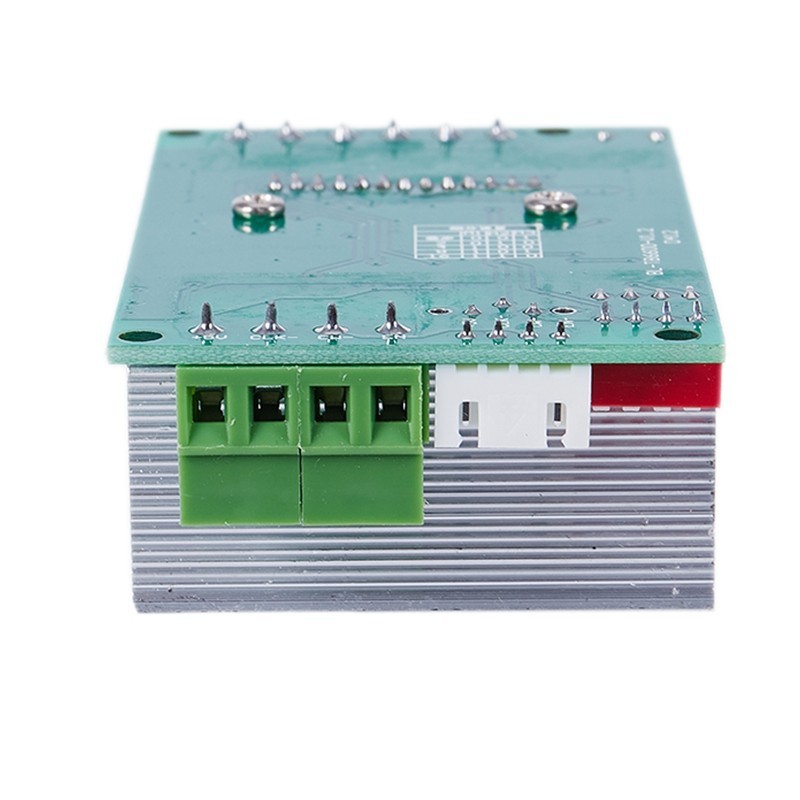

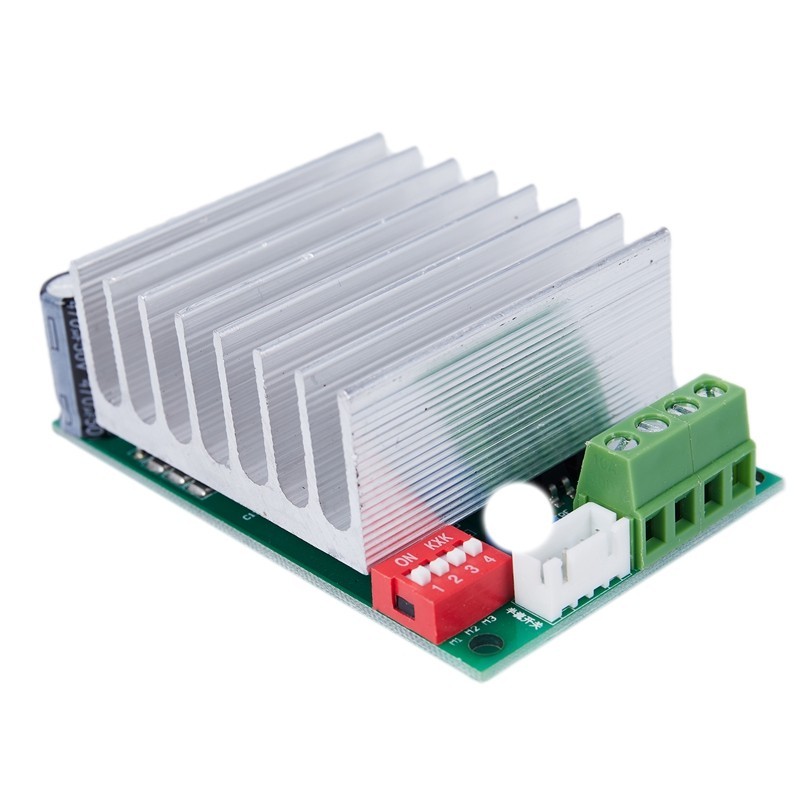

6X (4.5A léptetőmotor hajtja a TB6600 illesztőprogram vezérlő vezérlőjét zöld C7C5)

6X(4.5A Stepper motor drives TB6600 Driver Board Controller Green C7C5)

6X(Output current stepless adjustable to meet your various application requirements.
Automatic half current function. And a semi-automatic flow switch, easy to use.

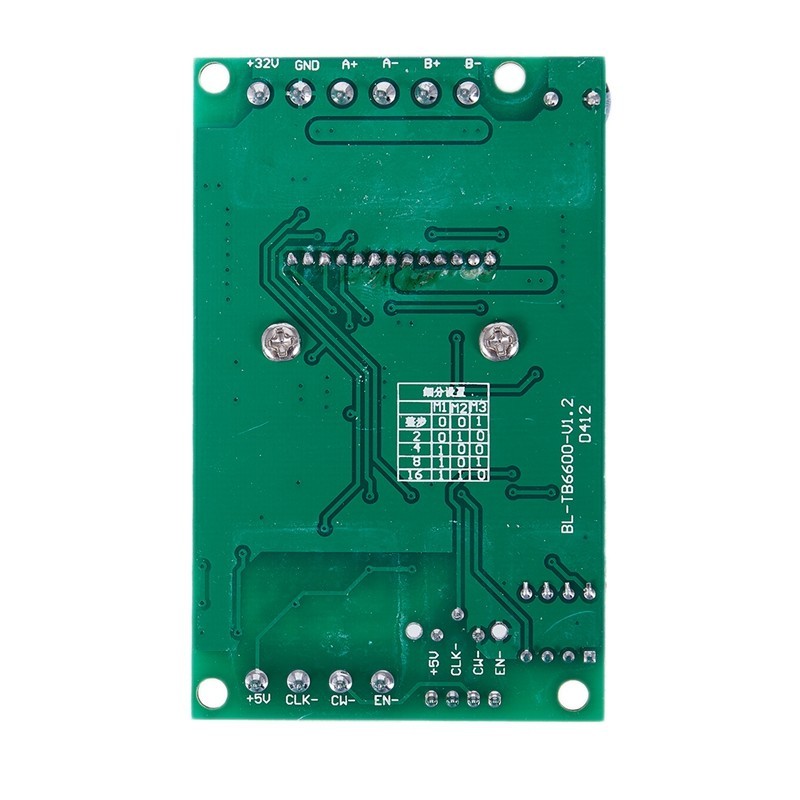

The use of high-speed optical coupling 6N137, ensure high speed without losing step. Printed on the back panel are subdivided setup instructions.
Used to increase the heat sink, good heat dissipation. Output short-circuit protection, the use of mind.
Using common anode input mode, there are two input terminals, wiring more convenient.
Color: Green
Material: metal
Operating voltage: DC 10V-45V.
It is recommended to use DC32V power supply switch power supply.
The use of high-speed optical coupling 6N137, ensure high speed without losing step.
The use of high current, high voltage TB6600HG new original chip, there are low-pressure shut-off, overheating parking and over-current protection circuit, short-circuit protection and increased compared to TB6560.
Rated maximum output reached: /- 4.5A.
4.2A of 42,57,86 fit within the two-phase / four-phase / four-wire / six-wire stepper motor.
Automatic half current function.
Segmentation: full step, half step, 1/4-step, step 1/8, 1/16-step, up to 16 segments.
Size: 82mm * 50mm * 35mm (L * W * H)
Package Contents:
1 x TB6600 Driver Board Controller
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is /- 1-3cm.)
