5X (ZOTEK bilincsmérő automatikusan beállítja a digitális AC / DC árammérő C7U7 szorítót

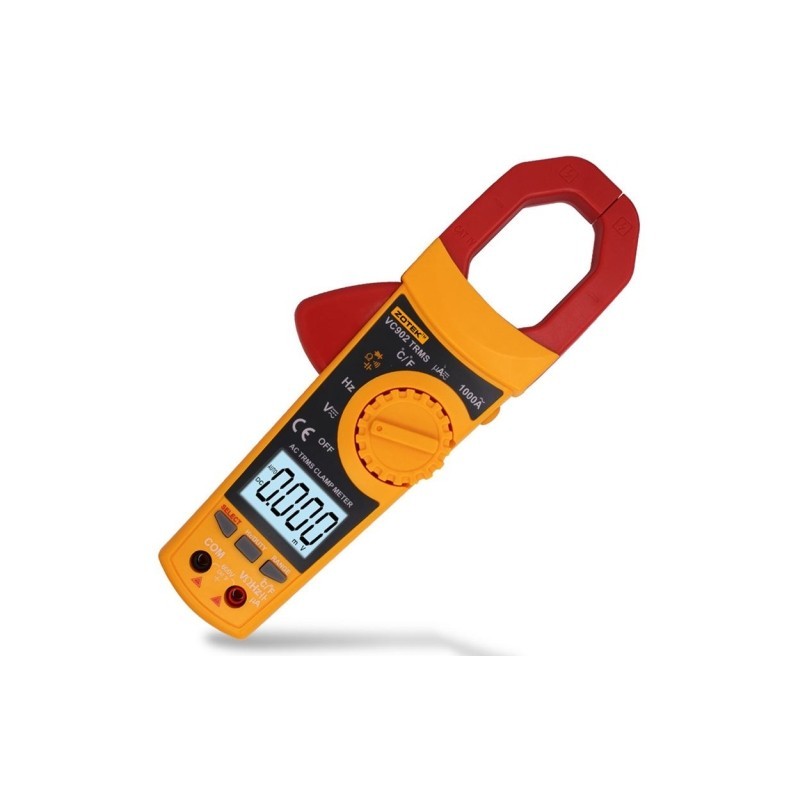

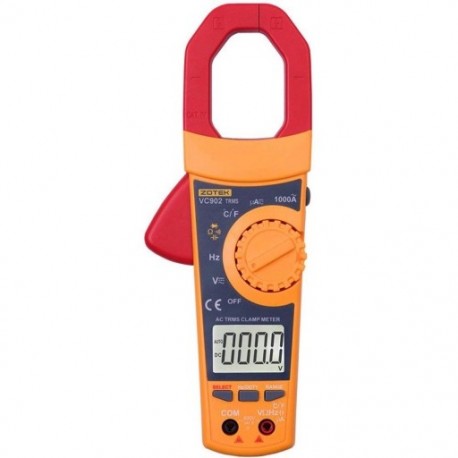

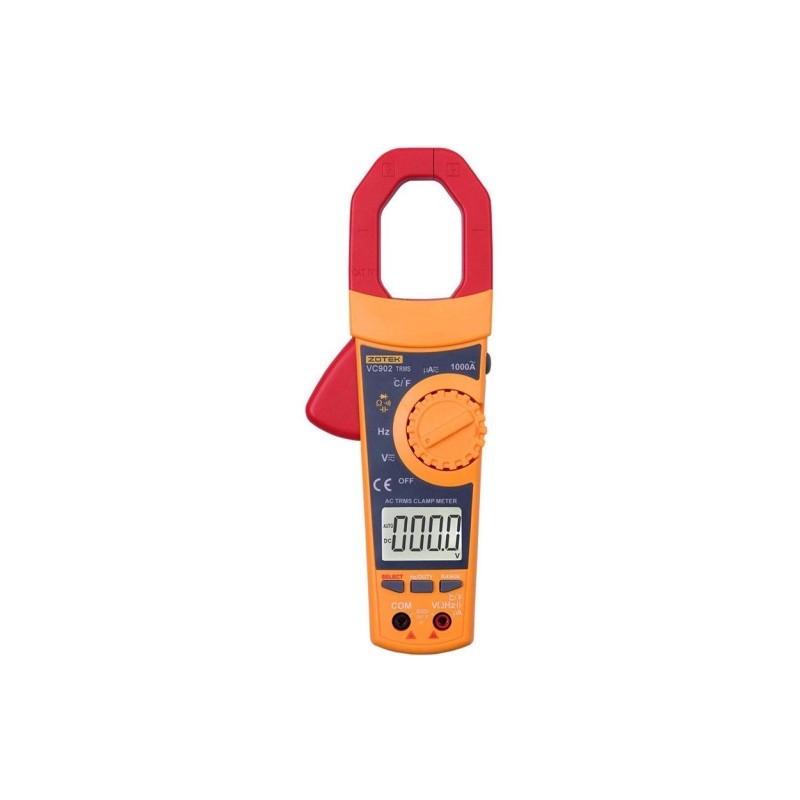

5X(ZOTEK Clamp Meter Autoranging digital AC/DC Current Measurement Clamping C7U7

5X(1000A high current,low current measurement.
Auto/manual ranges,True RMS measurement,Auto power off.
Large LCD display,MAX display 6000 counts,Sample rate: 3 times per second.
550V protection in resistance and capacitance ranges,backlight,Data hold,Polarity identification,Low voltage indication.
This is an excellent tool for generator users. It will measure start up motor surge amps and steady state current.
Main measurements: AC/DC Voltage, AC/DC Current, Resistance,Capacitance, Diode and Continuity Testing,Temperature, Frequency and duty cycle.
AC volts: 0.1mV to 750V
DC current: 0.1uA to 6000uA
Specifications:
(1)frequency: 5/50/500/5k/50k/500k/5M/10M ( /-0.1 3)
(2)Temperature: -20 Celsius to 1000 Celsius (-4 Fahrenheit to 1832 Fahrenheit )
(3)capacitance: 10nF( /-5.0 20),100nF/1uF/10uF/100uF( /-2.0% 5),1000uF/10000uF ( /-5.0% 5)
(4)DC volt: 600mV( /-1.0% 10), 6V/60V/600V/1000V( /-0.5% 3)
(5)AC volt: 600mV( /-3.0% 3),6V/60V/600V/750V( /-1.0% 3)
(6)DCA: 600uA/6000uA( /-0.8% 10)
(7)ACA: 600uA/6000uA( /-0.8% 10),60A/600A/1000A( /-2% 30)
(8)Resistance: 0.1Ohm to 60MOhm
(9)Duty cycle: 1% to 99% ( /-1% )
(10) Measurement mode: Double-integral style A/D transform
(11)Over range indication: OL
(12) Working environment: 0~40 Celsius , relative humidity Less than 80%
(13) Supply power: 3V (1.5V AA batteries * 2 Pcs)
Weight: 510g
thermocouple , and two 1.5V batteries
Color: yellow
material: plastic
Size: 24x9x4.5cm

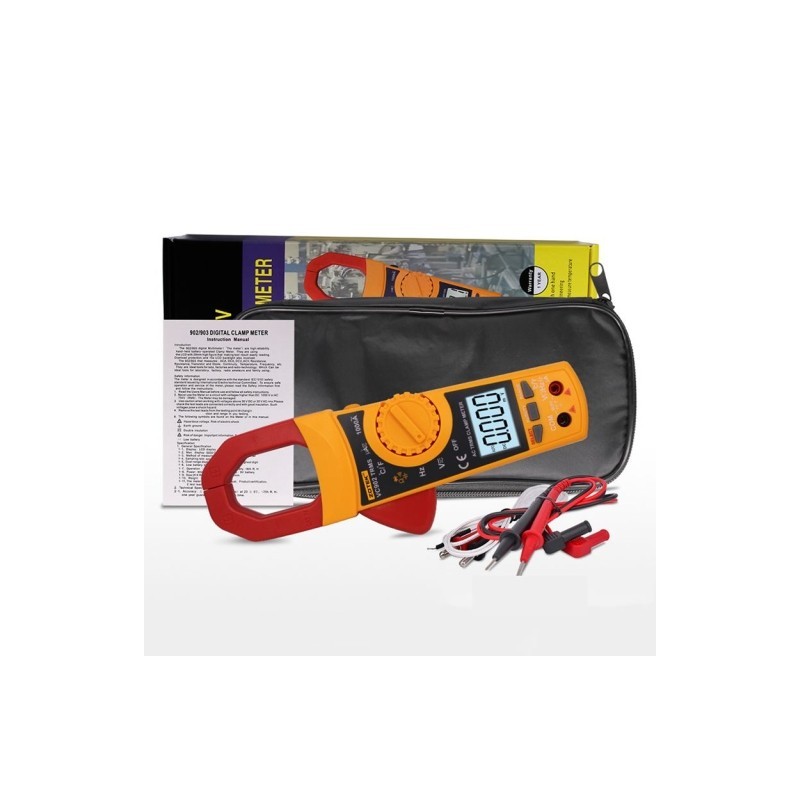

Package Contents:
1xUser`s manual
1xouter packing box
1xbag
2xtest leads
1xTP01K
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is /- 1-3cm.)
