5X (5–12 V DC kefe nélküli illesztőprogram-vezérlő a 3/4 Wir M1V2 merevlemez-motorhoz)

283490729675

Új termék

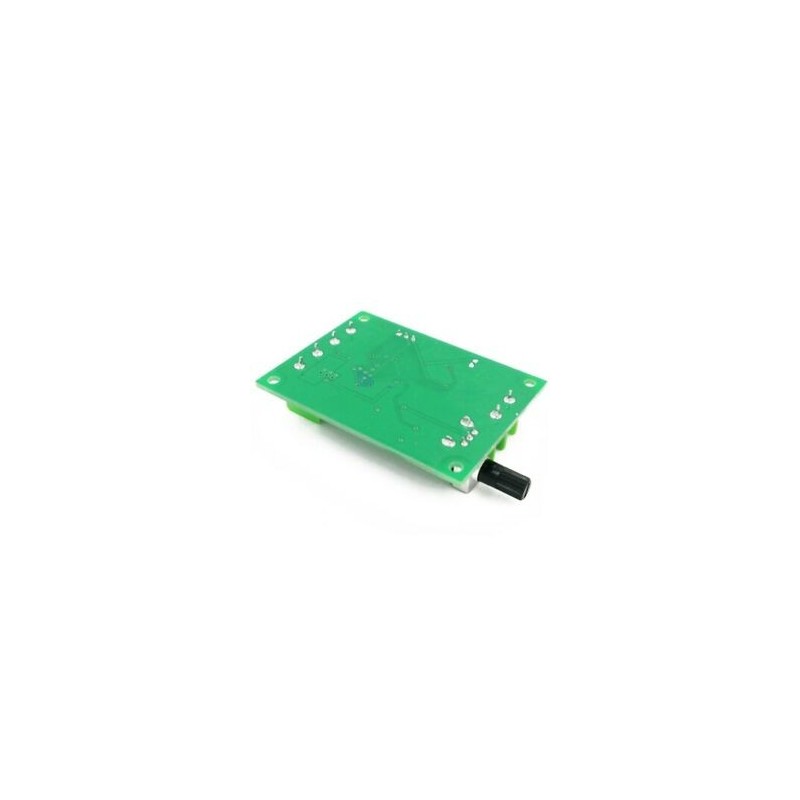

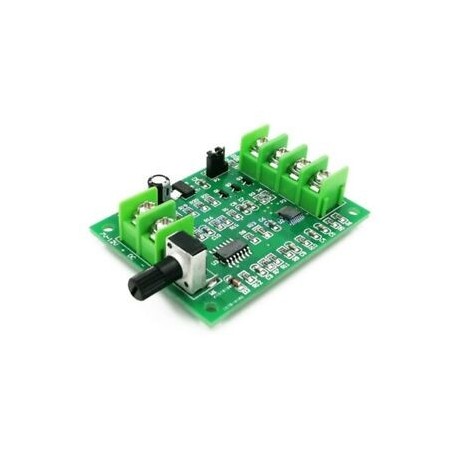

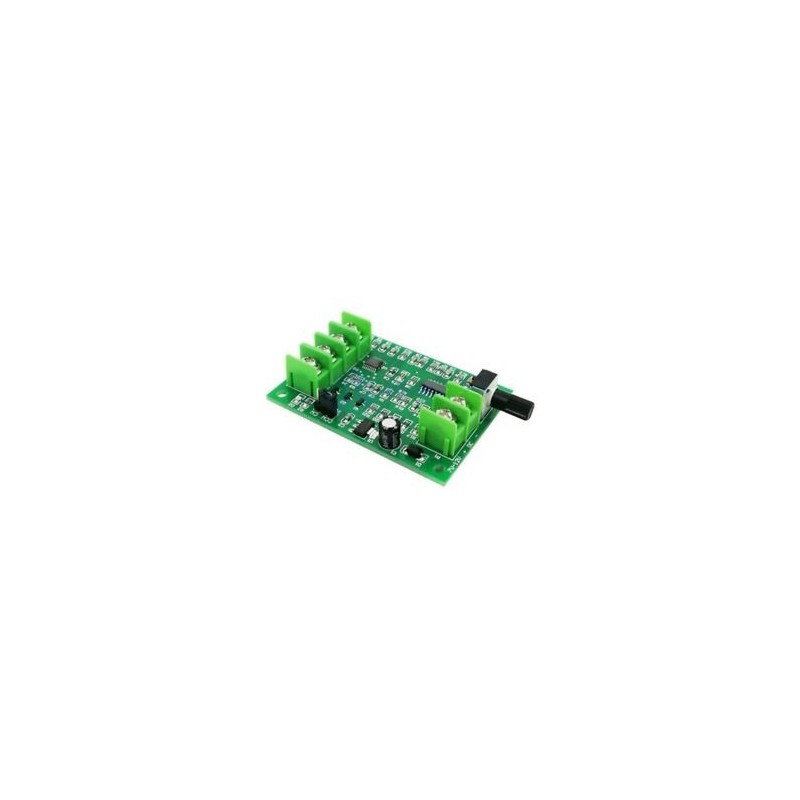

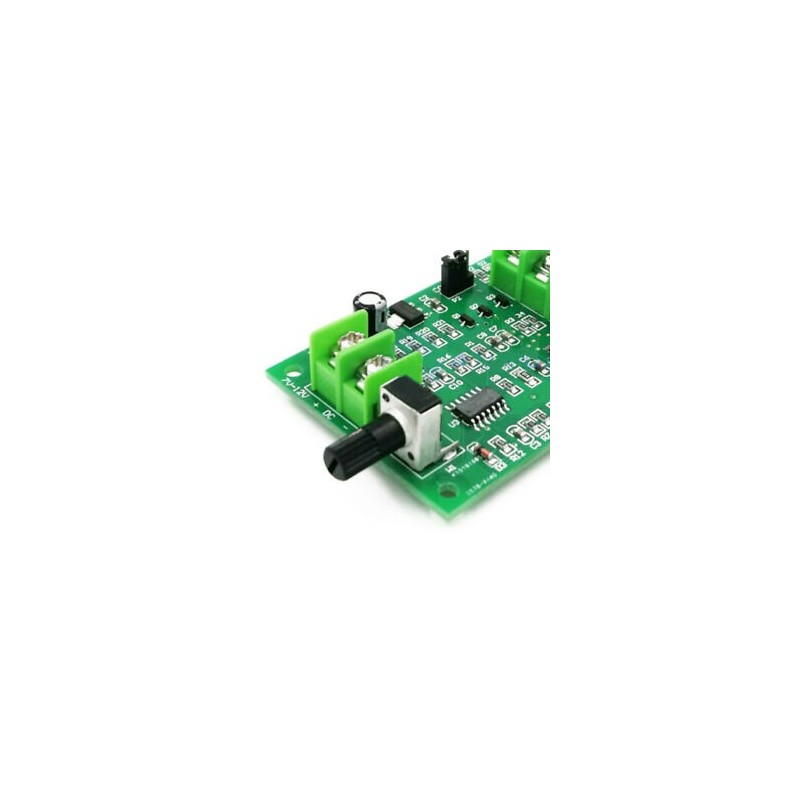

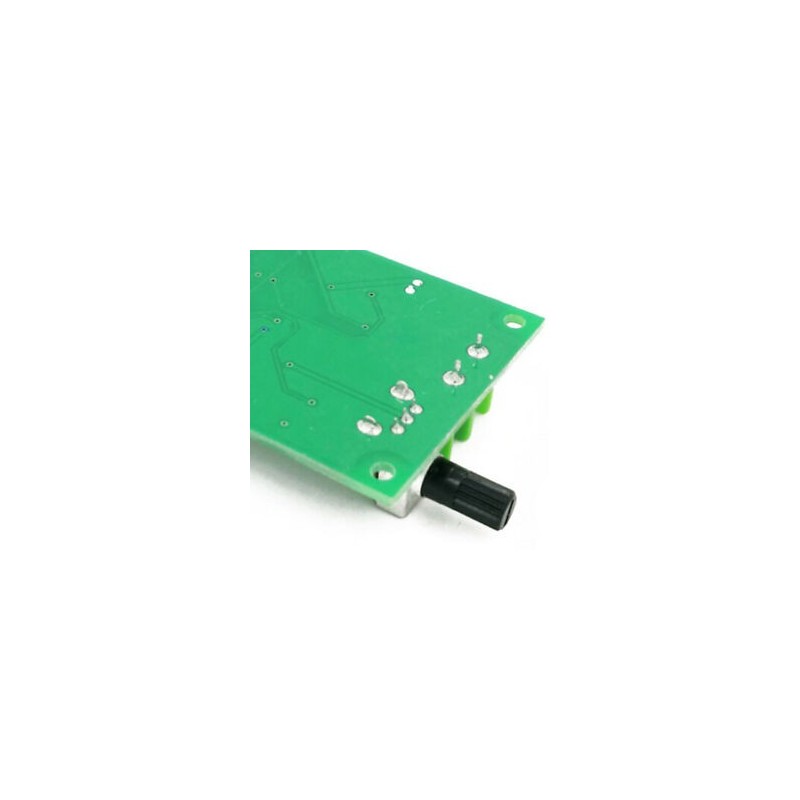

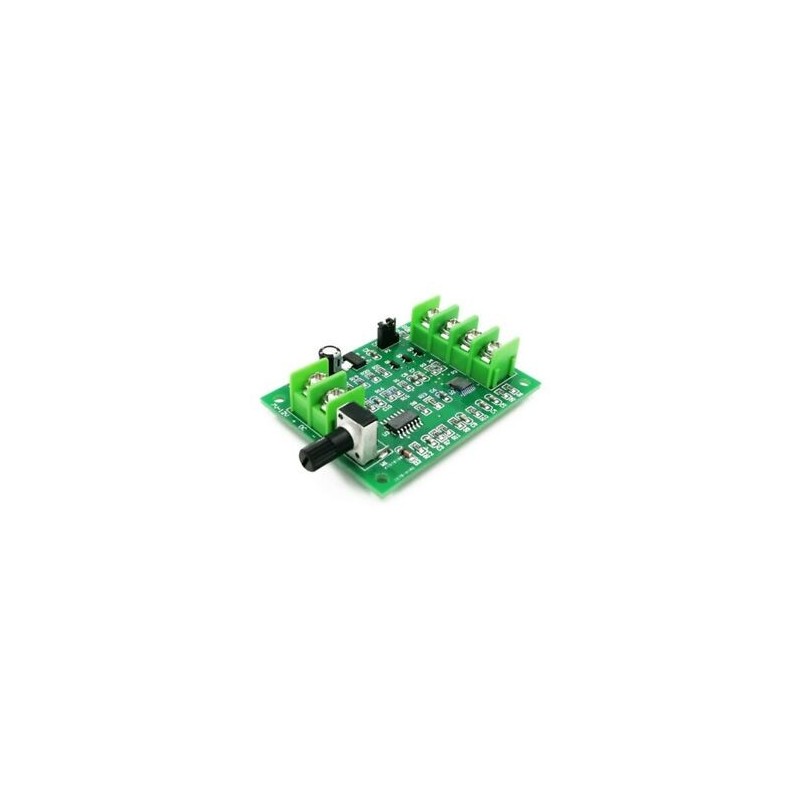

5X(5V-12V DC Brushless Driver Board Controller For Hard Drive Motor 3/4 Wir M1V2

5X(100% brand new and high quality
Material: ABS
Color: Green
The driver board can drive hard disk brushless motors ,CD-ROM brushless motor and so on ,the Micro-3-wire or 4-wire without hall brushless motor, It`s have reverse voltage protection , Over current protection , Phase inversion control
Driver voltage: DC5-12v
Working voltage: less than equal 1.2A
Speed adjust: 0% -100%
Note: Brushless motor line of receiving terminal drive plate must be pressed sturdiness, poor contact will lack of phase operation and burn out the chip.Board terminals fixed screw clearance, please use coarser line connected to the board.

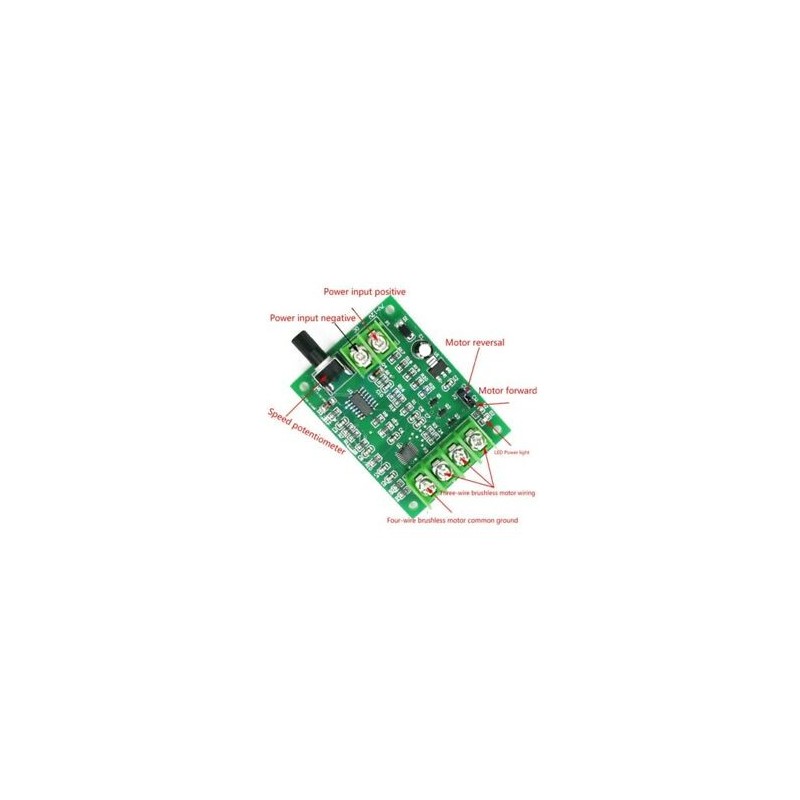

How to identify four line motor public port: use the resistance of the multimeter * gears test this four terminal,One of the terminals and the other three terminal resistance value of the minimum and equal
So it`s COM terminal
Size: 6*4.5cm/2.36*1.77 inch
Quantity: 1Pc
Package includes:
1Pc x 5V-12V DC Brushless Motor Driver Board Controller
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is /- 1-3cm.)

Bővebb leírás

3 583 Ft‎

-51%

7 313 Ft‎

Egyéb infó

5X(5V-12V DC Brushless Driver Board Controller For Hard Drive Motor 3/4 Wir M1V2

5X(100% brand new and high quality
Material: ABS
Color: Green
The driver board can drive hard disk brushless motors ,CD-ROM brushless motor and so on ,the Micro-3-wire or 4-wire without hall brushless motor, It`s have reverse voltage protection , Over current protection , Phase inversion control
Driver voltage: DC5-12v
Working voltage: less than equal 1.2A
Speed adjust: 0% -100%
Note: Brushless motor line of receiving terminal drive plate must be pressed sturdiness, poor contact will lack of phase operation and burn out the chip.Board terminals fixed screw clearance, please use coarser line connected to the board.
How to identify four line motor public port: use the resistance of the multimeter * gears test this four terminal,One of the terminals and the other three terminal resistance value of the minimum and equal
So it`s COM terminal
Size: 6*4.5cm/2.36*1.77 inch
Quantity: 1Pc
Package includes:
1Pc x 5V-12V DC Brushless Motor Driver Board Controller
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is /- 1-3cm.)
