5X (3D nyomtató alkatrészek 4,3 hüvelykes nyomtatású LCD kijelző 4,3 hüvelykes vezérlőpult Scree Y5M2)

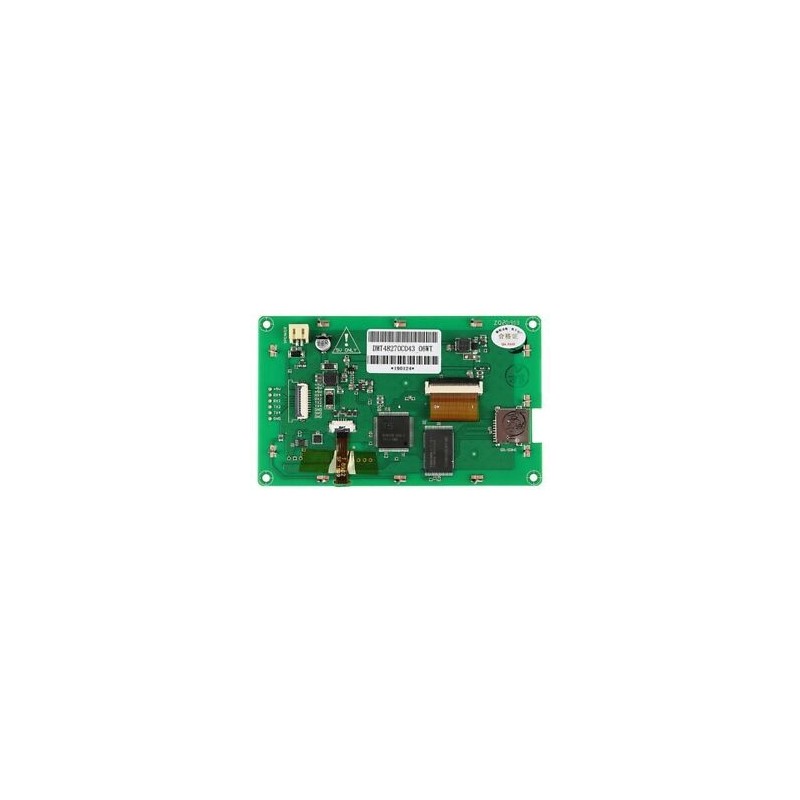

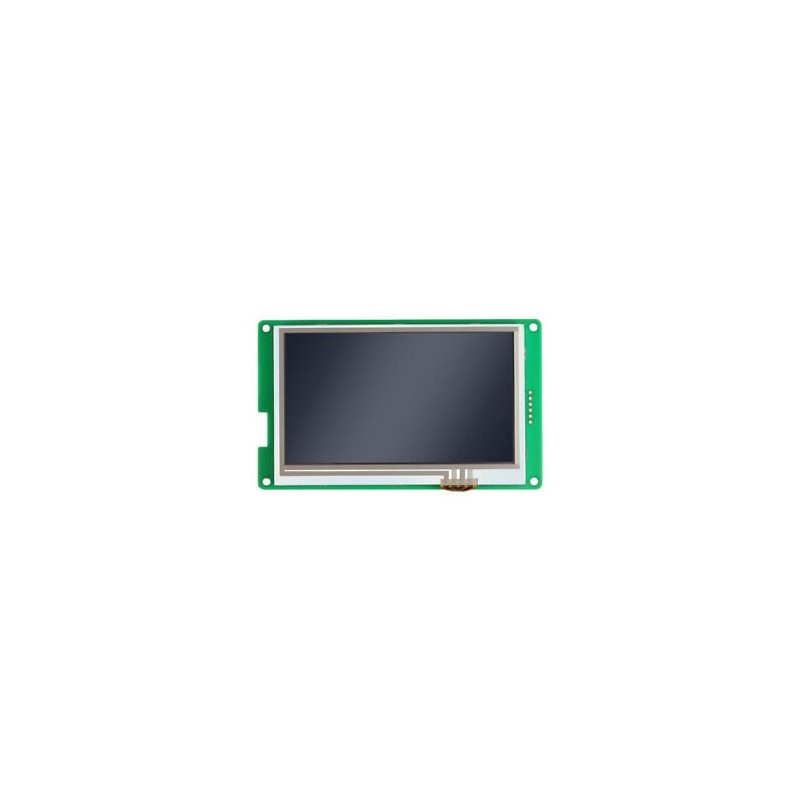

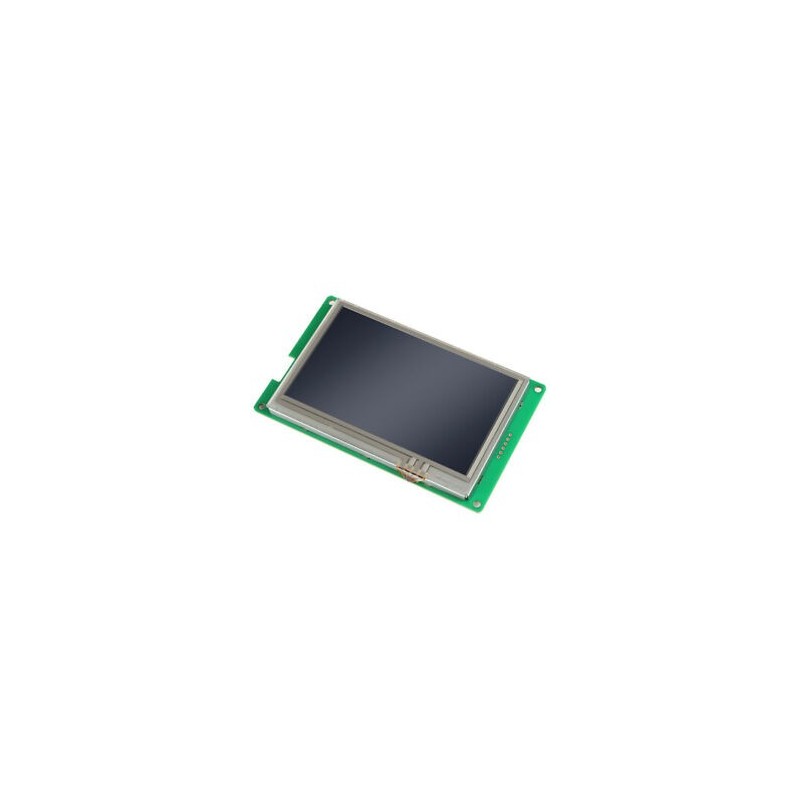

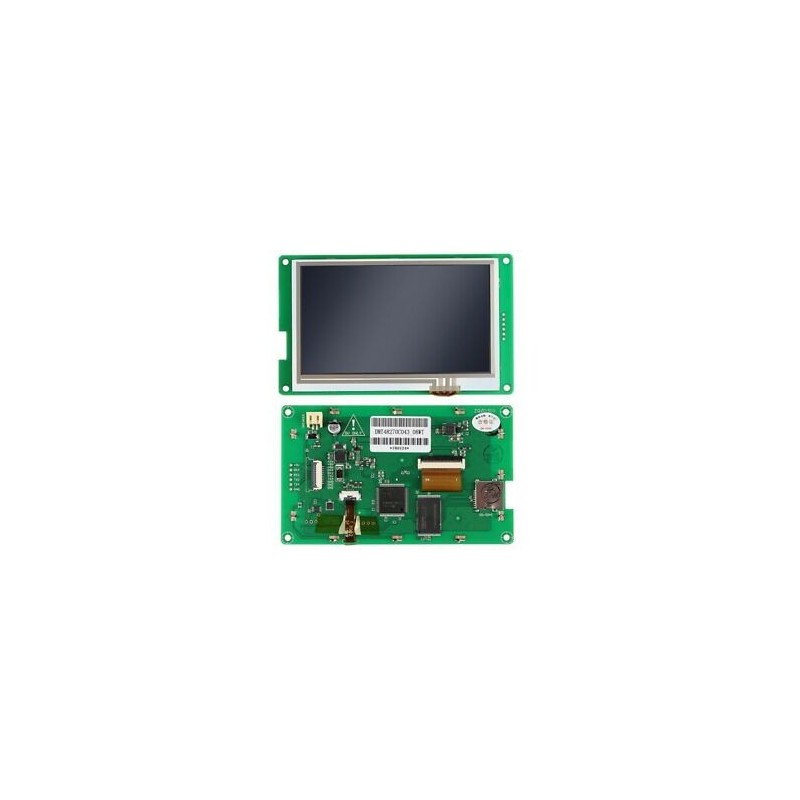

5X(3D Printer Parts 4.3 Inch press Lcd Display 4.3 Inch Control Panel Scree Y5M2

5X(Function description:Based on the T5 dual-core CPU, both the GUI and the OS core run at 250MHz. 40mS DGUS cycle, U is extremely smooth. 128Mbytes Flash, 64Mbytes is picture memory, 64Mbytes font space (after 32Mbytes font and music multiplexing)
Up to 524.3 seconds 32KHz 16bit WAV format high quality music playback. , 320Kbytes Nor Flash user database. 128Kbytes SRAM.
Support for updates to fonts, music, icons, and applications. Support JPEG image decompression to update images. Up to 255 display variables per page.
Support standard T5 DWIN oS platform: hardware can lead to 20 0, 6 UART, multi-channel AD, PWM, providing customized services.
Display controls and press controls can be turned on, off, or modified in the app for complex display combinations.
Color: green
Material: metal plastic
Type: 4.3 inch color press screen, serial screen
Brightness: 300nit
Features: resistance press color screen
Size: 4.3 inches
parameter:
Interface method : FCC 10Pin_1.0mm
Serial port mode : TTL*2
Power consumption : 180mA@5V
Working temperature: -20/ 70°C
Working voltage: 4.5-5.5V
Supports 256 segments (2.048 seconds per segment) 32KHz 16bit WAV format for high quality music playback.
Package Contents:
1 * LCD Display)
