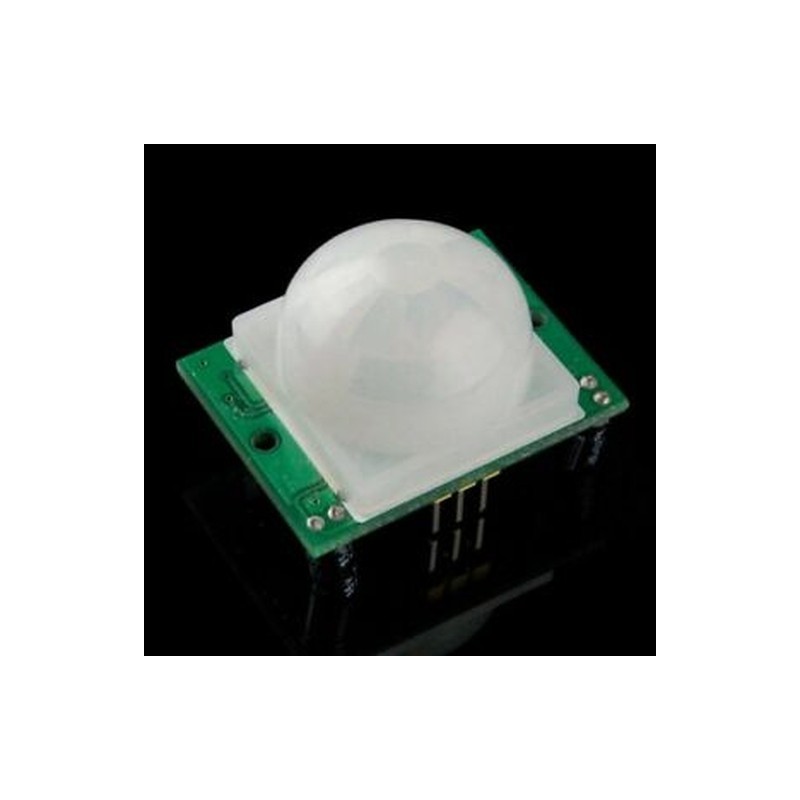

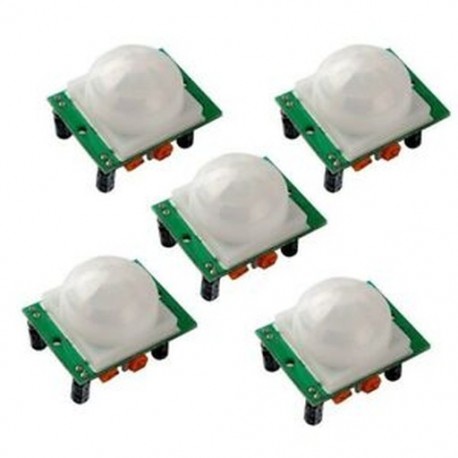

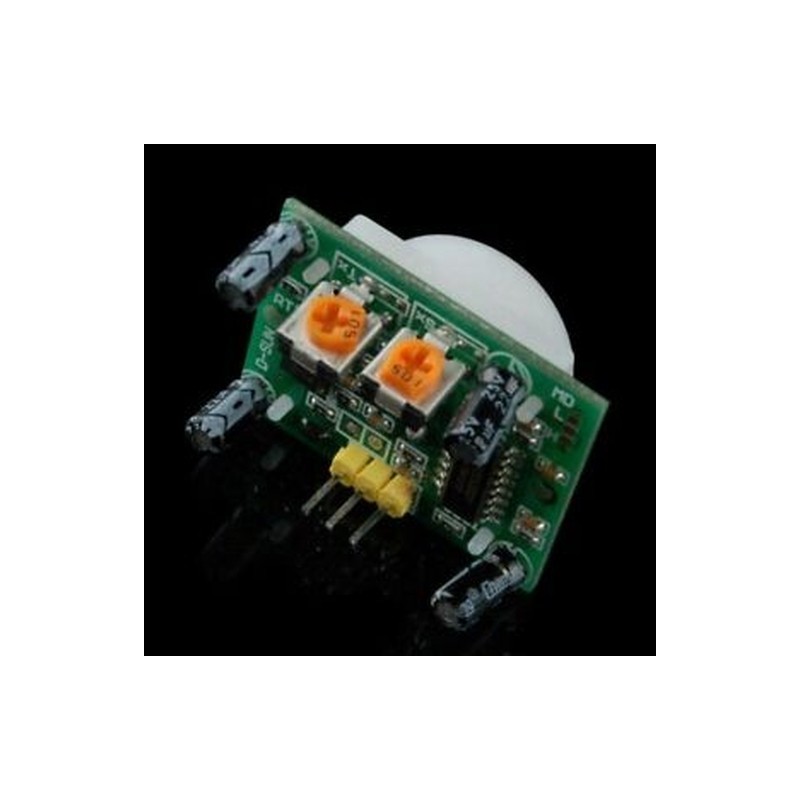

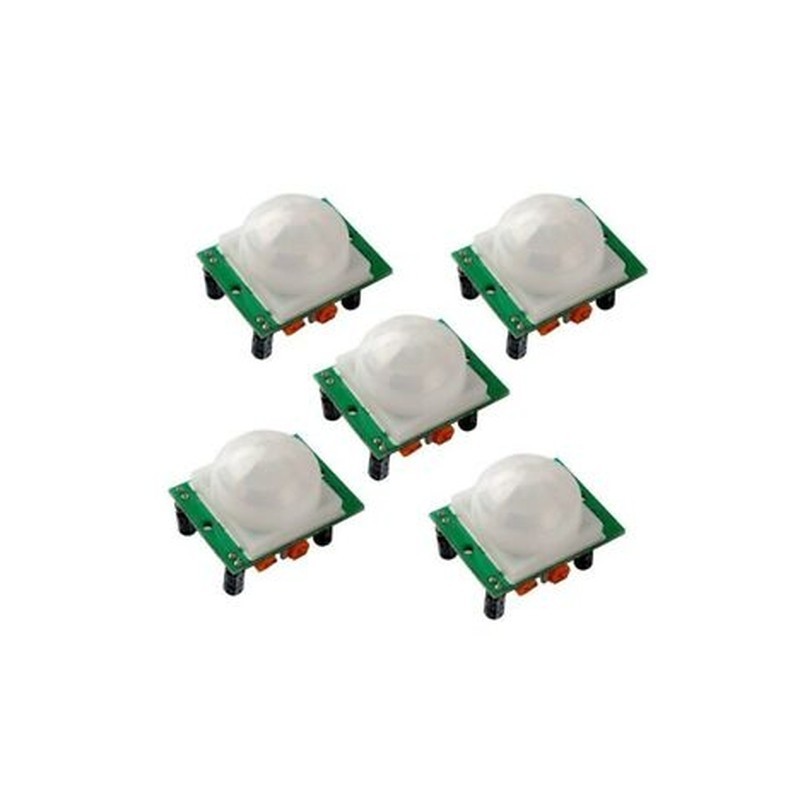

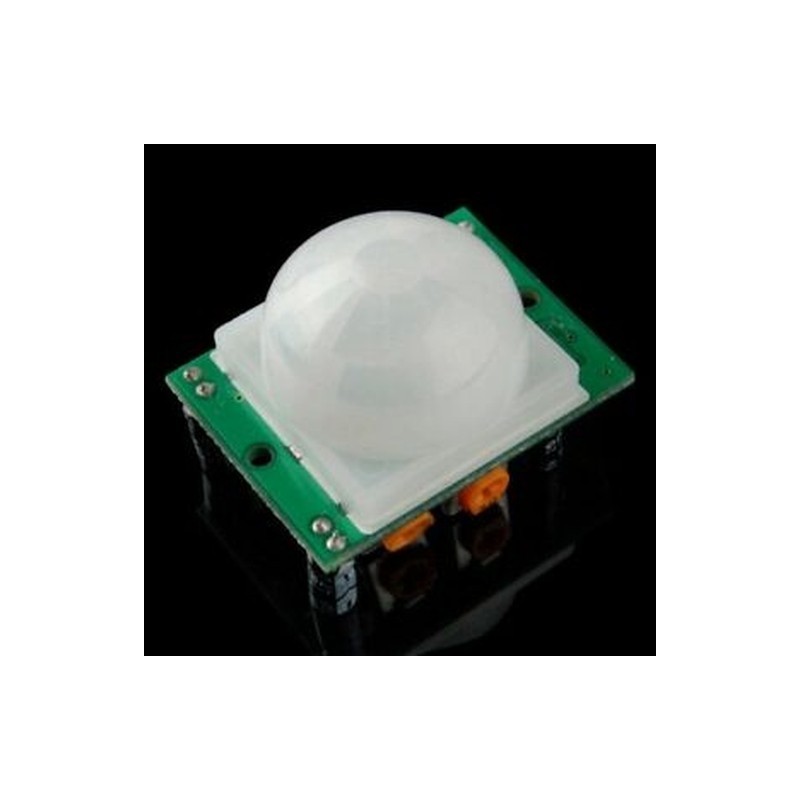

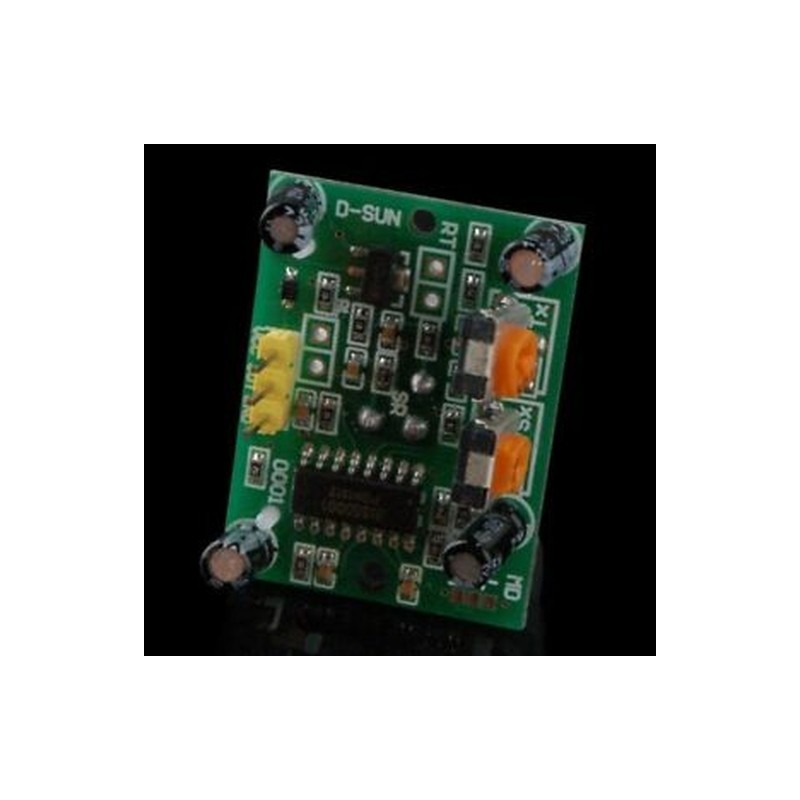

5PCS HC-SR501 Állítsa be a Piroelektromos infravörös PIR humen mozgásérzékelőt Detec D3N5
283138562989
Új termék
5PCS HC-SR501 Adjust Ir Pyroelectric Infrared PIR Humen Motion Sensor Detec D3N5
Product Type: HC--SR501 Body Sensor Module
Automatic Induction: when someone enters its sensing range, input high; when someone leave the sensor range, automatic delay off high, output low
Photosensitive control (optional): module is reserved for the location, you can set the photosensitive control, daytime or light sensing.
The photosensitive control optional features not installed at the factory photoresistor. If necessary, please purchase separately photoresistor install it yourself
1.Operating voltage: DC5V to 20V
2.Static power consumption: 65 microamps
3.Level output: 3.3V, low 0V
4.Delay time: adjustable (0.3 seconds to 18 seconds)
5.Blockade Time: 0.2 seconds
6.Trigger Mode: L can not be repeated, H can be repeated default value H
7.Sensing range: less than 120 degree cone angle of less than 7 meters
8.Operating temperature: -15 to 70 degrees
Color: green, white
Material: plastic, metal
Size about: 3.2*2.4*2.8cm
Package Contents:
5 x Human Infrared Sensor Module
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is /- 1-3cm.
Product Type: HC--SR501 Body Sensor Module
Automatic Induction: when someone enters its sensing range, input high; when someone leave the sensor range, automatic delay off high, output low
Photosensitive control (optional): module is reserved for the location, you can set the photosensitive control, daytime or light sensing.
The photosensitive control optional features not installed at the factory photoresistor. If necessary, please purchase separately photoresistor install it yourself
1.Operating voltage: DC5V to 20V
2.Static power consumption: 65 microamps
3.Level output: 3.3V, low 0V
4.Delay time: adjustable (0.3 seconds to 18 seconds)
5.Blockade Time: 0.2 seconds
6.Trigger Mode: L can not be repeated, H can be repeated default value H
7.Sensing range: less than 120 degree cone angle of less than 7 meters
8.Operating temperature: -15 to 70 degrees
Color: green, white
Material: plastic, metal
Size about: 3.2*2.4*2.8cm
Package Contents:
5 x Human Infrared Sensor Module
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is /- 1-3cm.
Egyéb infó
5PCS HC-SR501 Adjust Ir Pyroelectric Infrared PIR Humen Motion Sensor Detec D3N5
Product Type: HC--SR501 Body Sensor Module
Automatic Induction: when someone enters its sensing range, input high; when someone leave the sensor range, automatic delay off high, output low
Photosensitive control (optional): module is reserved for the location, you can set the photosensitive control, daytime or light sensing.
The photosensitive control optional features not installed at the factory photoresistor. If necessary, please purchase separately photoresistor install it yourself
1.Operating voltage: DC5V to 20V
2.Static power consumption: 65 microamps
3.Level output: 3.3V, low 0V
4.Delay time: adjustable (0.3 seconds to 18 seconds)
5.Blockade Time: 0.2 seconds
6.Trigger Mode: L can not be repeated, H can be repeated default value H
7.Sensing range: less than 120 degree cone angle of less than 7 meters
8.Operating temperature: -15 to 70 degrees
Color: green, white
Material: plastic, metal
Size about: 3.2*2.4*2.8cm
Package Contents:
5 x Human Infrared Sensor Module
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is /- 1-3cm.
