4X (Busheng 3D nyomtató Kétfázisú négyvezetékes léptetőmotor 1,8 Deg 17HD34008-A8H6-hoz

4X(Busheng 3D printer Two-phase 4-wire stepper motor for 1.8 Deg 17HD34008-A8H6

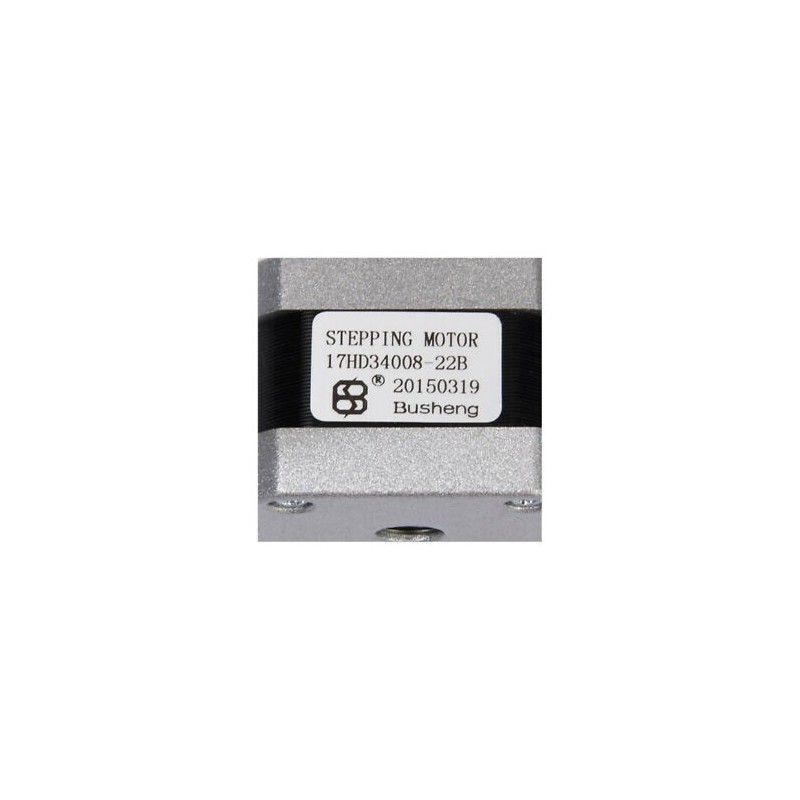

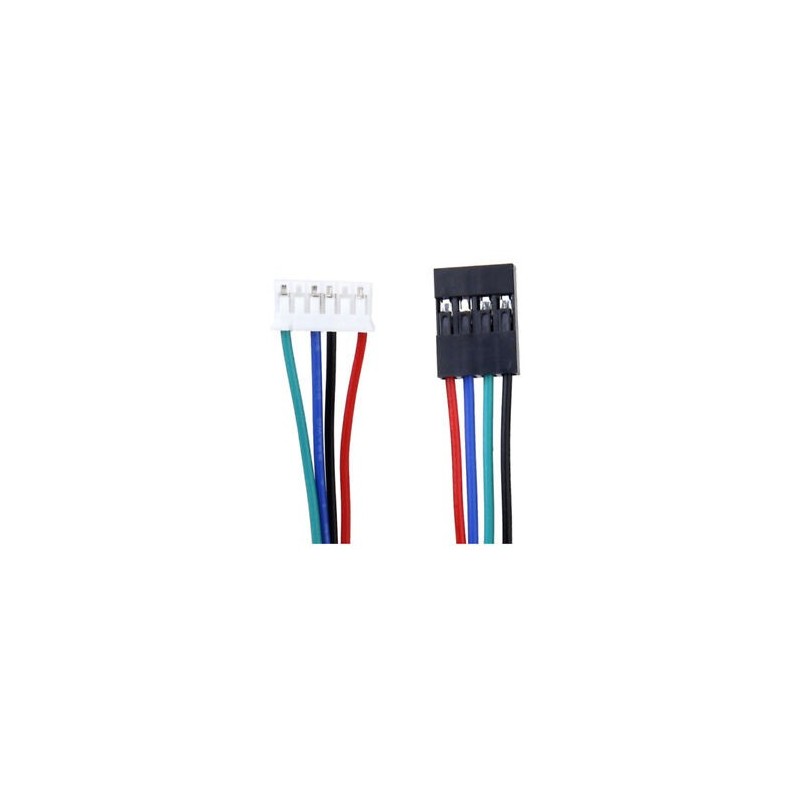

4X(1m wire, an electrical machine to connect, on the other hand, has various optional connectors; Shrink sleeve effect to prevent the wire tangled up, Suitable for 17HD34008-22B mixing stepper motor.

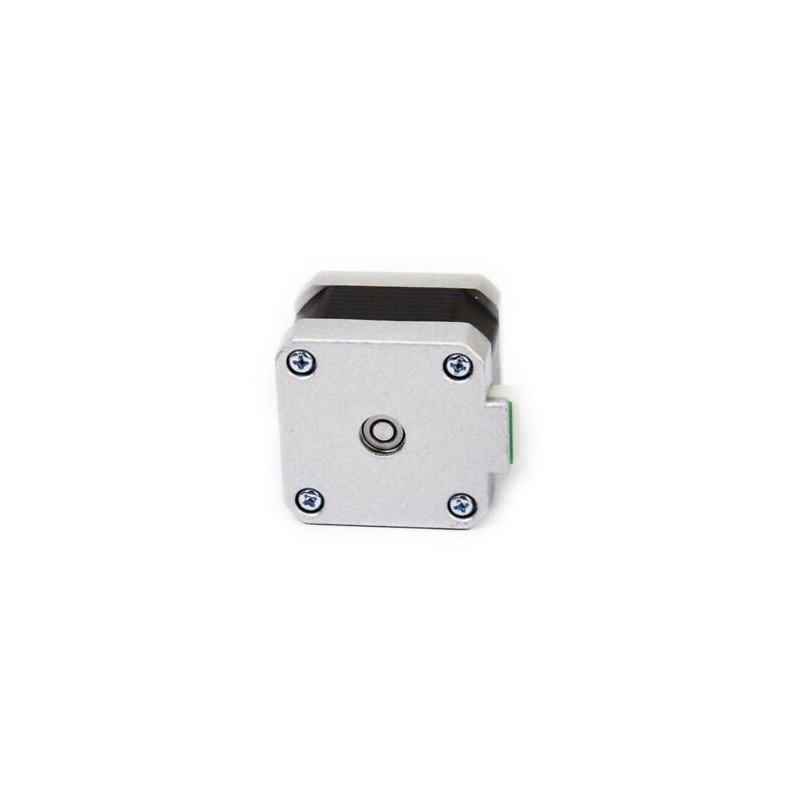

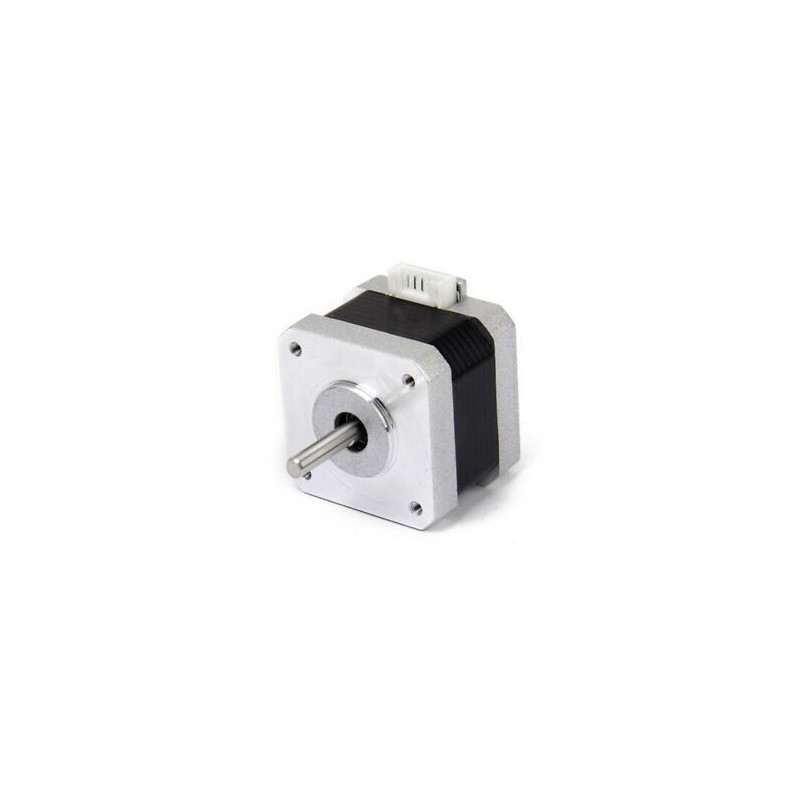

Exterior: as the picture
Drive mode: Hackwelle constant current drive
Exciting mode: Two-phase 4-wire, available for a rotation of forward and backward
Please contact: The order of the power is AB-BC-CD-DA, from the wave end see CW
Description:
Rated current (single phase): 1.5 A DC
Rated voltage: 3.45V
Step angle: 1.8 degrees
Particularities:
Operating Conditions: Ambient Temperature: -20 ~ 50 Degrees Celsius; RH: 90% MAX; Installation: axis horizontal or vertical installation
DC winding resistance (25 Degrees Celsius): 2.3 Ohm /- 10%
Ending Inductance: 3mH /- 20%
Resting torque: 12mN.m REF
Holding torque: Greater than or equal to 300mN.m (I = 1.5A)
Max. Switching frequency: Greater than or equal to 1500pps
Max. Idle frequency: Greater than or equal to 8,000pps
Temperature rise:
Angular Accuracy: 1.8 degrees /- 5%
Rotation: 38g.cm 2
Engine weight: 0.23 kg / PC REF.
Insulation Resistance: Cold Insulation Resistance should be more than 100 mOhm (between the motor stator core and terminal)
Puncture Strength: The space between the motor stator core and terminal should be able to withstand AC600V / 1s without degradation. Leakage current of less than 1 mA.
Size (L x W x H): about 42 x 42 x 34 mm / 1.65 x 1.65 x 1.34 inch

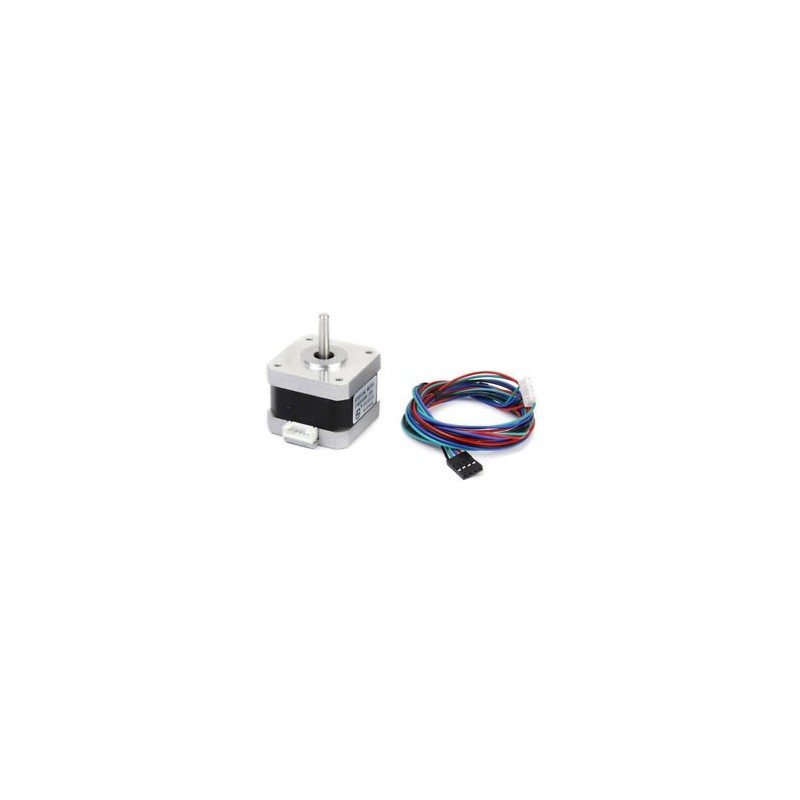

The package includes:1 x stepping motor

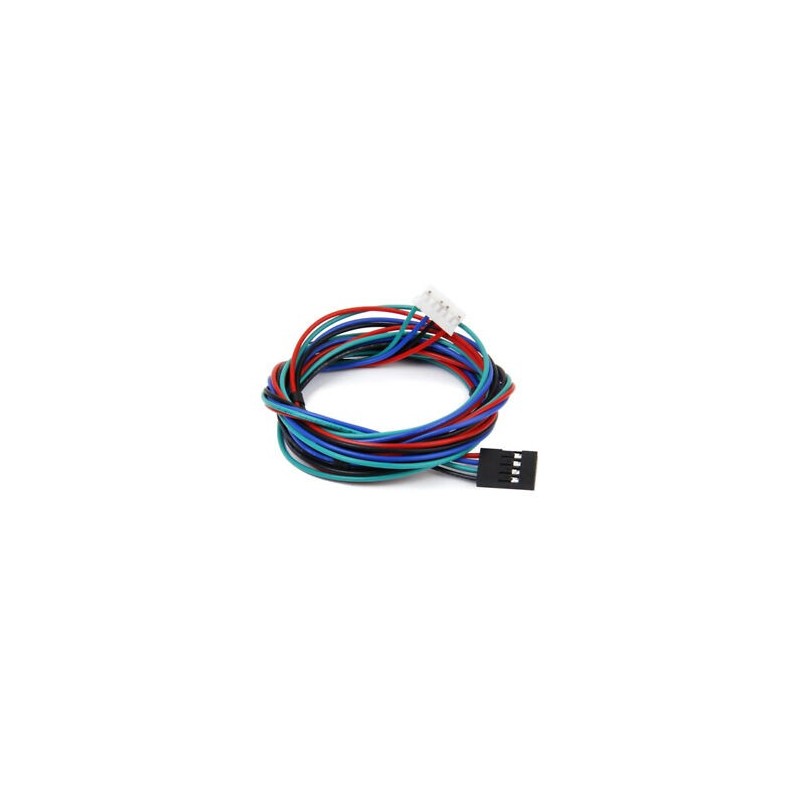

1 x cable
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is /- 1-3cm.)
