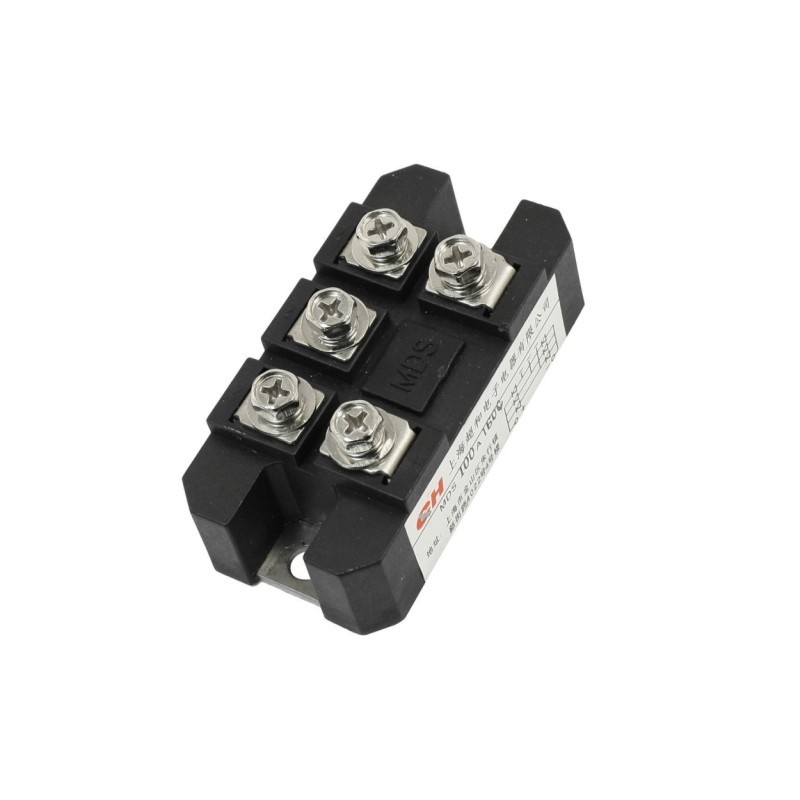

3X (MDS-100A 5 sorkapocs 3-fázisú diódás modulos híd-egyenirányító 100A 1600V R3F8)

3X(MDS-100A 5 Terminals 3 Phase Diode Module Bridge Rectifier 100A 1600V R3F8)

3X(Power Diode Module MDS-100A is designed for three phase full wave rectification, which has six diodes connected in a three phase bridge configuration.
Output DC current is 100Amp Repetitive peak reverse voltage is up to 1,600V. Isolated mounting base, High reliability by unique glass passivation.
Applications: AC, DC Motor Drive/AVR/Switching -for three phase rectification.
Product Name : Bridge Rectifier
Model : MDS-100A
Max. Average Forward Rectified Current : 100A
Repetitive Peak Reverse Voltage : 1600V
Terminals : 5
Dimension : 80 x 40 x 32mm/ 3.1" x 1.6" x 1.2" (L*W*T)
Mounted Hole Dia. : 6mm / 0.24"
Material : Metal, Plastic
Color : Black, Silver Tone
Package Content : 1 x Bridge Rectifier
Note:Light shooting and different displays may cause the color of the item in the picture a little different from the real thing.The measurement allowed error is /-1-3 cm.)
