3X (8 mm x 400 mm CNC lineáris síntengely-rúd SC8UU csapágyblokk készlet 3D P I9K1-hez

3X(8mm x 400mm CNC Linear Rail Shaft Rod SC8UU Bearing Block Set For 3D P I9K1

3X(100% brand new and high quality.
Good wear resistance and strength, high accuracy, hard to rust.
Has good performances, low friction coefficients and long usage spans.
Colour:Silver
Material: Stainless Steel Aluminum
Optical Axis:
Material: Stainless steel
Color: Silver
Diameter: 8mm
Total Length: 400mm

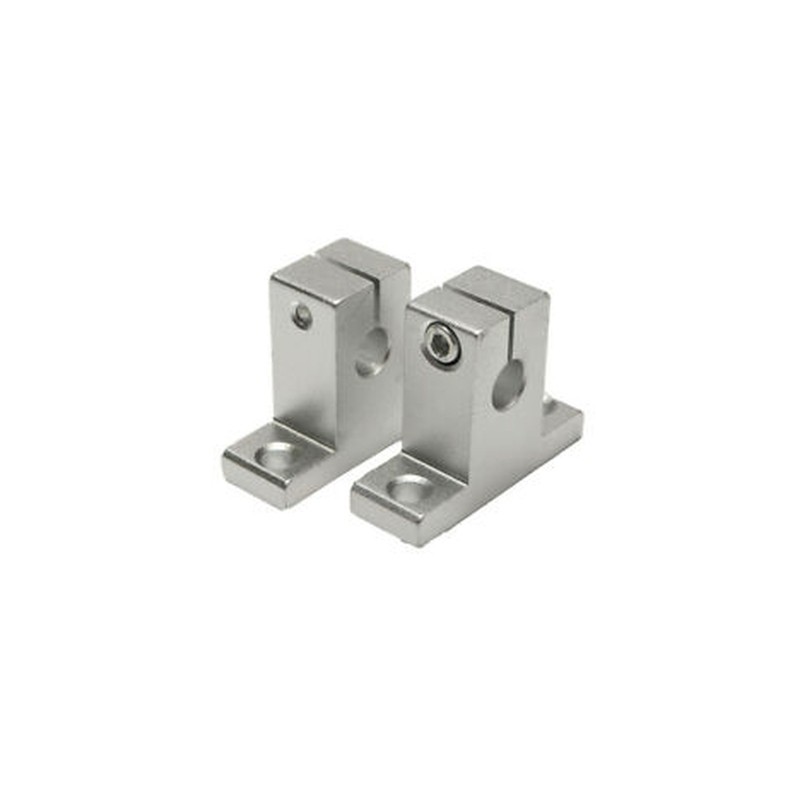

Rail Shaft Support:
Material: Aluminum
Color: Silver
Hole diameter: 8mm
Total length: 41mm
Height: 32mm

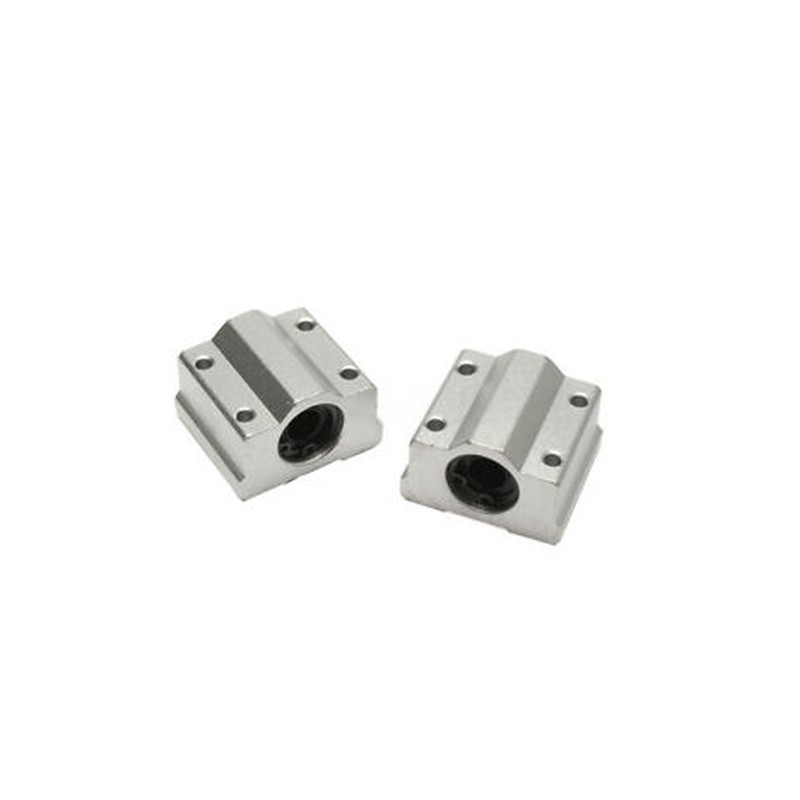

Linear Slide Block:
Material: Aluminum
Color: Silver
Bore diameter: 16mm
Hole diameter: 8mm
Total length: 33mm
Height: 21mm
How to install:
Pls put Linear Slide Block into the Lead rod
Then the Rail Shaft Support separately install at both ends of the Lead screw
According to the size of you need to adjust the distance between the nut and Mounted ball bearing
Put shaft coupling into the Lead screw beside the Mounted ball bearing

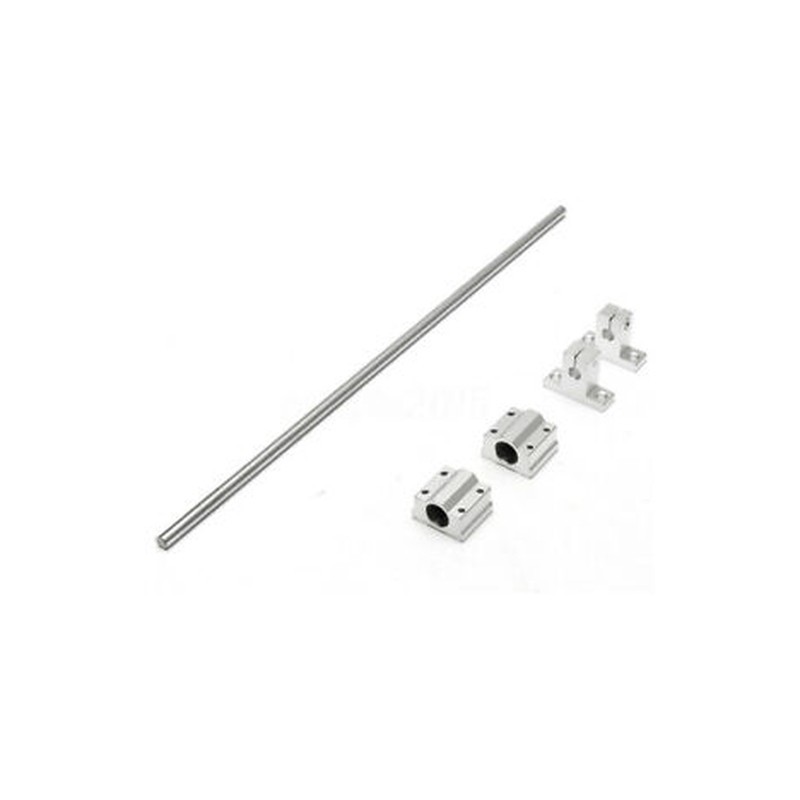

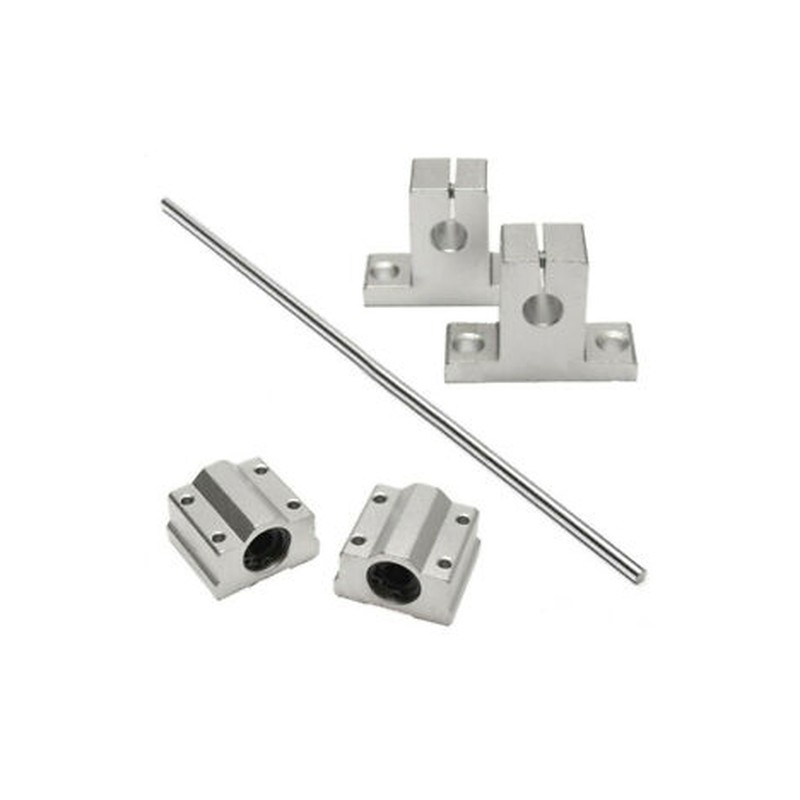

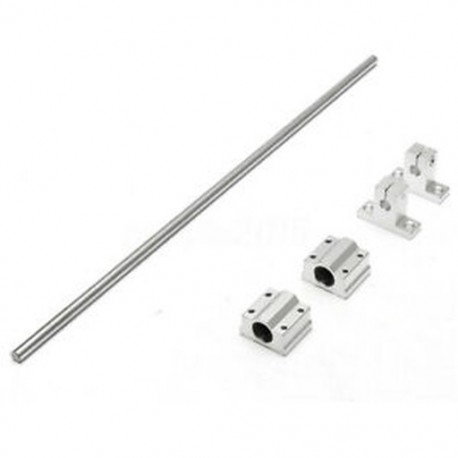

Package included: 1 x (8x400mm) steel Optical Axis
2 x Aluminum Rail Shaft Support
2 x Linear Slide Block
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is /- 1-3cm.)
