2x W1209 12 V DC digitális hőmérsékletszabályozó kártya Mini Electronic Temper B3O4

2x W1209 12V DC Digital Temperature Controller Board Mini Electronic Temper B3O4

100% Brand new and high qualityW1209 12V DC Digital Temperature Controller BoardWaterproof Electronic Temperature Temp Control Module Switch with 10A One-channel Relay.When the Thermostat is power off, long press "- or ", you can restore the factory settingsColor: GreenMaterial: metalSize: 48.5*40mmInstructions for use:Connect the power supply and equipment, the measuring temperature is displayed, press the "SET" button,press " or -" to set the desired temperature (long press " or -" to quickly increase or decrease),press "SET" to confirm the setting and return, controller automatically performs the relay ON/OFF.the thermostat output is 10A relay, meet a variety of high-power loads.LED Indicator: LED off indicates the relay off; Lighting, indicates the re...
2x W1209 12V DC Digital Temperature Controller Board Mini Electronic Temperature Temp Control Module Switch Green E9S9
100% Brand new and high quality

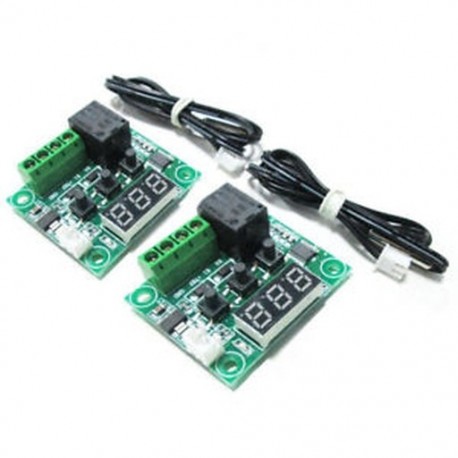

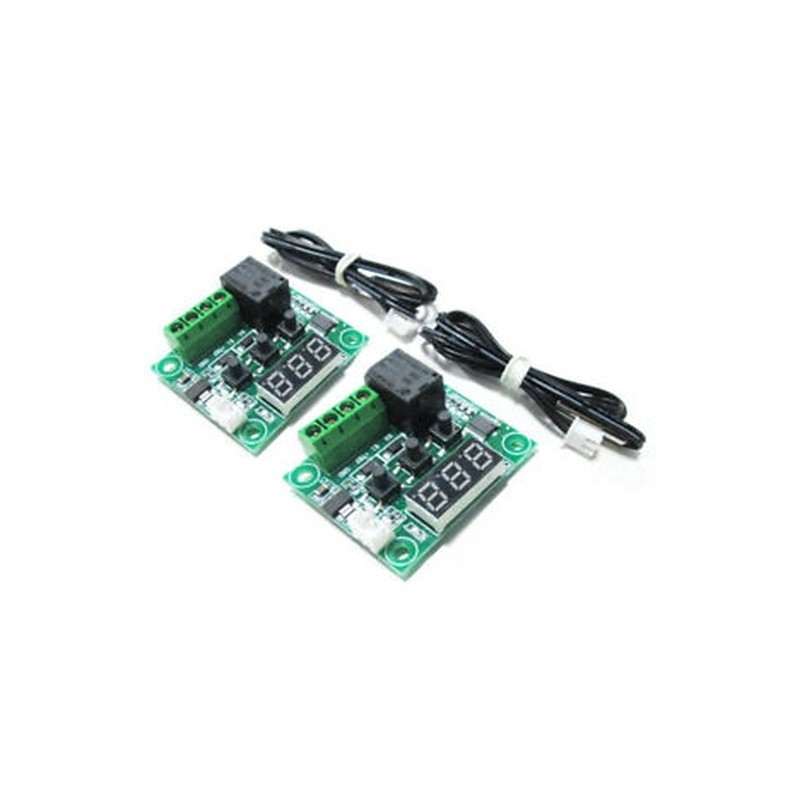

W1209 12V DC Digital Temperature Controller Board
Waterproof Electronic Temperature Temp Control Module Switch with 10A One-channel Relay.
When the Thermostat is power off, long press "- or ", you can restore the factory settings
Color: Green
Material: metal
Size: 48.5*40mm
Instructions for use:
Connect the power supply and equipment, the measuring temperature is displayed, press the "SET" button,
press " or -" to set the desired temperature (long press " or -" to quickly increase or decrease),
press "SET" to confirm the setting and return, controller automatically performs the relay ON/OFF.
the thermostat output is 10A relay, meet a variety of high-power loads.
LED Indicator: LED off indicates the relay off; Lighting, indicates the relay is closed.
Digital LED Tubes: "LL" indicates sensor open, "HH" indicates overrange,
the relay will be forcibly disconnected; "---" indicates high temperature alarm
Long press the "SET" button to enter the main menu settings,
press " or -" to switching between P0-P6,
then long press "SET" or 10 seconds without keystrokes to confirm the setting and return.
Buttons:
P0 :Cooling / Heating; Range: C/H; Default: C
P1 :Hysteresis Setting; Range:0.1-15; Default: 2
P2 :Highest Setting Limit; Range:110; Default: 110
P3: Lowest setting Limit; Range:-50; Default: -50
P4 :Temperature Correction; Range:-7-7 Celsius; Default: 0 Celsius
P5: Delay Start Time; Range:0-10 Minute; Default: 0
P6: Key Tone Switch; Range:0-110; Default: Off
Package Included:
2x W1209 Digital Temperature Controller Board
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is /- 1-3cm.
