2X (Kingst La1002 Usb Logic Analyzer 24M maximális mintavételi sebesség, 8 csatorna, 10B mintavétel Y2K8

2X(Kingst La1002 Usb Logic Analyzer 24M Max Sample Rate,8 Channels,10B Samp Y2K8

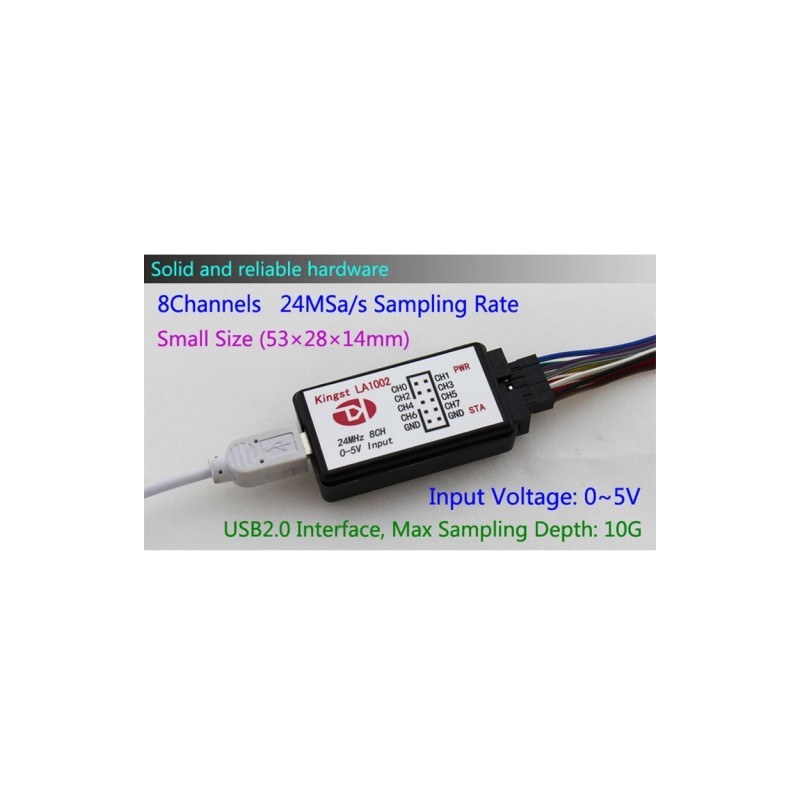

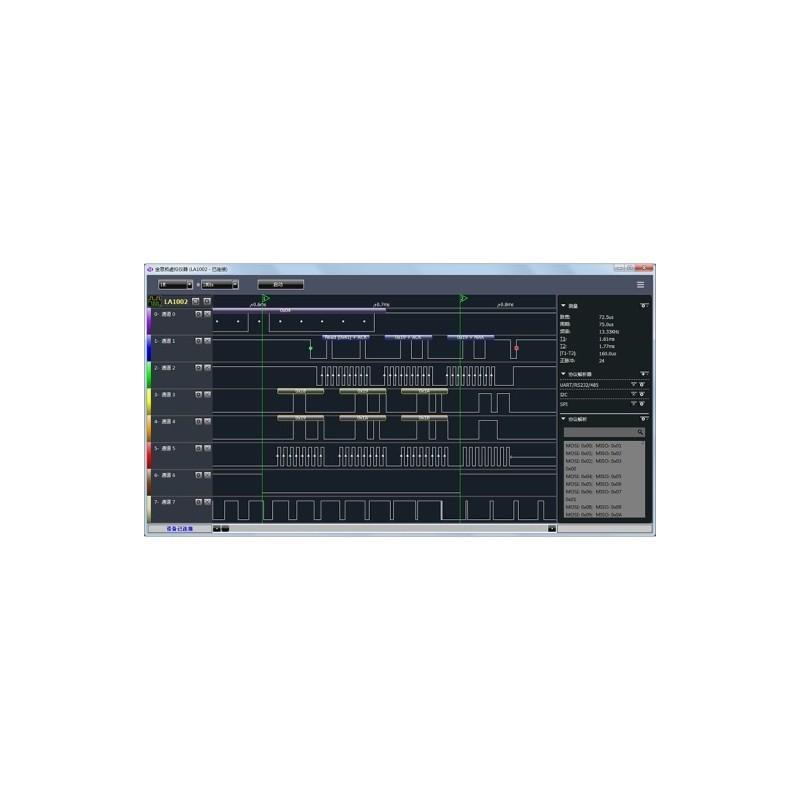

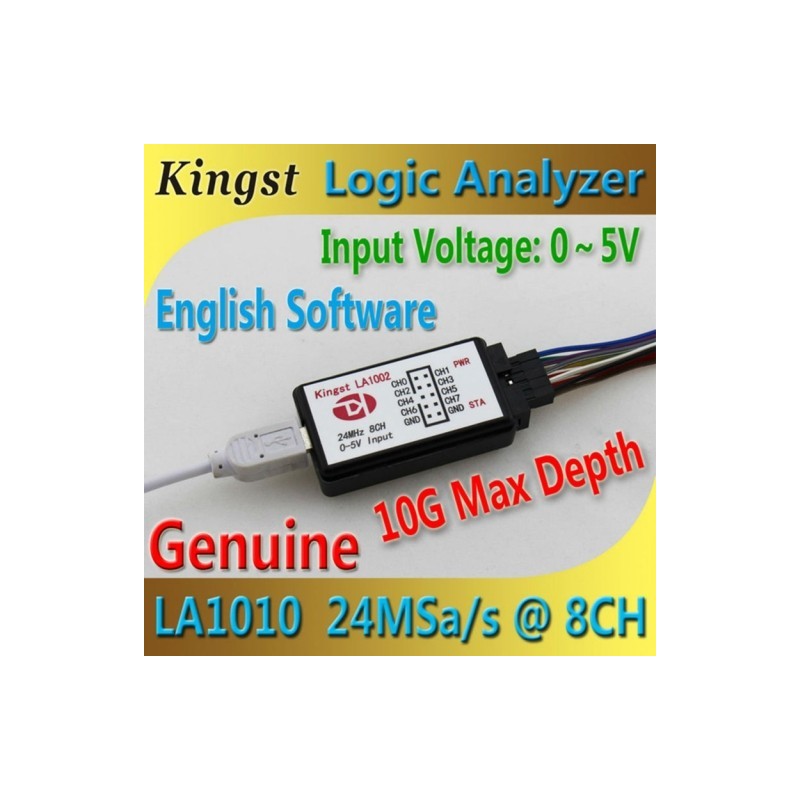

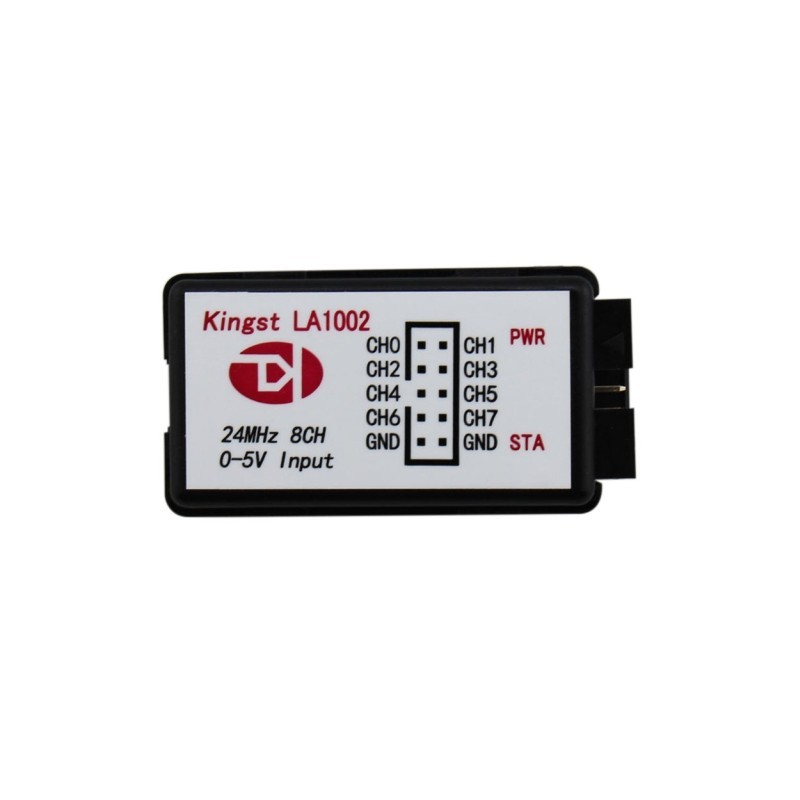

2X(LA1002 is a logic analyzer product with high cost performance.It has 8 input channels and the sampling rate is up to 24M.Along with the PC software KingstVIS,8 channels of digital signal could be sampled at the same time,and then they could be converted to digital waveform and displayed on the PC screen.
The signal could be analyzed with many standard protocols,to get more straightforward communication data.It helps a lot in testing and analyzing digital system(MCU/ARM/FPGA,etc.),developing and debugging several communication programs,or monitoring and recording some digital signals for a long time.
Portable and lightweight,Large sampling depth and support compression,Compatible USB2.0/3.0 interface,Powerful software and easy to use,Support online upgrade automatically
Measurement bandwidth:5M;Min pulse width can be captured:80ns;Max sampling depth:10G/channel;Input voltage range:0V ~ 5V;Input impedance:220KΩ,12pF;Threshold voltage:Low level Less than 1.0V,High level Greater than 2.0V;Standby current:50mA;Max operating current:80mA

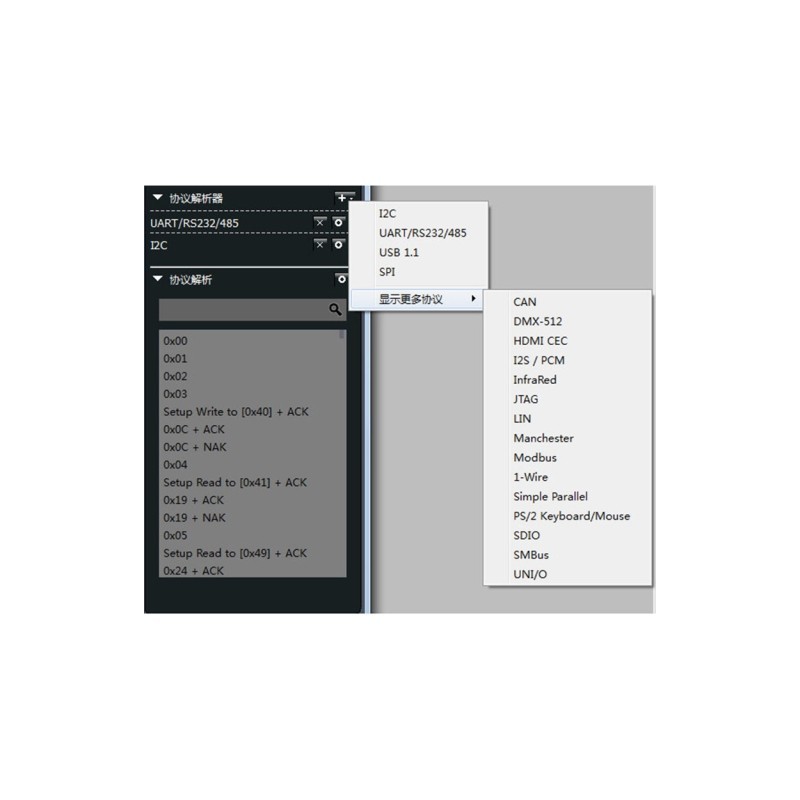

Supported OS:Windows XP,Vista,Windows 7/8/10(32/64bit),Supported standard protocols:UART/RS-232/485,I2C,SPI,CAN,DMX512,HDMI CEC,I2S/PCM,JTAG,LIN,Manchester,Modbus,1-Wire,UNI/O,SDIO,SMBus,USB1.1,PS/2,NEC InfraRed,Parallel,etc...
Color:picture color
material:plastic

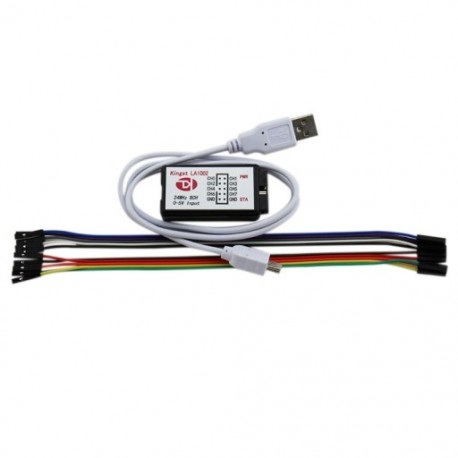

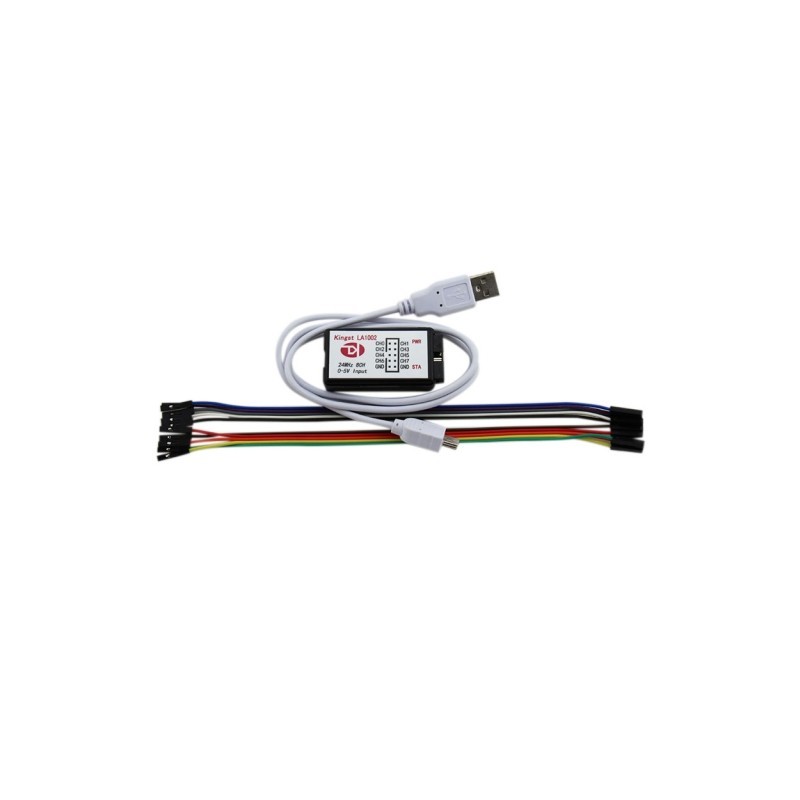

Package Contents:
1 * USB Logic Analyzer
1 * USB2.0 Cable
1 * Dupont Line)
