2X (ANENG KT87N digitális multiméter, amperes bilincsmérő áram szorító szorító, N7Y8

2X(ANENG KT87N Digital Multimeter Ampere Clamp Meter Current Clamp Pincers N7Y8

2X(Clamp ammeters referred to as clamp meter. The work is mainly composed of an electromagnetic current meter and bushing type current mutual inductor. Straight through current transformer core made of movable opening, and a clamp on ammeter, named. The utility model relates to a portable instrument which can directly measure the AC current of a circuit without disconnecting the circuit.
A table is set for current transformer and current meter in one meter, is an important branch of digital multimeter, the measured current and current transformer and its working principle is the same. Clamp meter is composed of a current transformer and current meter assembly.
The iron core of the current transformer can be opened when the wrench is pressed, and the wire passing through the current can be cut through the opening of the iron core without cutting off.
The measured circuit conductor passing through the core becomes the primary coil of the current transformer, and the current is induced in the two coil through the current. Thus, the current meter connected with the two coil can be used to indicate the current of the measured line.

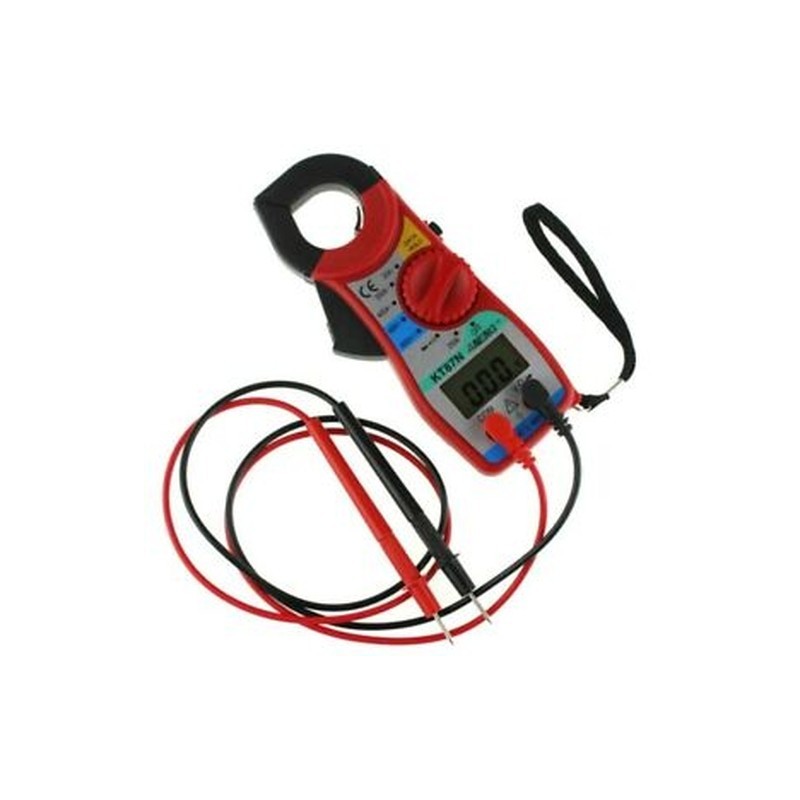

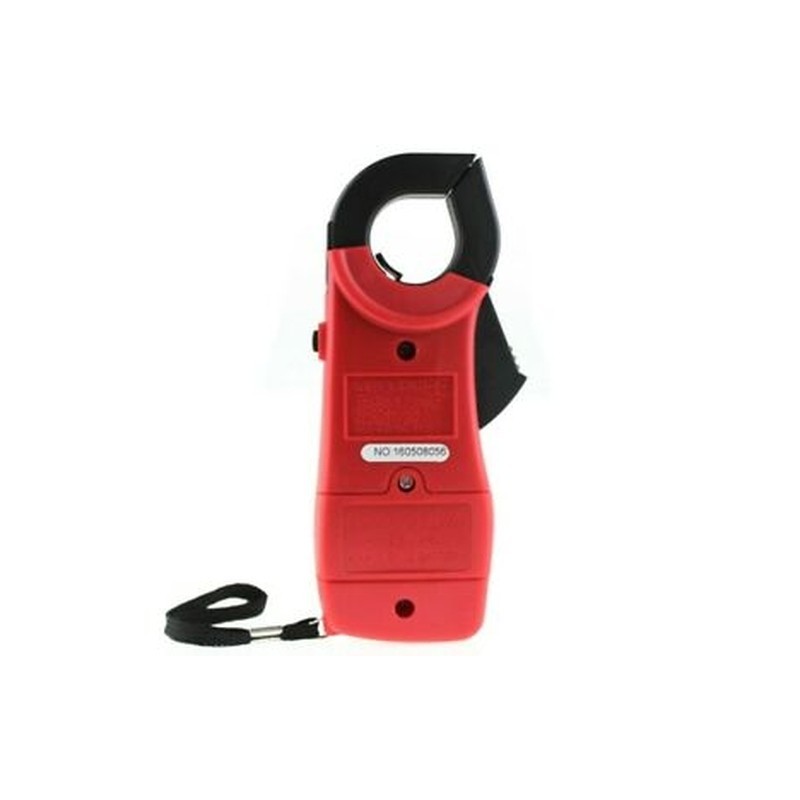

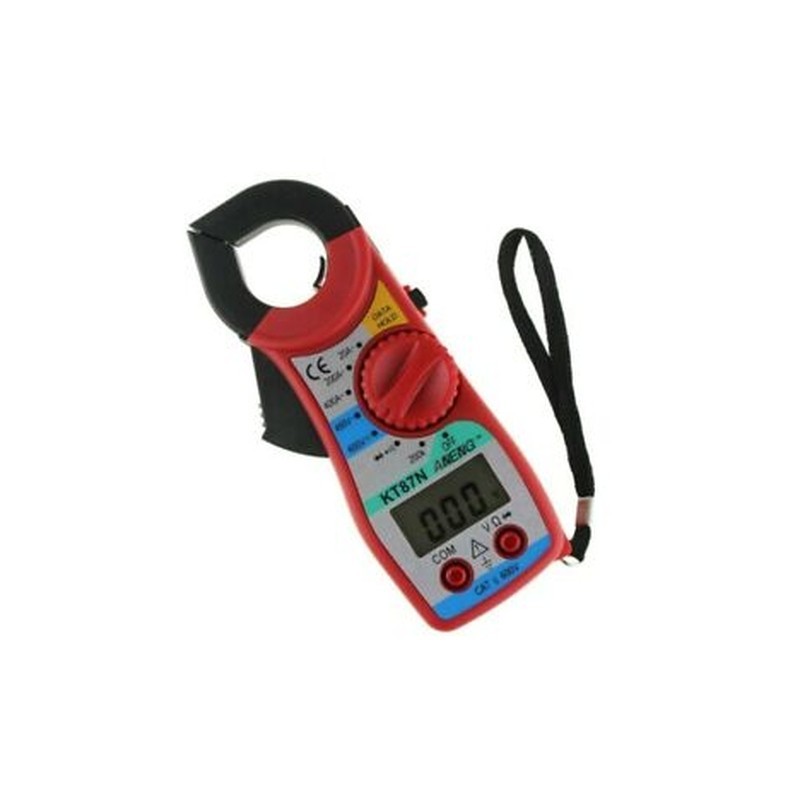

Product Name: Clamp ammeters
DC Voltage: 600V, /-1.0%
AC Voltage: 450V, /-1.2%
AC Current: 20-200-400A, /-2.0%
Resistance(ohm): 200KOhm, /-1.0%
Buzzer Function: Yes
Max LCD display: Yes
Data Hold Function: Yes
Max Display: 1999
Battery Type: 2 x 1.5V (AAA Battery) (Not Included)
Color: Red black
Material: Metal Plastic
Size(L x W x H): 15.00 x 7.00 x 3.00cm
Weight: Approx. 115g
Cable length: Approx. 0.7M
1 x Clamp Digital Multimeter
1 x Test leads
1 x User Manual
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is /- 1-3cm.)
