1X (Xy-Pwm1 jelgenerátor digitális kijelző Pwm impulzus frekvencia működési arány T4E8

1X(Xy-Pwm1 Signal Generator Digital Display Pwm Pulse Frequency Duty Ratio T4E8

1X(Frequency is divided into four areas: automatic switching:
1.XXX (without decimal point): the smallest unit is 1Hz, and the value range is 1Hz~999Hz;The minimum unit of
2.X.XX (decimal point in 100 bits) is 0.01Khz, and the value range is 1.00Khz~9.99Khz;
3.XX.X (decimal point in ten places): the smallest unit is 0.1Khz; and the range is 10.0KHz~99.9KHz.
4.X.X.X (decimal point in ten bits and 100 bits): the smallest unit is 1Khz; and the range is 1KHz~150KHz.E.g. frequency display: 100 indicates PWM output 100Hz pulse;1.01 represents the pulse of PWM output 1.01K.54.1 represents the pulse of PWM output 54.1KHz.1.2.4 indicates the pulse of PWM output 124KHz.Duty cycle:0~100% ;All settings are saved by power down.
DIY Supplies:Electrical
Display Size:2.9 Inches and Under
100% brand new and high quality
PWM output can set frequency and duty cycle respectively.
Parameter setting:
Module has four independent keys, used to set the frequency and duty cycle, support short press (increase or decrease a unit) and long press (quickly increase or decrease), very simple, set the parameters automatically save, power loss is not lost.
Scope of application:
1.is used as a square wave signal generator to generate square wave signals for experimental development.
2.is used to generate square wave signals that control motor drives.
3.generate adjustable pulse for MCU use;
4.generate adjustable pulses to control related circuits (PWM dimming and speed regulation applications).

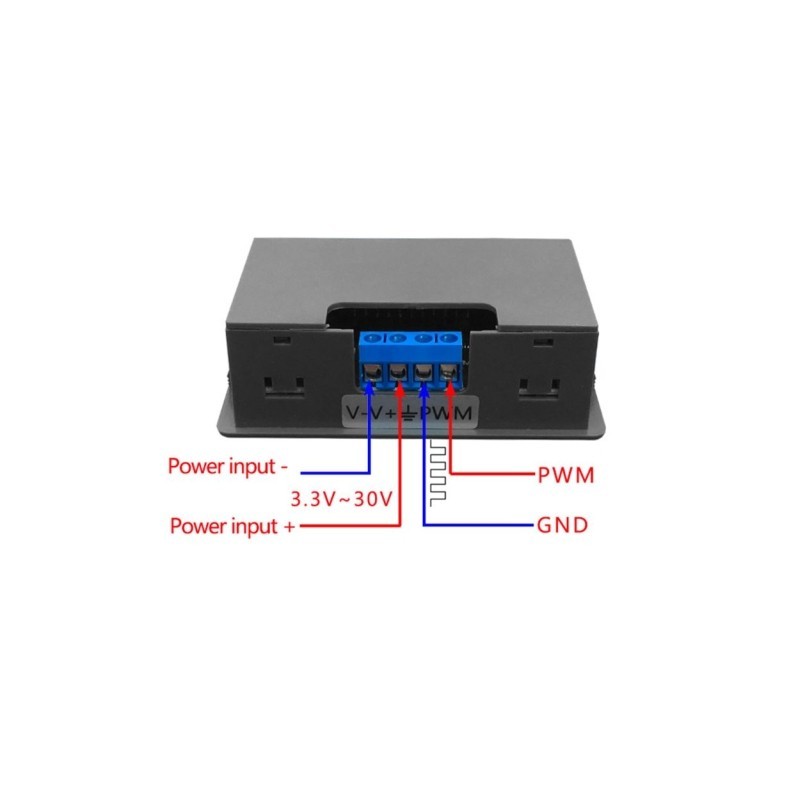

Working voltage: 3.3~30V
Frequency accuracy: accuracy is about 2% in each range
Signal load capability: output current can be around 5~30mA
Output amplitude: PWM amplitude is equal to supply voltage
Ambient temperature: -20~ 70 Celsius

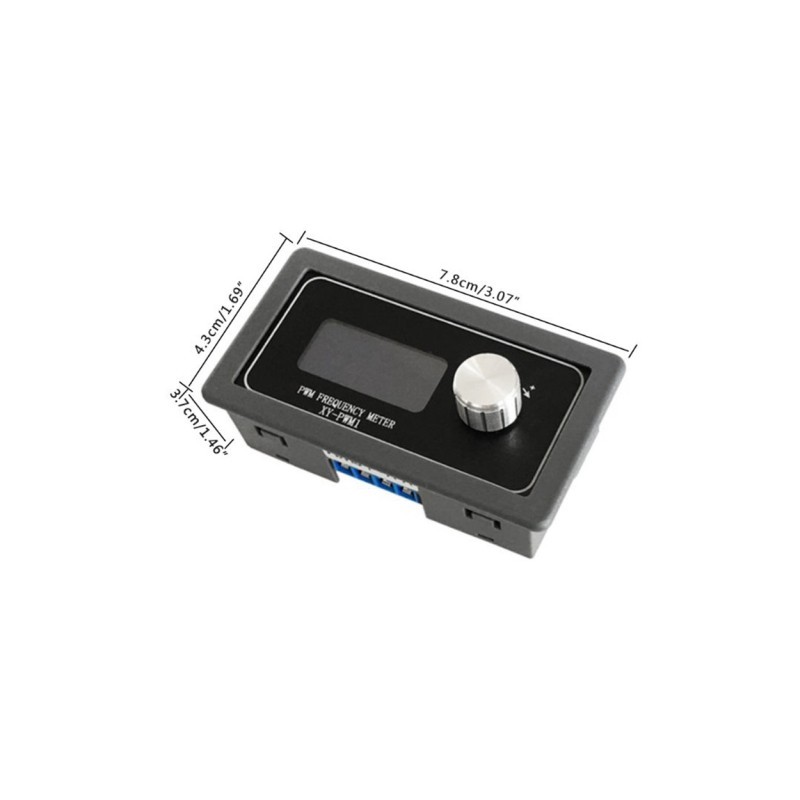

Dimensions: 3.7x4.3x7.8cm/1.46x1.69x3.07inch
Color: Black
Material:plastic
Package Contents:
1 * Signal Generator Module)
