1X (Digitális oszcilloszkópkészlet Dso138 2,4 hüvelykes TFT kézi zsebméret, SMD SoI6U5)

1X(Digital Oscilloscope Kit Dso138 2.4 Inch TFT Handheld Pocket Size SMD SoI6U5)

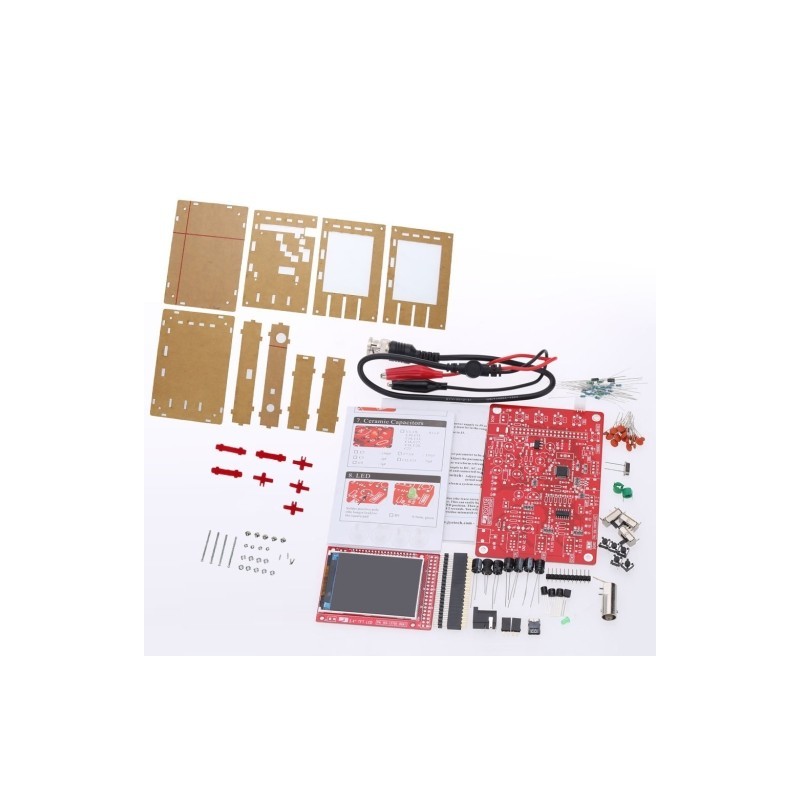

DSO138 KIT This kit uses ARM Cortex M3 processor (STM32F103C8) and contains a 2.4 inch color TFT screen, can be used as ARM test development board HOUSING DIY cover for DSO138 oscilloscope.Acrylic material, looks transparent (has to tear the film).Easy to assemble for electronic enthusiasts
BRAIDED SMD TFT CONTROLLER DETECTION FEATURE VERSATILE RESIZE Based on this kit, it can also be used as voltmeter or data logger secondary development. EDGE TRIGGER OF DISPLACEMENT AND DECREASE Adjustable vertical displacement with instructions with automatic, regular and one shot mode, easy to move to capture the waveform.
WAVEFORM PARAMETER DIGITAL DISPLAYS Observable previous trigger waveform (negative delay) Can freeze waveform display at any time (HOLD function) Comes with 1Hz / 3.3V square wave test signal source Frequency, period, pulse width, duty cycle, MAX MIN AVG Peak Peak virtual values
WAVEFORM MEMORY FUCTION does not lose the waveform after power off. CURY TERMINATION AND IDLE RECOGNITION Can help the user to find the soldering fault. This DSO138 Digital Oscilloscope Kit has an ARM Cortex-M3 processor and a 2.4-inch TFT screen.Note:

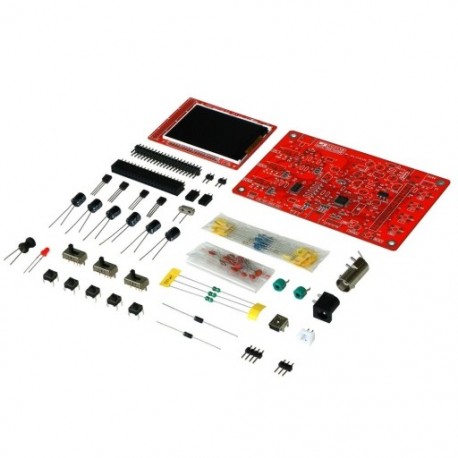

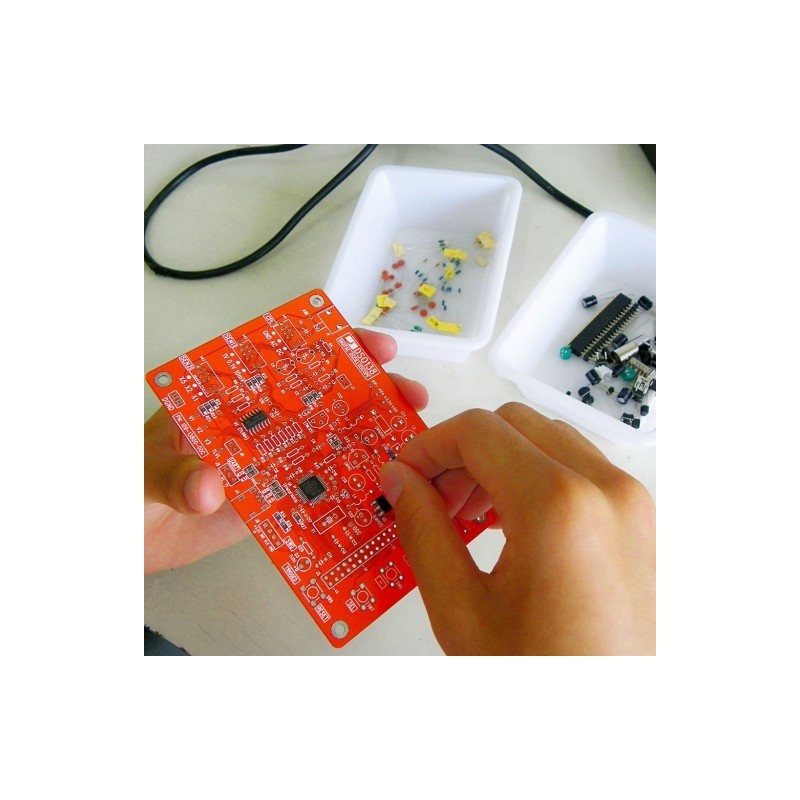

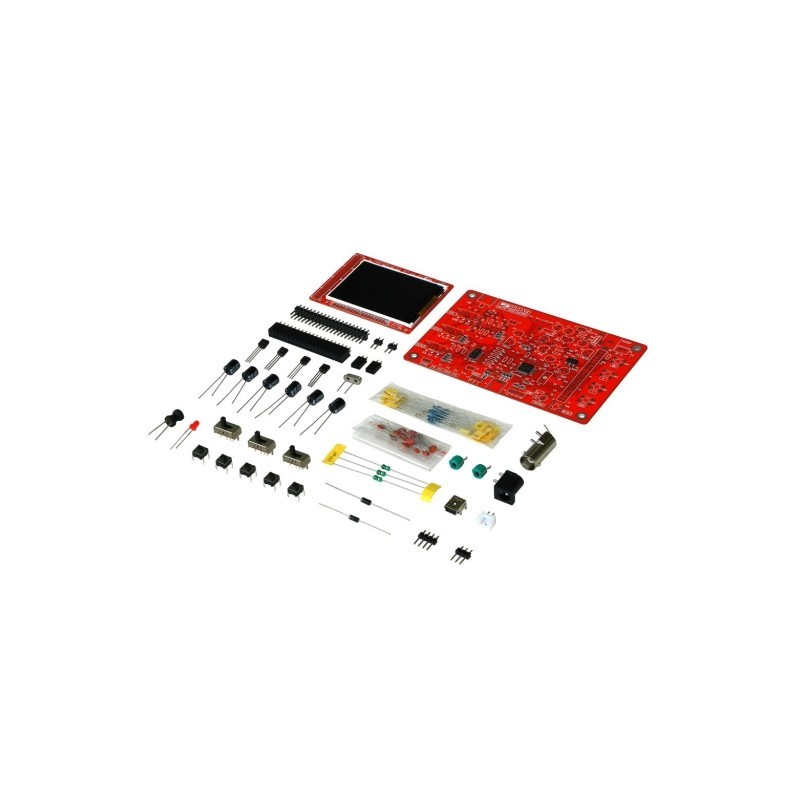

The SMD in this kit has been soldered, you only need to solder other parts yourself.
It is simple and reliable for the operation of the circuit.
It can display frequency, period, pulse width, duty cycle, MAX./MIN./AVG./Peak-Peak/virtual values.
This boost converter is perfect for the DSO138 oscilloscope kit.
It can be connected directly to the DSO138 motherboard (not included) and makes the DSO138 oscilloscope a portable oscilloscope for better use.

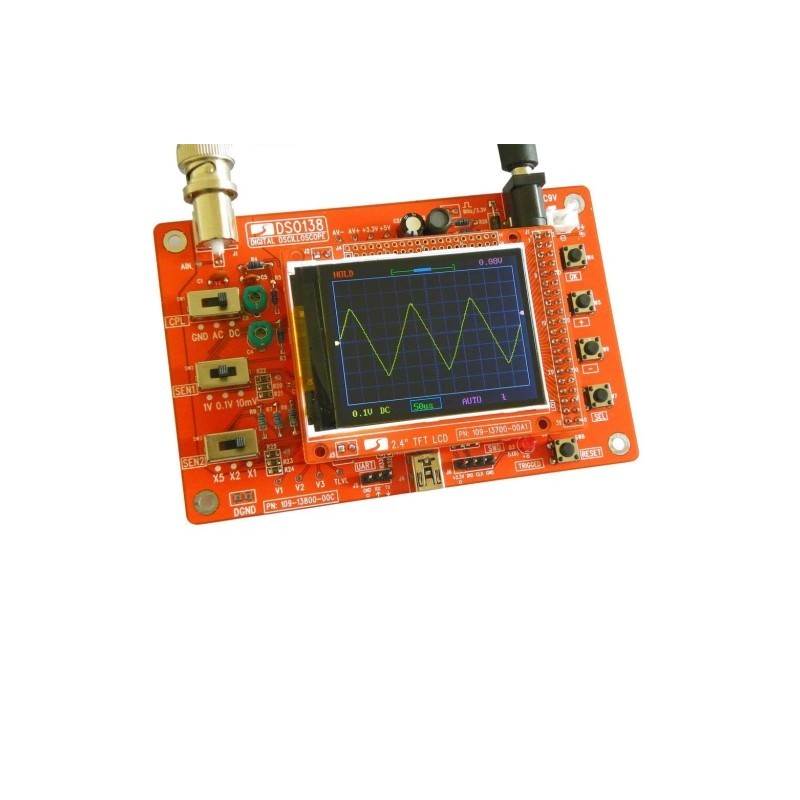

This kit uses ARM Cortex-M3 processor (STM32F103C8) and includes a 2.4-inch color TFT screen, can be used as an ARM test development board.
DSO138 kit
Maximum real-time sampling rate: 1Msps
Accuracy: 12bit
Depth of the sampling bu
