1X (10 db 12 mm-es kapcsoló forgó jeladó D7P8 kulcsos kapcsolóval)

1X(10pcs 12mm switch rotary encoder with key switch D7P8)

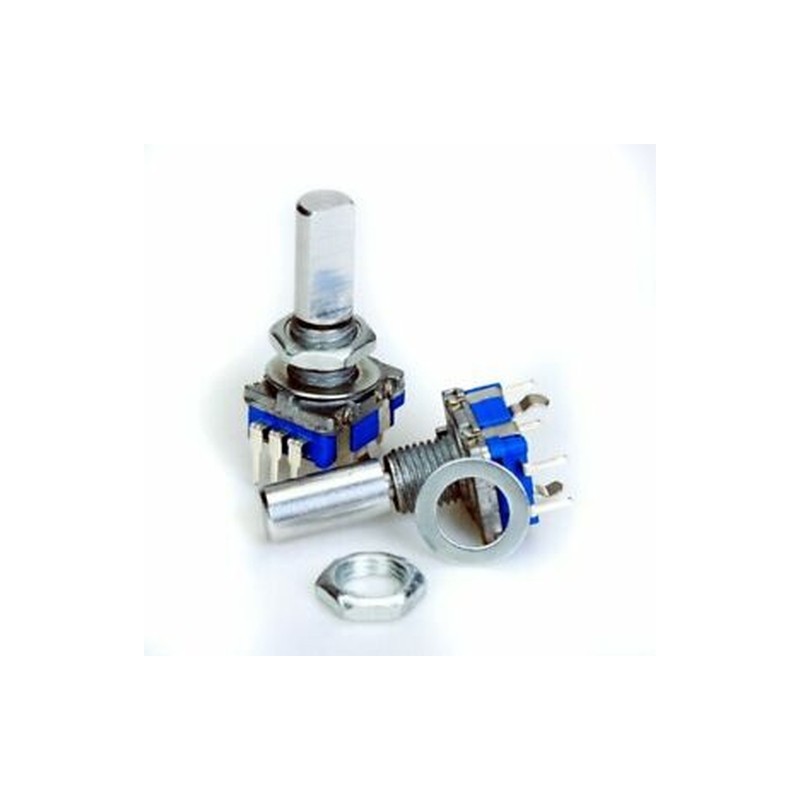

1X(This is the continuous rotary encoder switch
With built in push button (push to operate)
Can be used to capture data as modern in car CD players, for volume control and on / off or data selection via LED or LCD display
Perfect for use with PIC or Atmel minicontrollers
Color: As shown

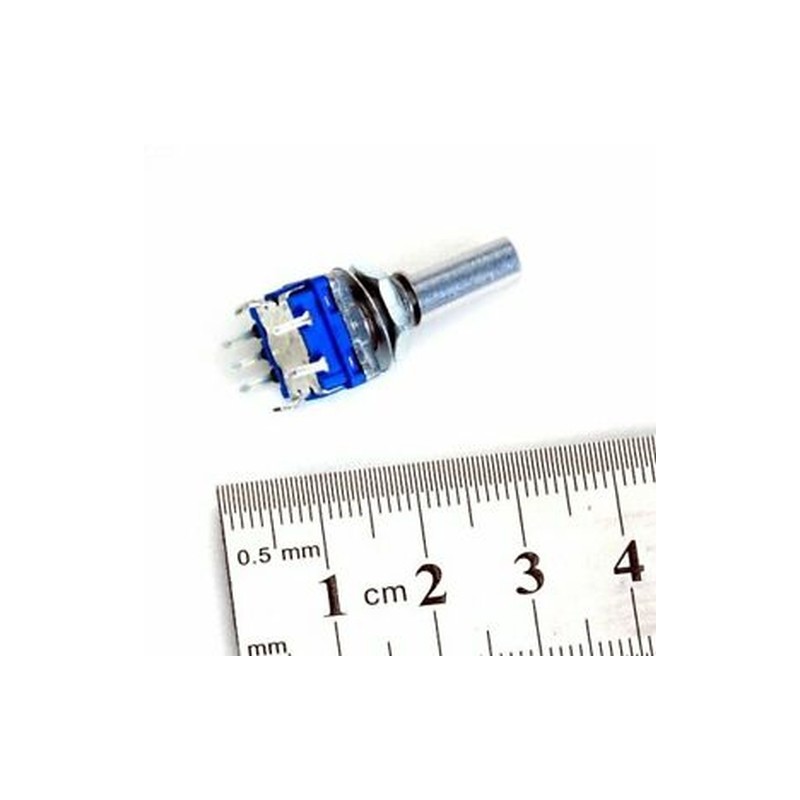

Length of the rotating shaft: Approx. 12mm
Total shaft length: Approx 20mm
diameter of the tree. Approx. 6mm
Size (W x D): Approx. 15 x 11mm
Position: 20
Pulse: 20
Output: Gray code 2 bits
Closed circuit resistance 3 ohms Maximum
Max. Rating: 10mA 5V DC
Operating temperature: -30 to 70 degrees Celsius
Storage temperature: -40 to 85 degrees Celsius
rotation of Life: 30000 cycles minimum
The life of the switch: 20000 cycles minimum
Material: iron, plastic, aluminum

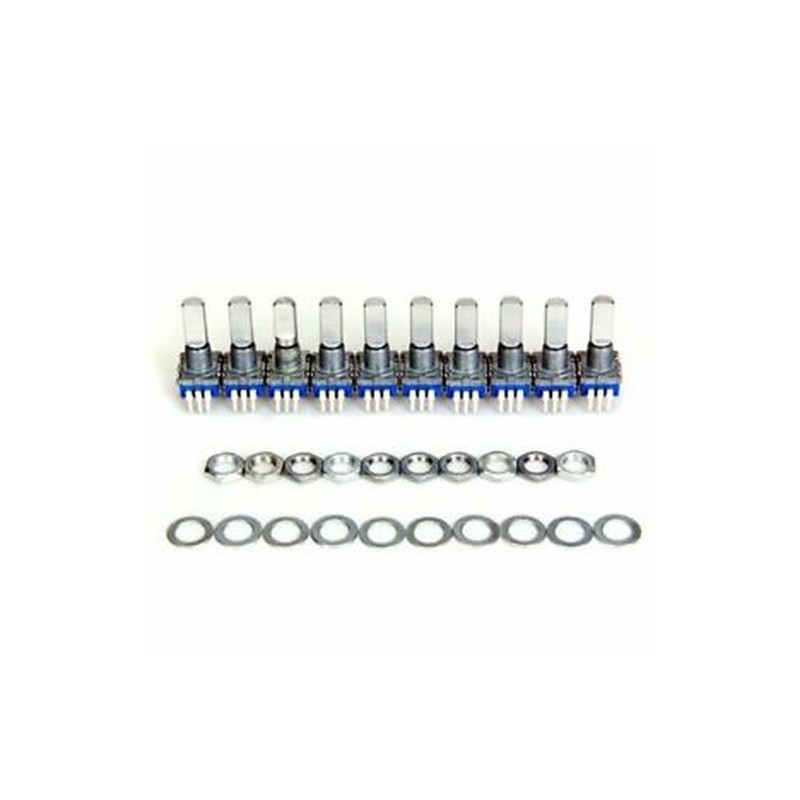

The package includes:
10 x coding switch
10 x nut
10 x joint
Note:Light shooting and different displays may cause the color of the item in the picture a little different from the real thing.The measurement allowed error is /- 1-3 cm.)
