1 db 3D nyomtató RAMPS 1.4 MEGA 2560 A4988 12864 LCD kártyavezérlő a Q5V1-hez

1 set For 3D Printer RAMPS 1.4 MEGA 2560 A4988 12864 LCD Card Controller fo Q5V1

LCD 12864 Graphic Display Intelligent Controller
This smart controller chart contains an SD-Card reader, a rotary encoder and a 128 x 64 dot matrix LCD display.
Size: 25 x 19 x 3cm / 9.84 x 7.48 x 1.18 inch
Material: Metal, plastic; Color: Brown
A number of Arduino expansion boards can be added to the system the main RAMPE board is kept at the top of the stack.
Version 1.4 uses surface mount capacitors and resistors to cover further cases of edge emission.
After connecting this panel to your ramps you do not need your pc pistons, the Smart controller provides power for the SD card. pistons further pistons all actions such as calibration, motion axes can be done by just using the rotary encoder on the Smart controller.
It was designed to fit the entire electronics needed for a Repapap into a small, low-cost package, RAMPE`s interfaces to a mega-compatible Arduino with the powerful platform and has plenty of room for expansion.

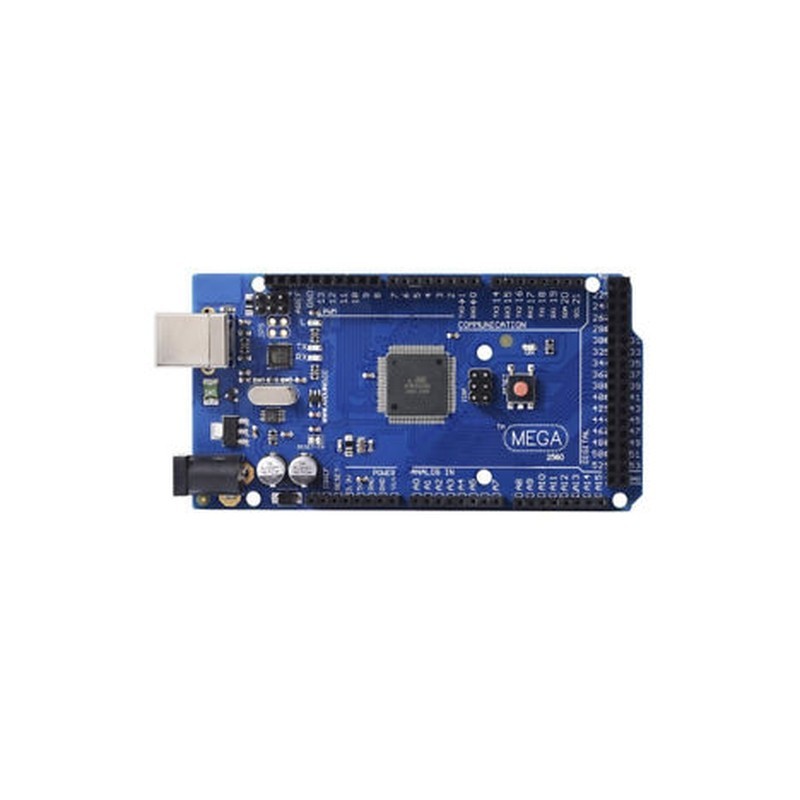

2560 mega control card
The board as a microcircuit core development board for has 54 input / output I / O groups, 16 simulation series with respect to the input side, UART group 4, using the 16 MHz crystal oscillator.
5X A4988 driver module
A4988 stepper motor driver board is a breakout board for Allegro A4988 DMOS Microstepping driver with translator and overcurrent protection.
Adjustable current control allows you to set the maximum 1A output current with a potentiometer

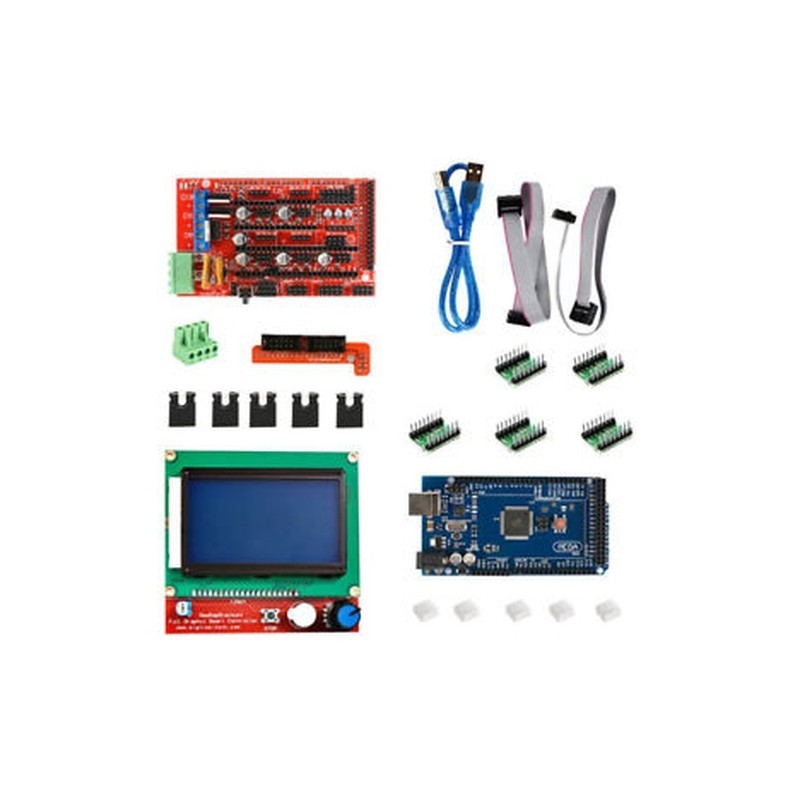

Package includes: 1x 3D RAMPE 1.4 desktop printer controller
1x 2560 mega R3
5x A4988 driver module
1x 12864 LCD graphic display intelligent controller
2x 30 cm cable
1x smart adapter
1x USB cable
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is /- 1-3cm.
