RS232 SP3232 TTL - férfi soros port TTL - RS232 szintű J U2M5 konverziós modul

Features: Maximum features: Typical applications: Main resources: Information includes:RS232 send receiver3V-5.5V power supply, with ESD protection, support flow controlSerial level conversionSP3232, DB9 interface female, UART interfacecolor:blue Material:MetalCircuit schematicRelated PDF dataInstructions for use:VCC: then 3V-5.5VGND: Connect to GNDRxOUT: connected to MCU.RX (signal flow: MCU.RX -- SP3232 -- PC.TX)TxIN: connected to MCU.TX (signal flow: MCU.TX Greater than Greater than SP3232 Greater than Greater than PC.RX)CTS: Connect MCU.CTS (signal flow: MCU.CTS -- SP3232 -- PC.RTS)RTS: connected to MCU.RTS (signal flow: MCU.RTS Greater than Greater than SP3232 Greater than Greater than PC.CTS)Package Contents: 1x serial moduleNote: Light shooting and di...

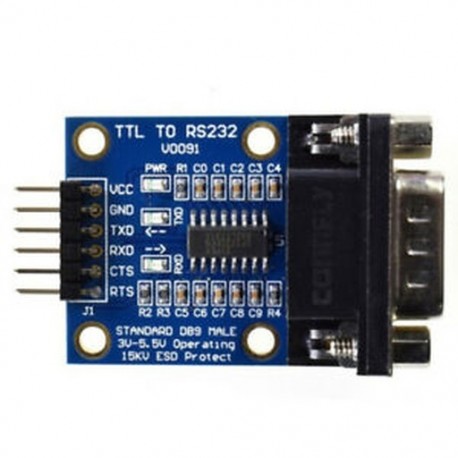

RS232 SP3232 TTL to male serial port TTL to RS232 level conversion module J U2M5
Features: Maximum features: Typical applications: Main resources: Information includes:
RS232 send receiver
3V-5.5V power supply, with ESD protection, support flow control
Serial level conversion
SP3232, DB9 interface female, UART interface
color:blue
Material:Metal
Circuit schematic
Related PDF data
Instructions for use:
VCC: then 3V-5.5V
GND: Connect to GND
RxOUT: connected to MCU.RX (signal flow: MCU.RX -- SP3232 -- PC.TX)
TxIN: connected to MCU.TX (signal flow: MCU.TX Greater than Greater than SP3232 Greater than Greater than PC.RX)
CTS: Connect MCU.CTS (signal flow: MCU.CTS -- SP3232 -- PC.RTS)
RTS: connected to MCU.RTS (signal flow: MCU.RTS Greater than Greater than SP3232 Greater than Greater than PC.CTS)
Package Contents: 1x serial module
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is /- 1-3cm.
