DC5-24V LED csík PIR mozgásérzékelő kapcsoló hím női tápcsatlakozó

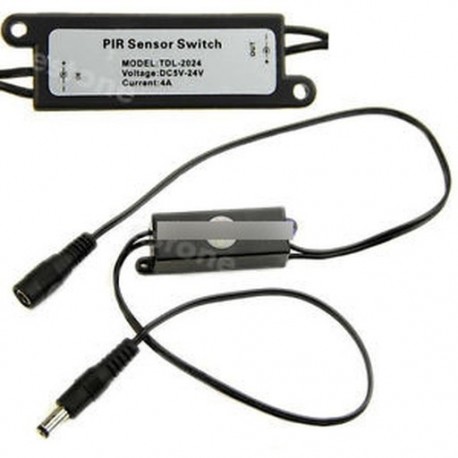

DC5-24V LED Strip PIR Motion Detector Switch Male Female Power Plug ConnectorDescription:DC5-24V MINI Aotomatic PIR Infrared Motion Sensor
100% brand new and high qualityPIR (Passive infrared) Motion sensor is pyroelectric device can detect human movement by detecting infrared ray emitted by human body
Operating voltage is 5~24VDC, and output voltage is equal to input voltage
High sensitivity, easy for installing
Widely used on the Motion-activated lighting, LED strips security system, automatic sensory device and moreSpecifications:
Operating voltage DC 5~24V
Output voltage Equal to input voltage
Load current4A
Static power loss ≤50 uA
Light sensitivityDefault setting 20lux
Detecting range ≤ 110 degrees cone angle
Trigger way continuous triggering
Blockade time0 seconds
Size(L*W*H)50*20*15mm
Male Female 2.1x5.5mm DC Power Male Plug Jack ConnectorSimply & Professional appearance for power cabling
Easier for camera installation, save time and more securer cable connection
5.5mm x 2.1mm Female power plug connectorFemale Jack Description:No electrical tap, No splicing, no crimping, but only a small screw driver.
Easier for camera installation, save time and more securer cable connection.
5.5mm x 2.1mm Female power plug connector.
External diameter of the plug: 5.5mm.
Internal diameter of the plug: 2.1mm.
Dimension: 38mm(L) x 14mm(W) x 13mm(H).Male jack Description:2.1 x 5.5mm CCTV Camera DC Power Plug Connector.
DC Power Plug with plastic construction and strain relief.
This 2.1 x 5.5mm Power Plug features one power connector end DC plug male to another end terminal for CCTV camera connected.
It is a perfect solution for those who want to make custom power cable.
This CCTV Camera DC Power Connector will provide a great connection.
Internal diameter of the plug: 2.1mm
External diameter of the plug: 5.5mm
It measures approx. 1.5" long, 0.55" wide, 0.5" thick.Package included:1*DC5-24V MINI Aotomatic PIR Infrared Motion Sensor
1*Male Female 2.1x5.5mm DC Power Ma
