DC10-50V40A motorvezérlő-szabályozó kapcsoló hátrameneti pwm modul DC motor gov S CQ
283454916372
Új termék
Operating voltage: DC10V-DC50VOutput voltage: linear under loadOutput current: 0-60AContinuous current: 40ASpeed range: 0-100% Module size: 110* 78 * 38mm/4.3 inch *3.0 inch *1.4 inch maximum instantaneous starting current 60A, long-term operating current should be controlled within 40A.Control the forward or reverse direction and the stop of DC motor by switchBuilt in 2 *80A high current relayDifferent working voltage corresponding to different control power as follows:Operating voltage 12V when 12V * 60A = 720W24V when working voltage 24V * 60A = 1440W36V when the working voltage 36V * 60A = 2160W40V when working voltage 40V * 60A = 2400W50V when the working voltage 50V * 60A = 3000Wnotice:Input must be positive and negativeThe input voltage must be the sam...

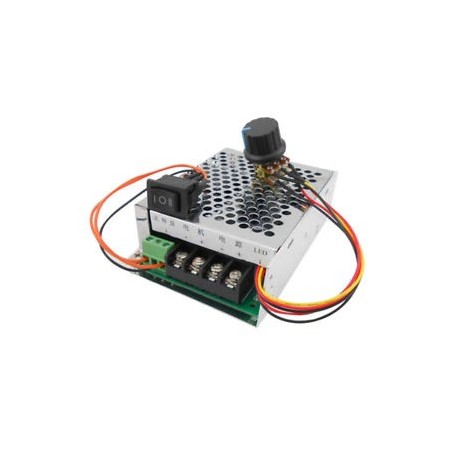

DC10-50V40A motor control governor switch reversing pwm module DC motor governor D4L6
Operating voltage: DC10V-DC50V
Output voltage: linear under load
Output current: 0-60A
Continuous current: 40A
Speed range: 0-100%
Module size: 110* 78 * 38mm/4.3 inch *3.0 inch *1.4 inch
maximum instantaneous starting current 60A, long-term operating current should be controlled within 40A.
Control the forward or reverse direction and the stop of DC motor by switch
Built in 2 *80A high current relay
Different working voltage corresponding to different control power as follows:
Operating voltage 12V when 12V * 60A = 720W
24V when working voltage 24V * 60A = 1440W
36V when the working voltage 36V * 60A = 2160W
40V when working voltage 40V * 60A = 2400W
50V when the working voltage 50V * 60A = 3000W
notice:
Input must be positive and negative
The input voltage must be the same as the rated voltage of the motor
Package Contents: 1 x DC10-50V40A motor control governor switch reversing pwm module
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is /- 1-3cm.
DC10-50V40A motor control governor switch reversing pwm module DC motor governor D4L6
Operating voltage: DC10V-DC50V
Output voltage: linear under load
Output current: 0-60A
Continuous current: 40A
Speed range: 0-100%
Module size: 110* 78 * 38mm/4.3 inch *3.0 inch *1.4 inch
maximum instantaneous starting current 60A, long-term operating current should be controlled within 40A.
Control the forward or reverse direction and the stop of DC motor by switch
Built in 2 *80A high current relay
Different working voltage corresponding to different control power as follows:
Operating voltage 12V when 12V * 60A = 720W
24V when working voltage 24V * 60A = 1440W
36V when the working voltage 36V * 60A = 2160W
40V when working voltage 40V * 60A = 2400W
50V when the working voltage 50V * 60A = 3000W
notice:
Input must be positive and negative
The input voltage must be the same as the rated voltage of the motor
Package Contents: 1 x DC10-50V40A motor control governor switch reversing pwm module
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is /- 1-3cm.
